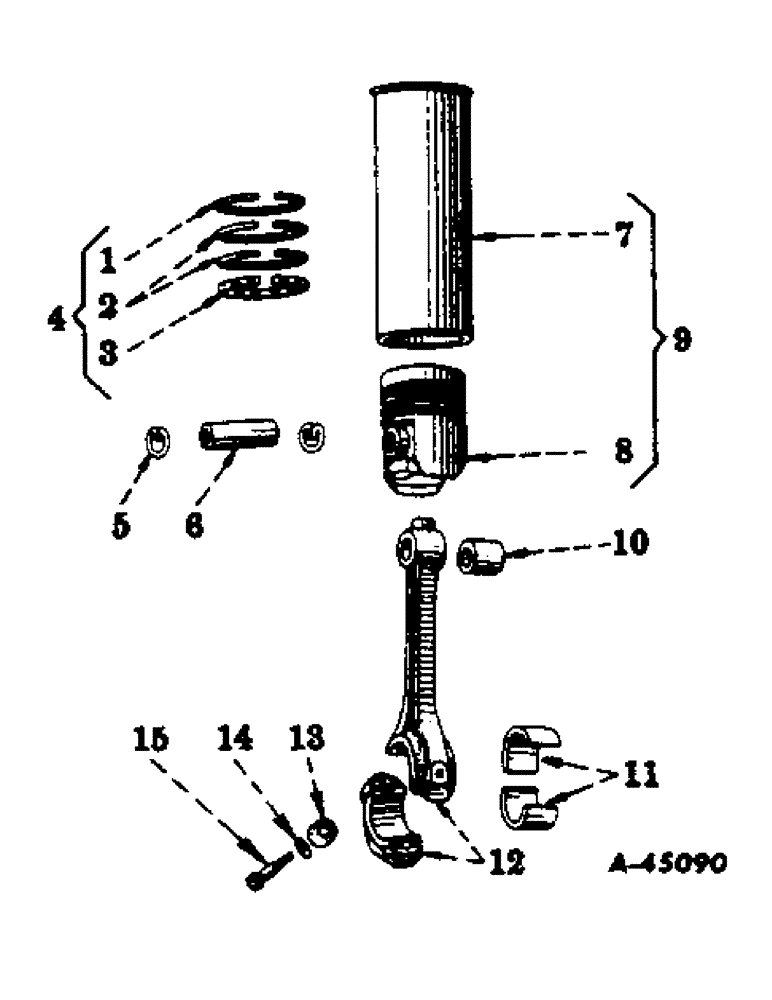

Запчасти Case IH 300 (026) - CARBURETED ENGINE, CONNECTING RODS, CYLINDER SLEEVES AND SLEEVE SETS, FOR C-175 ENGINES (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
366371R1
PISTON RING
RING, piston, compression (Top or first groove) (Gasoline, distillate or Liquefied Petroleum Gas)
4шт.
1
366390R1
RING, piston, compression (Top or first groove) (Kerosene) (See Note)
4шт.
2
366369R1
OIL SEAL
RING, piston, compression (Second and third grooves)
8шт.
3
366372R91
RING, piston, oil regulating (Fourth groove)
4шт.
4
366373R91
PISTON RING SET
RING SET, piston (Distillate, gasoline or Liquefied Petroleum Gas) (Consists of twelve compression rings and four oil regulating rings)
1шт.
4
366391R91
RING SET, piston (Kerosene) (Consists of twelve compression rings and four oil regulating rings) (See Note)
1шт.
5
19517D
SPECIAL RING
RING, piston pin retainer
8шт.
6
70014R1
PIN
piston (Standard)
4шт.
6
70015R1
PIN, piston (.005" oversize)
4шт.
7
SLEEVE, cylinder (Order cylinder sleeve, w/piston and rings, assembly, for proper fuel and altitude)
4шт.
8
PISTON (Order cylinder sleeve, w/piston and rings, assembly, for proper fuel and altitude)
4шт.
9
366356R91
PISTON ASSY.
SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 366357R91) (Gasoline - standard altitude or Liquefied Petroleum Gas)
1шт.
9
366357R91
SLEEVE ASSY
SLEEVE, cylinder, w/piston and rings, assembly (Gasoline - standard altitude or Liquefied Petroleum Gas), Composed Of
4шт.
70014R1
PIN
1шт.
NSS
NOT SOLD SEPARAT
PISTON
1шт.
19517D
SPECIAL RING
RING
2шт.
366371R1
PISTON RING
RING
1шт.
366369R1
OIL SEAL
RING
2шт.
366372R1
RING
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
9
366393R91
SLEEVE ASSY
SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 366400R91) (Gasoline - high altitude) (See Note)
1шт.
9
366400R91
SLEEVE CYLINDER
SLEEVE, cylinder, w/pistons and rings, assembly (Gasoline - high altitude) (See Note), Composed Of
4шт.
70014R1
PIN
1шт.
NSS
NOT SOLD SEPARAT
PISTON
1шт.
19517D
SPECIAL RING
RING
2шт.
366371R1
PISTON RING
RING
1шт.
366369R1
OIL SEAL
RING
2шт.
366372R1
RING
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
9
366375R91
SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 366376R91) (Distillate - standard altitude) (See Note)
1шт.
9
366376R91
SLEEVE, cylinder, w/piston and rings, assembly (Distillate - standard altitude) (See Note)
4шт.
70014R1
PIN
1шт.
NSS
NOT SOLD SEPARAT
PISTON
1шт.
19517D
SPECIAL RING
RING
2шт.
366369R1
OIL SEAL
RING
2шт.
366372R1
RING
1шт.
366371R1
PISTON RING
RING
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
9
366395R91
SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 366406R91) (Distillate - high altitude) (See Note)
1шт.
9
366406R91
SLEEVE, cylinder, w/piston and rings, assembly (Distillate - high altitude) (See Note), Composed Of
4шт.
70014R1
PIN
1шт.
NSS
NOT SOLD SEPARAT
PISTON
1шт.
19517D
SPECIAL RING
RING
2шт.
366369R1
OIL SEAL
RING
2шт.
366371R1
PISTON RING
RING
1шт.
366372R1
RING
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
9
366382R91
SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 366383R91) (Kerosene - standard altitude) (See Note)
1шт.
9
366383R91
SLEEVE, cylinder, w/pistons and rings, assembly (Kerosene - standard altitude) (See Note), Composed Of
4шт.
70014R1
PIN
1шт.
NSS
NOT SOLD SEPARAT
PISTON
1шт.
19517D
SPECIAL RING
RING
2шт.
366369R1
OIL SEAL
RING
3шт.
366372R1
RING
1шт.
366390R1
RING
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
9
366397R91
SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 366412R91) (Kerosene - high altitude) (See Note)
1шт.
9
366412R91
SLEEVE, cylinder, w/piston and rings, assembly (Kerosene - high altitude) (See Note), Composed Of
4шт.
70014R1
PIN
1шт.
NSS
NOT SOLD SEPARAT
PISTON
1шт.
19517D
SPECIAL RING
RING
2шт.
366369R1
OIL SEAL
RING
2шт.
366372R1
RING
1шт.
366390R1
RING
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
10
364913R1
BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L
piston pin
4шт.
11
357990R11
BEARING ASSY
BEARING, connecting rod (2 halves) (Standard)
4шт.
11
357992R11
BEARING LINER
BEARING, connecting rod (2 halves) (.002" undersize)
4шт.
11
360200R11
BEARING, connecting rod (2 halves) (.003" undersize)
4шт.
11
357991R11
CRANKSHAFT BEARING
BEARING, connecting rod (2 halves) (.030" undersize)
4шт.
11
357993R11
BEARING, connecting rod (2 halves) (.032" undersize)
4шт.
11
367879R91
KIT
BEARING SET, connecting rod (Standard) (Consists of four bearing, 357990R11)
1шт.
12
364912R11
ROD, connecting, assembly, Composed Of
4шт.
63119D
BOLT,Hex, 3/8" - 24 x 1 25/32"
2шт.
364913R1
BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L
1шт.
43786DB
CAP (NSS)
1шт.
47499DB
LOCK
2шт.
364912R1
ROD (NSS)
1шт.
63115D
WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk
2шт.
13
47499DB
LOCK
connecting rod bolt
8шт.
14
63115D
WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk
connecting rod bolt
8шт.
15
63119D
BOLT,Hex, 3/8" - 24 x 1 25/32"
connecting rod
8шт.
Выбрано товаров: 82
