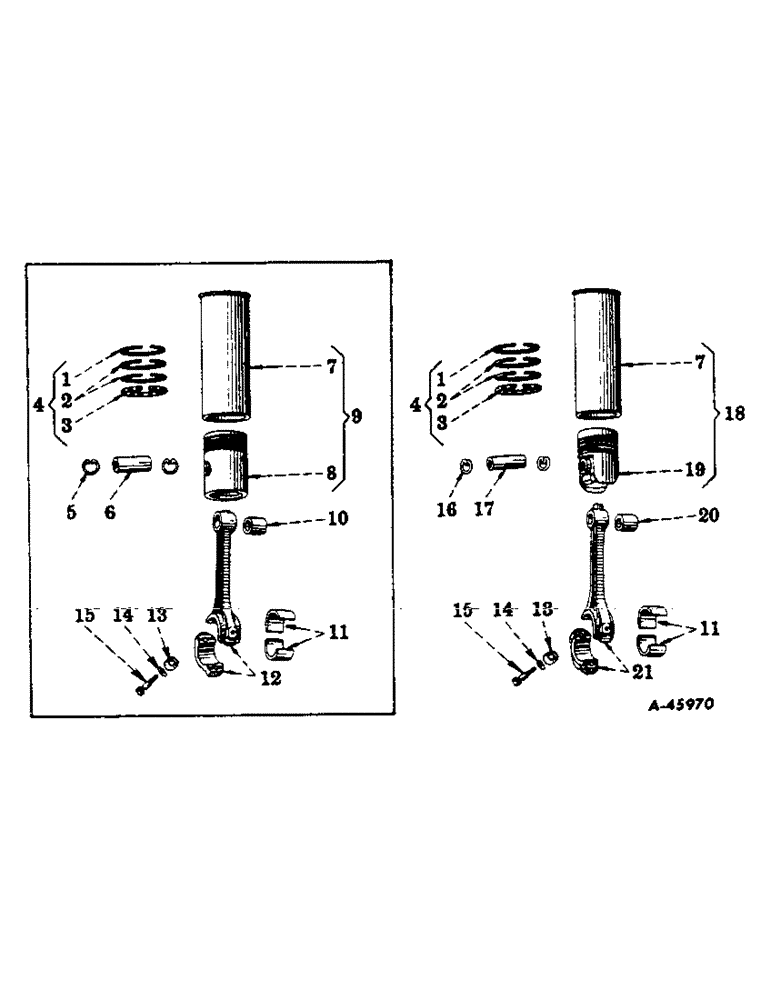

Запчасти Case IH 300 (022) - CARBURETED ENGINE, CONNECTING RODS, CYLINDER SLEEVES AND SLEEVE SETS, FOR C-169 ENGINES (01) - ENGINE

1

362734R1

RING

compression, tapered, piston (Top groove) (Perfect Circle) (Optional with 365254R1)

4шт.

1

365254R1

RING

compression, tapered, piston (Top groove) (Wilkening) (Optional with 362734R1) (For gasoline or Liquefied Petroleum Gas burning engines)

4шт.

1

363250R1

RING, compression, plain, piston (Top groove) (Perfect Circle) (Optional with 365257R1) (For distillate burning engines)

4шт.

1

365257R1

RING, compression, plain, piston (Top groove) (Wilkening) (Optional with 363250R1) (For Distillate burning engines)

4шт.

2

362735R1

RING, compression, piston (Second and third grooves) (Perfect Circle) (Optional with 365255R1)

8шт.

2

365255R1

RING, compression, piston (Second and third grooves) (Wilkening) (Optional with 362735R1)

8шт.

3

362736R1

RING, oil piston (Fourth groove) (Perfect Circle) (Optional with 365256R1)

4шт.

3

365256R1

RING, oil regulating, piston (Fourth groove) (Wilkening) (Optional with 362736R1)

4шт.

4

363754R91

RING

SET, piston (Perfect Circle) (Consists of twelve compressions rings and four oil regulating rings) (For gasoline or Liquefied Petroleum Gas burning engines)

1шт.

4

363755R91

RING SET, piston (Consists of twelve compression rings and four oil regulating rings) (For distillate burning engines) (See Note)

1шт.

5

16014DA

RING

piston pin retainer (S/N C-169, Serial Range: 9501-48044)

8шт.

6

43793D

PIN

piston (Standard) (S/N C-169, Serial Range: 9501-48044)

4шт.

6

53135D

PIN, piston (.005" oversize) (S/N C-169, Serial Range: 9501-48044)

4шт.

7

SLEEVE, cylinder (Order cylinder sleeve, w/piston and rings, assembly, for proper fuel and altitude)

4шт.

8

PISTON (Order cylinder sleeve, w/piston and rings, assembly, for proper fuel and altitude) (S/N C-169, Serial Range: 9501-48044)

4шт.

9

362741R91

SLEEVE ASSY

SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 362740R91) (Below 5000 ft. altitude) (S/N C-169, Serial Range: 9501-48044)

1шт.

9

362740R91

PISTON

SLEEVE, cylinder, w/piston and rings, assembly (Below 5000 ft. altitude) (S/N C-169 9501 to 48044), Composed Of

4шт.

43793D

PIN

1шт.

362732R1

PISTON (NSS)

1шт.

16014DA

RING

2шт.

362734R1

RING

1шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

9

363327R91

SLEEVE ASSY

SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 363334R91) (5000 ft. altitude) (See Note) (S/N C-169, Serial Range: 9501-48044)

1шт.

9

363334R91

SLEEVE ASSY

SLEEVE, cylinder, w/piston and rings, assembly (5000 ft. altitude) (See Note) (S/N C-169 9501 to 48044), Composed Of

4шт.

43793D

PIN

1шт.

363343R1

PISTON (NSS)

1шт.

16014DA

RING

2шт.

362734R1

RING

1шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

9

363331R91

SLEEVE ASSY

SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 363336R91) (8000 ft. altitude) (See Note) (S/N C-169, Serial Range: 9501-48044)

1шт.

9

363336R91

SLEEVE, cylinder, w/piston and rings, assembly (8000 ft. altitude) (See Note) (S/N C-169 9501 to 48044), Composed Of

4шт.

43793D

PIN

1шт.

363349R1

PISTON (NSS)

1шт.

16014DA

RING

2шт.

362734R1

RING

1шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

10

355454R1

BUSHING, piston pin (S/N C-169, Serial Range: 9501-48044)

4шт.

11

357990R11

BEARING ASSY

BEARING, connecting rod (2 halves) (Standard)

4шт.

11

357992R11

BEARING LINER

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

11

360200R11

BEARING, connecting rod (2 halves) (.003" undersize)

4шт.

11

357991R11

CRANKSHAFT BEARING

BEARING, connecting rod (2 halves) (.030" undersize)

4шт.

11

357993R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

11

367879R91

KIT

BEARING SET, connecting rod (Standard) (Consists of four bearing, 357990R11)

1шт.

12

43785DDXA

ROD, connecting assembly (S/N C-169 9501 to 48044), Composed Of

4шт.

63119D

BOLT,Hex, 3/8" - 24 x 1 25/32"

2шт.

355454R1

BUSHING

1шт.

43786DB

CAP (NSS)

1шт.

47499DB

LOCK

2шт.

43785DD

ROD (NSS)

1шт.

63115D

WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk

2шт.

13

47499DB

LOCK

connecting rod bolt

8шт.

14

63115D

WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk

connecting rod bolt

8шт.

15

63119D

BOLT,Hex, 3/8" - 24 x 1 25/32"

connecting rod

8шт.

16

19517D

SPECIAL RING

RING, piston pin retainer (S/N C-169 48045 up)

8шт.

17

70014R1

PIN

piston (Standard) (S/N C-169 48045 up)

4шт.

17

70015R1

PIN, piston (.005" oversize) (S/N C-169 48045 up)

4шт.

18

364915R91

SLEEVE ASSY

SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 364914R91) (Gasoline below 5000 ft. altitude or Liquefied Petroleum Gas) (S/N C-169 48045 up)

1шт.

18

364914R91

SLEEVE ASSY

SLEEVE, cylinder w/piston and rings, assembly (Gasoline below 5000 ft. altitude or Liquefied Petroleum Gas) (S/N C-169 48045 up), Composed Of

4шт.

70014R1

PIN

1шт.

364918R1

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

362734R1

RING

1шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

18

364981R91

SLEEVE ASSY

SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 364988R91) (Gasoline 5000 ft. altitude) (See Note) (S/N C-169 48045 up)

1шт.

18

364988R91

SLEEVE ASSY

SLEEVE, cylinder, w/piston and rings, assembly (Gasoline 5000 ft. altitude) (See Note) (S/N C-169 48045 up), Composed Of

4шт.

70014R1

PIN

1шт.

364997R1

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

362734R1

RING

1шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

18

364985R91

SLEEVE ASSY

SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 364990R91) (Gasoline 8000 ft. altitude) (See Note) (S/N C-169 48045 up)

1шт.

18

364990R91

SLEEVE ASSY

SLEEVE, cylinder, w/piston and rings, assembly (Gasoline 8000 ft. altitude) (See Note) (S/N C-169 48045 up), Composed Of

4шт.

70014R1

PIN

1шт.

365203R1

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

362734R1

RING

1шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

18

365216R91

SLEEVE SET, crankcase (Consists of four sleeves w/pistons and rings, 365215R91) (Distillate - below 5000 ft. altitude) (See Note) (S/N C-169 48045 up)

1шт.

18

365215R91

SLEEVE, cylinder, w/piston and rings, assembly (Distillate - below 5000 ft. altitude) (See Note) (S/N C-169 48045 up), Composed Of

4шт.

70014R1

PIN

1шт.

365213R1

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

363250R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

18

364983R91

SLEEVE SET, crankcase (Consists of four sleeves, w/pistons and rings, 364989R91) (Distillate - 5000 ft. altitude) (See Note) (S/N C-169 48045 up)

1шт.

18

364989R91

SLEEVE, cylinder, w/piston and rings, assembly (Distillate - 5000 ft. altitude) (See Note) (S/N C-169 48045 up), Composed Of

4шт.

70014R1

PIN

1шт.

365200R1

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

362735R1

RING

2шт.

362736R1

RING

1шт.

363250R1

RING

1шт.

362738R1

SLEEVE (NSS)

1шт.

19

PISTON, (Order cylinder sleeve, w/piston and rings, assembly for proper fuel and altitude) (S/N C-169 48045 up)

4шт.

20

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin (S/N C-169 48045 up)

4шт.

21

364912R11

ROD, connecting, assembly (S/N C-169 48045 up), Composed Of

1шт.

63119D

BOLT,Hex, 3/8" - 24 x 1 25/32"

2шт.

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

1шт.

43786DB

CAP

1шт.

47499DB

LOCK

2шт.

364912R1

ROD (NSS)

1шт.

63115D

WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk

2шт.
