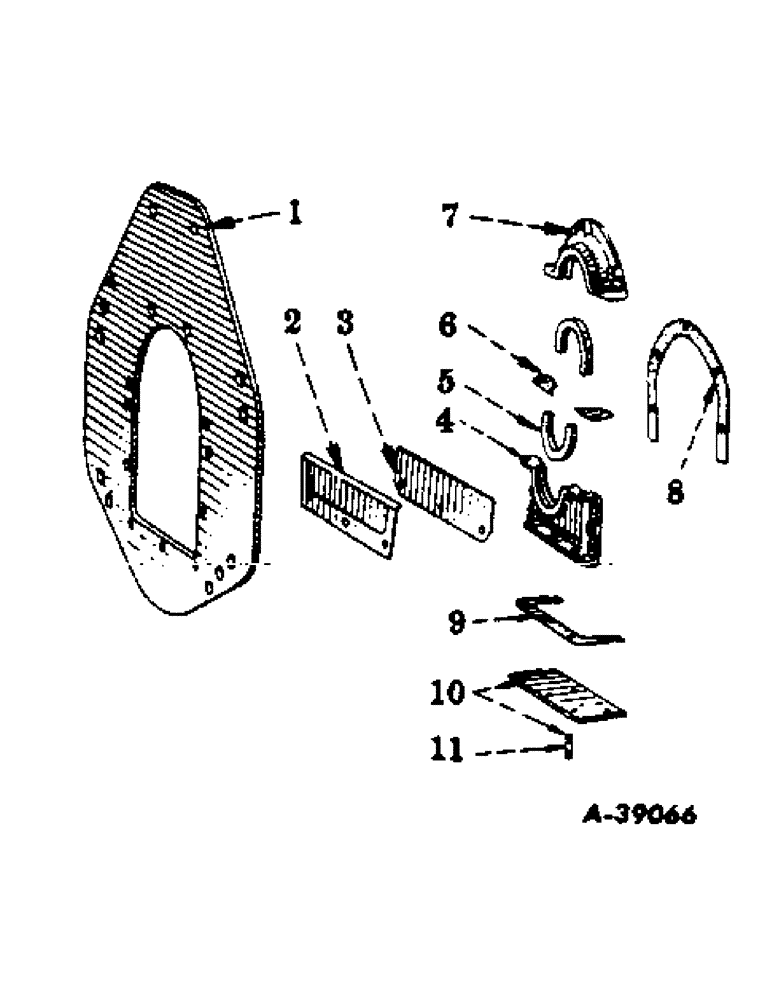

Запчасти Case IH 300 (021) - CARBURETED ENGINE, REAR ENGINE SUPPORT AND CRANKSHAFT REAR OIL SEAL (01) - ENGINE

1

48623D

SUPPORT, rear engine

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

6шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2" (To clutch housing)

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

2

45399D

GASKET

GASKET, crankcase rear dust seal

1шт.

3

45398D

DUST SEAL, crankcase rear

1шт.

181333

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

6508DA

RING, SNAP

RETAINER, crankshaft rear oil seal, lower

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

45014D

OIL SEAL

FELT, crankshaft rear oil seal

2шт.

6

45013D

GASKET

crankshaft rear oil seal retainer, center

2шт.

7

6190DA

PLATE

RETAINER, crankshaft rear oil seal, upper

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

45012DA

GASKET

crankshaft rear oil seal retainer

1шт.

9

46959D

GASKET

crankshaft rear oil seal retainer plate

1шт.

10

46958DX

PLATE

crankshaft rear oil seal retainer, w/stud, 50809DA

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

50809DA

STUD, crankcase, oil pan

1шт.
