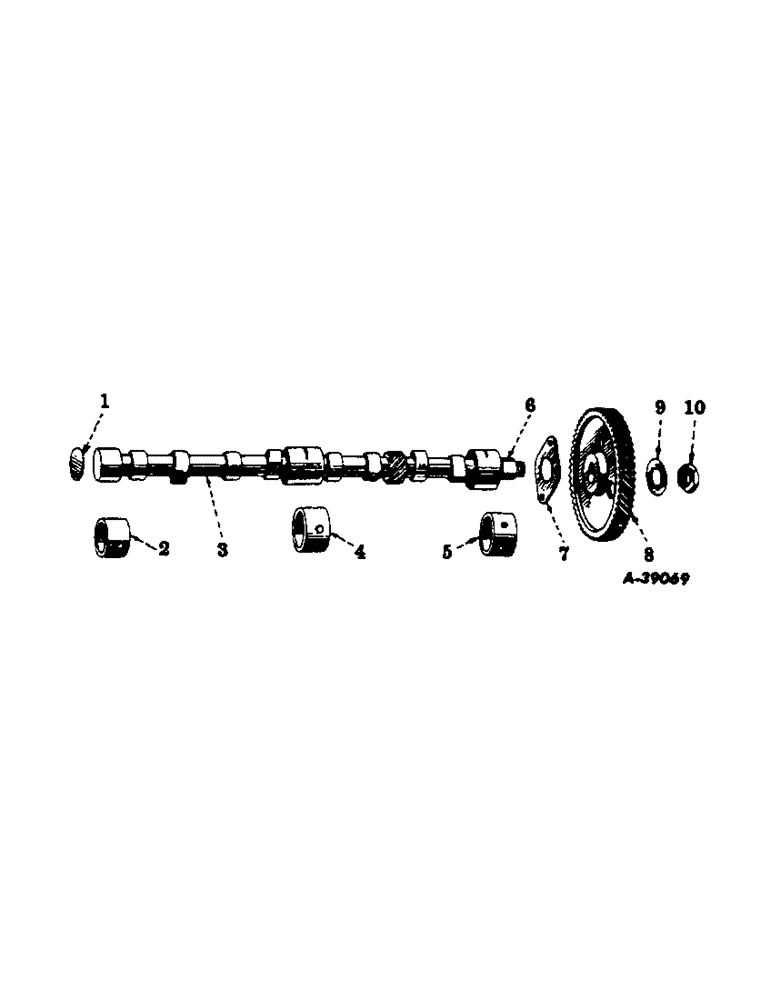

Запчасти Case IH 300 (020) - CARBURETED ENGINE, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

172576

PLUG,Exp, 1 5/8"

expansion, 1-5/8" (Camshaft rear bearing)

1шт.

2

53421DA

CAMSHAFT BEARING,1.504" OD

camshaft rear (Will work for (NSS) 45022DA)

1шт.

3

49900DDX

CAMSHAFT, w/key, 127559, and nut, 368598R1

1шт.

4

53420DA

CAMSHAFT BEARING,1.9415" OD x 1.9375"

camshaft, center (Will work for (NSS) 45021DA)

1шт.

5

53419DB

CAMSHAFT BEARING,1.3125" OD x 2.0625"

BEARING, camshaft, front (Will work for (NSS) 45020DB)

1шт.

6

127559

TAPE

Woodruff, No. 91

1шт.

7

43249D

PLATE

thrust, camshaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

6664DB

GEAR

camshaft (48 teeth)

1шт.

9

16025D

SHIM

LOCK, camshaft gear nut (C-169 engines) (S/N C-175, Serial Range: 501-9606)

1шт.

10

V84199

NUT,1"-14, Thin

camshaft gear (RH thd.) (S/N C-175 501 to 9606)

1шт.

10

368598R1

NUT

camshaft gear (LH thd.) (S/N C-175 9607 up)

1шт.
