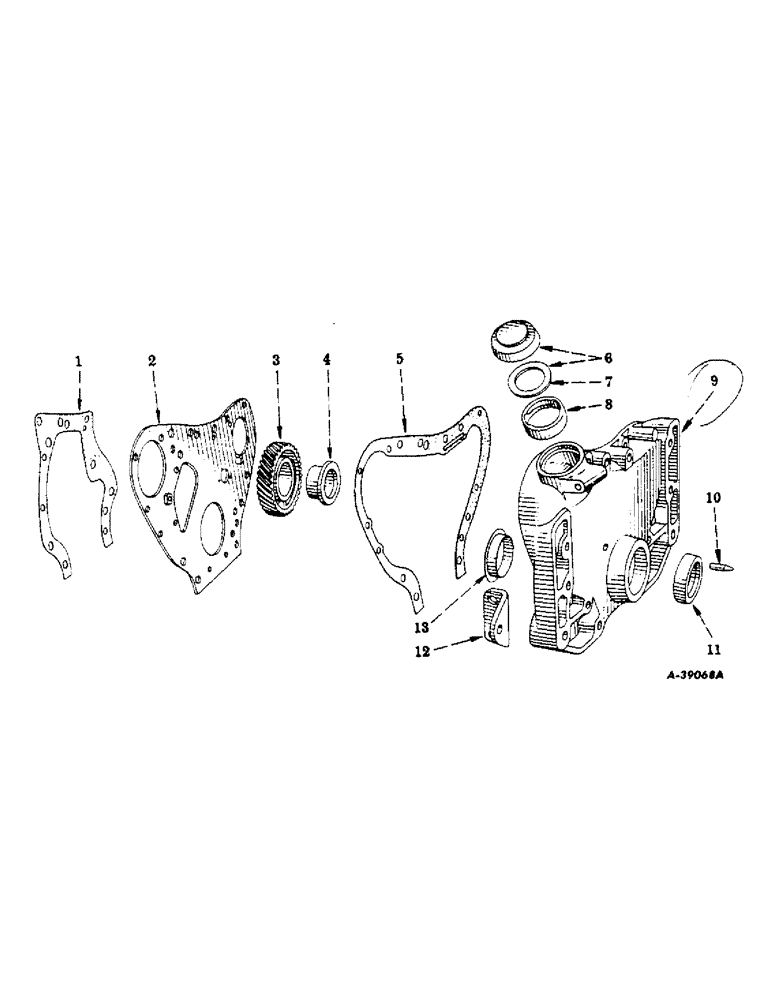

Запчасти Case IH 300 (019) - CARBURETED ENGINE, CRANKCASE FRONT COVER, SUPPORT BRACKETS & IDLER GEAR (01) - ENGINE

1

362240R2

GASKET

crankcase front plate

1шт.

2

352167R21

PLATE, crankcase, front

1шт.

354489R1

LOCK

crankcase front plate screw

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

6238DX

GEAR

idler, w/bushing (35 teeth)

1шт.

4

6239DX

SHAFT, idler gear, w/pin

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

361557R1

GASKET

crankcase front cover

1шт.

6

361559R91

CAP

oil filler, w/gasket, 363862R1 (Optional with 362198R91)

1шт.

6

362198R91

CAP, oil filler, w/gasket, 363862R1 (Optional with 361559R91)

1шт.

7

363862R1

GASKET, oil filler cap

1шт.

8

361558R1

NECK, oil filler

1шт.

9

366350R11

COVER, crankcase front, assembly (Will work for 361556R11), Composed Of

1шт.

366350R1

COVER (NSS)

1шт.

45010D

DEFLECTOR

1шт.

361558R1

NECK

1шт.

53888D

OIL SEAL

OIL SEAL

1шт.

48587D

POINTER

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

12475R1

SCREW, cap, hex-hd., 1/2-13NC x 2-7/8"

3шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

3шт.

54158D

STUD, crankcase front cover (Illustrated with "Crankcase And Related Parts")

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

10

48587D

POINTER, timing

1шт.

11

53888D

OIL SEAL

OIL SEAL, crankshaft, front

1шт.

12

362238R1

BRACKET, crankcase front cover support

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

45010D

DEFLECTOR, oil, crankshaft, front

1шт.
