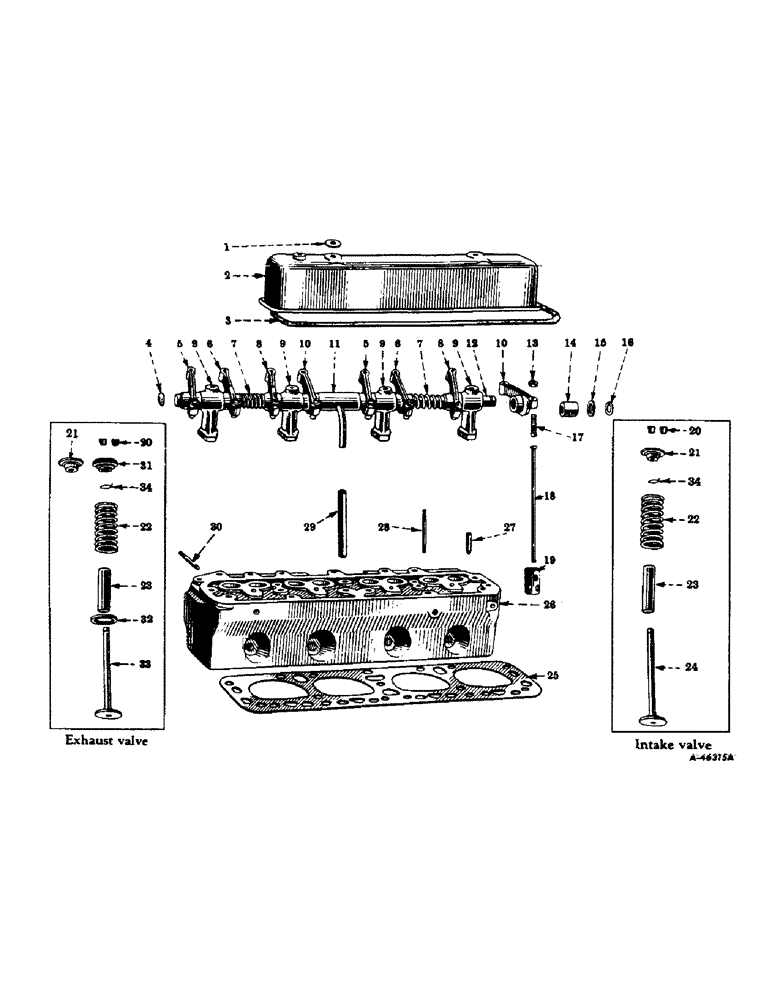

Запчасти Case IH 300 (012) - CARBURETED ENGINE, CYLINDER HEAD, VALVES, TAPPETS AND LEVERS (01) - ENGINE

1

62866D

WASHER,5/64" Thk x 13/32" ID

valve cover stud nut (Optional with 357374R1)

2шт.

1

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve cover stud nut (Optional with 62866D)

2шт.

2

363356R91

COVER, valve, w/flange and plug

1шт.

103026

NUT,3/8"-24, G5

2шт.

3

43976DB

GASKET

valve cover

1шт.

4

172528

PLUG,Exp, 9/16"

expansion, 9/16" (Valve lever shaft end)

2шт.

5

355455R91

LEVER

exhaust valve, L.H. (Welded type), w/insert (Will work for 43917DAX)

2шт.

5

355671R92

ROCKER

LEVER, exhaust valve, L.H., 355455R91, w/nut, 133093R1 and screw, 16067DA (Will work for 43917DAYA)

2шт.

6

355456R91

LEVER

intake valve, R.H. (Welded type), w/insert (Will work for 43916DAX)

2шт.

6

355672R92

LEVER

intake valve, R.H. 355456R91, w/nut, 133093R1 and screw, 16067DA (Will work for 43916DAYA)

2шт.

7

24541D

SPRING

valve lever

2шт.

8

355455R91

LEVER

intake lever, L.H. (Welded type), w/insert (Will work for 43915DAX)

2шт.

8

355671R92

ROCKER

LEVER, intake valve, L.H., 355455R91 w/nut, 133093R1 and screw, 16067DA (Will work for 43915DAYA)

2шт.

9

45036DB

BRACKET, valve lever

4шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/4"

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

4шт.

10

355456R91

LEVER

exhaust valve, R.H. (Welded type), w/insert (Will work for 43918DAX)

2шт.

10

355672R92

LEVER

exhaust valve, R.H., 355456R91, w/nut, 133093R1 and screw, 16067DA (Will work for 43918DAYA)

2шт.

11

43977DAX

SLEEVE, valve lever shaft oil, w/tube

1шт.

12

64888D

SHAFT, valve lever (Includes two shaft, 43914DBX and sleeve, 43977DAX)

1шт.

12

43914DBX

SHAFT, valve lever, w/plug, 172528

2шт.

13

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

14

24564DA

BUSHING

valve lever (Used with forged type valve lever arms)

8шт.

15

43374D

SPRING WASHER

valve lever shaft spring

8шт.

16

43375D

RING

snap, valve lever shaft

2шт.

17

16067DA

ADJUSTMENT SCREW,3/8" - 24

adjusting, valve lever

8шт.

18

48366D

ROD

valve push (Optional with 355073R91)

8шт.

18

355073R91

ROD, valve push (Optional with 48366D)

8шт.

19

35645H

TAPPET, valve (Optional with 353233R1)

8шт.

19

353233R1

TAPPET, valve (Optional with 35645H)

8шт.

20

42026D

KEY

valve spring seat (Also for kerosene burning engines)

16шт.

21

42040D

CUP

SEAT, valve spring, upper (Intake-for gasoline burning engines)

4шт.

42040D

CUP

SEAT, valve spring, upper (Intake and exhaust-for distillate, kerosene or Liquefied Petroleum Gas burning engines)

8шт.

22

358197R1

SPRING

valve

8шт.

23

8049DR

GUIDE

valve (For gasoline or Liquefied Petroleum Gas burning engines)

8шт.

23

358638R1

GUIDE, valve (For distillate or kerosene burning engines)

8шт.

24

43912D

VALVE

intake (For distillate burning engines)

4шт.

24

362534R1

VALVE

intake (For gasoline burning engines)

4шт.

24

363786R1

VALVE

intake (For Liquefied Petroleum Gas burning engines)

4шт.

24

358641R1

VALVE, intake (For kerosene burning engines)

4шт.

25

362746R2

GASKET

cylinder head (Also for kerosene burning engines)

1шт.

26

362533R11

HEAD, cylinder, assembly (For gasoline burning engines), Composed Of

1шт.

8049DR

GUIDE

8шт.

362533R1

HEAD (NSS)

1шт.

362532R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

4шт.

26

364439R91

HEAD, cylinder w/valves, assembly (For gasoline burning engines), Composed Of

1шт.

362533R11

HEAD

1шт.

42026D

KEY

16шт.

358198R91

ROTATOR

ROTOCAP

4шт.

42040D

CUP

SEAT

4шт.

358197R1

SPRING

8шт.

362534R1

VALVE

4шт.

362535R1

VALVE

4шт.

26

364017R21

HEAD, cylinder, assembly (For Liquefied Petroleum Gas burning engines), Composed Of

1шт.

8049DR

GUIDE

8шт.

364017R2

HEAD (NSS)

1шт.

362532R1

INSERT

4шт.

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE

1шт.

45566D

STUD

2шт.

64459D

STUD

6шт.

26

364674R92

HEAD, cylinder w/valves, assembly (For Liquefied Petroleum Gas burning engines), Composed Of

1шт.

364017R21

HEAD

1шт.

42026D

KEY

16шт.

42040D

CUP

SEAT

8шт.

358197R1

SPRING

8шт.

363786R1

VALVE

4шт.

363787R1

VALVE

4шт.

26

358635R93

HEAD, cylinder, w/valves, assembly (For distillate burning engines), Composed Of

1шт.

363257R21

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

358197R1

SPRING

8шт.

43912D

VALVE

4шт.

43913DA

VALVE

4шт.

26

363257R21

HEAD, cylinder, assembly (For distillate burning engines), Composed Of

1шт.

358638R1

GUIDE

8шт.

363527R2

HEAD (NSS)

1шт.

357898R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

4шт.

26

358639R93

HEAD, cylinder, w/valves, assembly (Kerosene), Composed Of

1шт.

363258R21

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

358197R1

SPRING

8шт.

358641R1

VALVE

4шт.

358642R1

VALVE

4шт.

26

363258R21

HEAD, cylinder, assembly (Kerosene), Composed Of

1шт.

358638R1

GUIDE

8шт.

363258R2

HEAD (NSS)

1шт.

357898R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

4шт.

1763Y

NUT

cylinder head stud

16шт.

143997

PLUG

pipe, sq-socket, stl., 1/4" (Used to plug cylinder head breather hole)

1шт.

45009D

STUD, cylinder head, short (5-15/16") (11 used for Liquefied Petroleum Gas burning engines)

13шт.

48939DA

STUD

cylinder head, long (6-1/8") (Longer for washer on cylinder lead stud sleeve)

1шт.

362237R1

STUD, cylinder lead (6-1/2" long) (Extra long for mounting the air cleaner and Liquefied Petroleum Gas fuel tank bracket) (4 used for Liquefied Petroleum Gas burning engines)

2шт.

52823D

WASHER

cylinder head stud

1шт.

27

361478R1

PIPE, breather, cylinder head

1шт.

28

45566D

STUD, valve cover (For distillate or kerosene burning engines)

2шт.

29

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE, cylinder head stud

1шт.

30

63459D

STUD

manifold to cylinder head

6шт.

31

358198R91

ROTATOR

ROTOCAP, exhaust valve (For gasoline burning engines)

4шт.

32

357898R1

INSERT, exhaust valve seat (For distillate or kerosene burning engines)

4шт.

32

362532R1

INSERT, exhaust valve seat (For gasoline or Liquefied Petroleum Gas burning engines)

4шт.

33

43913DA

VALVE

exhaust (For distillate burning engines)

4шт.

33

362535R1

VALVE

exhaust (For gasoline burning engines)

4шт.

33

358642R1

VALVE, exhaust (For kerosene burning engines)

4шт.

33

363787R1

VALVE

exhaust (For Liquefied Petroleum Gas burning engines)

4шт.

34

42098D

RETAINER

valve stem (For distillate or kerosene burning engines)

8шт.

363496R92

GASKET

SET, engine (For components see "Package Assorted Gaskets")

1шт.

363495R92

KIT

GASKET SET, valve grinding (For components see "Package Assorted Gaskets")

1шт.
