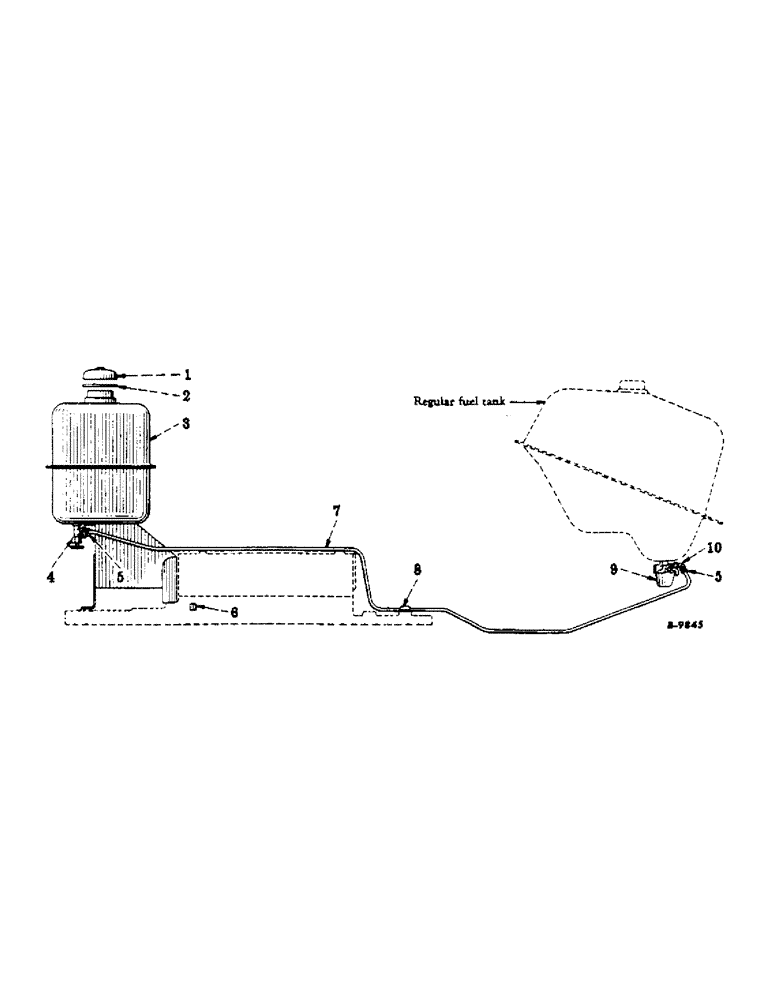

Запчасти Case IH 300 (373) - ATTACHMENTS, AUXILIARY FUEL TANK, SPECIAL, FOR GASOLINE BURNING ENGINE TRACTORS Attachments

366824R91

AUXILIARY FUEL TANK PARTS ACCESSORY (For gasoline burning engine tractors (Note B)

1шт.

1

23995DC

FILLER CAP

CAP, fuel tank filler, w/gasket, 23977DB

1шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

366544R91

TANK, fuel, auxiliary, w/brackets, cap, 23995DC and toolbox

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3" (For front brackets on tractors without rockshaft) (Note A)

2шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 7/8" (For rear brackets on tractors without rockshaft)

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

(For rear brackets on tractors equipped with rockshaft) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

12387R1

SCREW,Hex, 7/16" - 14 x 3 5/8"

cap, hex-hd., 7/16-14NC x 3-5/8" (For front brackets on tractors equipped with rockshaft)

2шт.

4

55474D

VALVE, fuel shut-off, w/nut, 29899D

1шт.

5

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" OD tubing

2шт.

6

41174D

SPACER, fuel tank support (Used under front brackets on tractors equipped with rockshaft)

2шт.

7

366688R11

PIPE, fuel, auxiliary fuel tank to strainer, w/two nuts, 29899D

1шт.

8

56276D

CLIP, fuel pipe (On rear frame cover attaching screw)

1шт.

9

366134R91

STRAINER, fuel, assembly (For components see list of parts under details of "Fuel Strainer")

1шт.

10

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

male pipe, hi-duty tube fitting, 90 degrees, brs., 5/16" OD tubing

1шт.

10

24847HX

ELBOW, 24847H, w/nut, 29899D

1шт.
