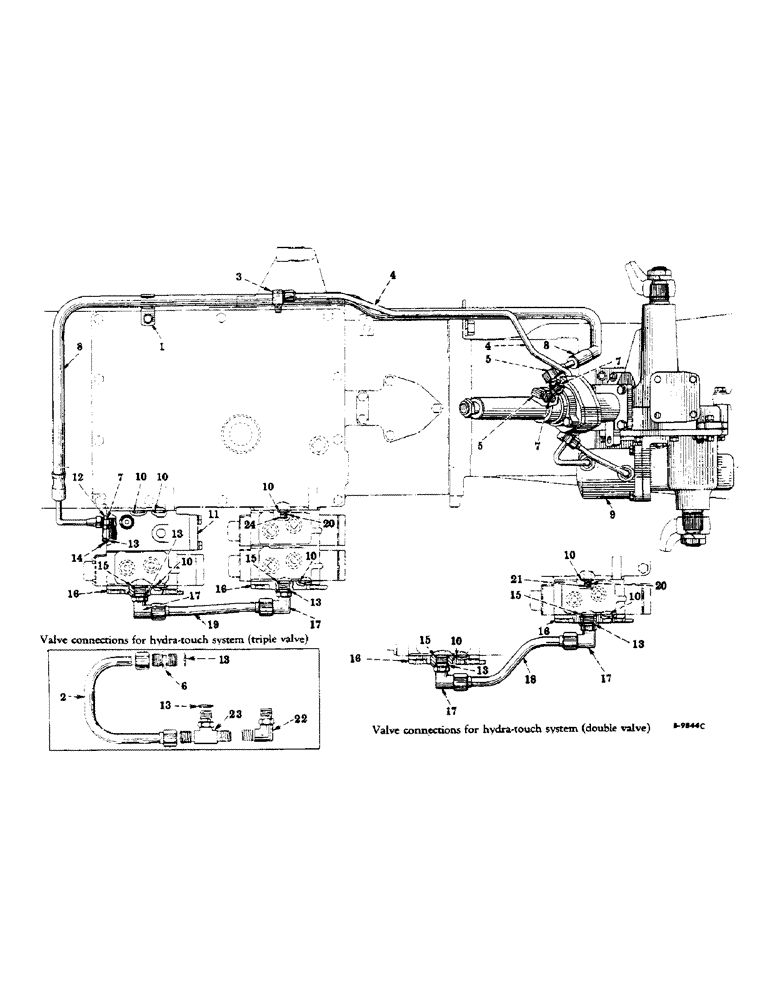

Запчасти Case IH 300 (370) - ATTACHMENTS, POWER STEERING, SPECIAL Attachments

364866R92

HYDRAULIC POWER STEERING PARTS ACCESSORY (For tractors equipped with hydra-touch system) (Single valve) (International 300 series) (Column A)

1шт.

364868R92

HYDRAULIC POWER STEERING PARTS ACCESSORY (For tractors equipped with hydra-touch system) (Double valve) (International 300 series) (Column B)

1шт.

364870R92

HYDRAULIC POWER STEERING PARTS ACCESSORY (For tractors equipped with hydra-touch system) (Triple valve) (International 300 series) (Column C)

1шт.

369802R91

HYDRAULIC POWER STEERING PARTS ACCESSORY (For tractors equipped with hydra-touch system) (Single valve) (International 350 series) (Column D)

1шт.

369803R91

HYDRAULIC POWER STEERING PARTS ACCESSORY (For tractors equipped with hydra-touch system) (Double valve) (International 350 series) (Column E)

1шт.

369804R91

HYDRAULIC POWER STEERING PARTS ACCESSORY (For tractors equipped with hydra-touch system) (Triple valve) (International 350 series) (Column F)

1шт.

364804R1

BRACKET

1шт.

NLS

NO LONGER SERVICED

1шт.

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

50793H

WASHER

1шт.

1

364875R1

SUPPORT, pressure tube (On reservoir cover screw)

1шт.

2

364887R11

TUBE, regulator to valve, assembly (Notes A and B)

1шт.

3

364877R1

ELBOW

BODY, return tube elbow

1шт.

365649R1

ADAPTER, return tube fitting [A] [B] [C]

1шт.

4

364876R21

TUBE, return, assembly [A] [B] [C]

1шт.

4

369787R11

TUBE, return, assembly [D] [E] [F]

1шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 DEGREES, pressure line, w/integral nut

2шт.

6

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, tubing, 3/8" (Seal ring type) (Notes A and B)

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, pressure or return tube

3шт.

8

364872R91

TUBE, pressure, assembly

1шт.

9

370548R91

GEAR, steering, assembly (For components see list of parts under details of "Steering Gear")

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

SCREW, steering gear mounting (1-1/2" long)

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, valve (Note A) [A] [D]

8шт.

10

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, valve (Note A) [B] [E]

14шт.

10

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, valve (Note A) [C] [F]

17шт.

11

364841R95

VALVE, regulator, safety and flow control, assembly (For components see list of parts under details of "Regulator, Safety And Flow Control Valve")

1шт.

12

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, tubing, 3/8" (Seal ring type)

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, valve tube elbow and housing plug [A] [D]

2шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, valve tube elbow and housing plug [B] [C] [E] [F]

3шт.

14

9410360

PLUG

regulator, safety and flow control valve housing

1шт.

15

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

RING, seal, control valve cover [A] [D]

1шт.

15

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

RING, seal, control valve cover [B] [C] [E] [F]

2шт.

16

361457R1

COVER, control valve (Refer to the hydra-touch system for service parts listing for the attaching parts) [A] [D]

1шт.

16

364878R1

COVER, control valve (Refer to the hydra-touch system for service parts listing for the attaching parts) [B] [C] [E] [F]

2шт.

17

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degrees, control valve cover, w/integral nut [B] [C] [E] [F]

2шт.

18

364888R11

TUBE, front valve, assembly [B] [D]

1шт.

19

364889R11

TUBE, front valve, assembly [C] [F]

1шт.

20

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, lift circuit block plug (For use in hydra-touch valve having 1/2" dia. pressure port) [B] [C] [E] [F]

1шт.

20

370920R1

O-RING,1/2" ID

RING, seal, lift circuit block plug (1/2 x 5/8 x 1/16") (For use in hydra-touch valve having 5/8" dia. pressure port) [B] [C] [E] [F]

1шт.

20

574069R1

O-RING,0.750" ID x .062"

RING, seal, lift circuit bhlock plug (3/4 x 7/8 x 1/16") (For use in hydra-touch valve having 5/8" dia. pressure port) [B] [C] [E] [F]

1шт.

21

364880R1

PLUG

lift circuit block (For use in hydra-touch valve having 1/2" dia. pressure port) [B] [C] [E] [F]

1шт.

21

374392R1

PLUG, lift circuit block (For use in hydra-touch valve having 5/8" dia. pressure port) [B] [C] [E] [F]

1шт.

22

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degrees, control valve cover, w/integral nut (Notes A and B) [A] [D]

1шт.

23

9410119

TEE, control valve cover, w/integral nut (Notes A and B) [B] [C] [E] [F]

1шт.

364902R11

BRACKET, voltage regulator mounting

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

366566R1

CAP

monogrammed "IH Power Steering", steering wheel [D] [E] [F]

1шт.

372704R1

TRANSMISSION OIL

FLUID, "Hy-Tran" (Gallon can) (Note A)

1шт.

372703R1

FLUID, "Hy-Tran" (Quart can) (Note A)

1шт.

372705R1

FLUID

"Hy-Tran" (Five gallon can) (Note A)

1шт.

366285R1

NUT, steering wheel [A] [B] [C]

1шт.

366215R1

PLATE, name "Power Steering" [A] [B] [C]

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
