(368B) - ATTACHMENTS, MANIFOLD HEATER BLOCK, FOR C-169 GASOLINE BURNING ENGINE

Запчасти Case IH 300 (368B) - ATTACHMENTS, MANIFOLD HEATER BLOCK, FOR C-169 GASOLINE BURNING ENGINE Attachments

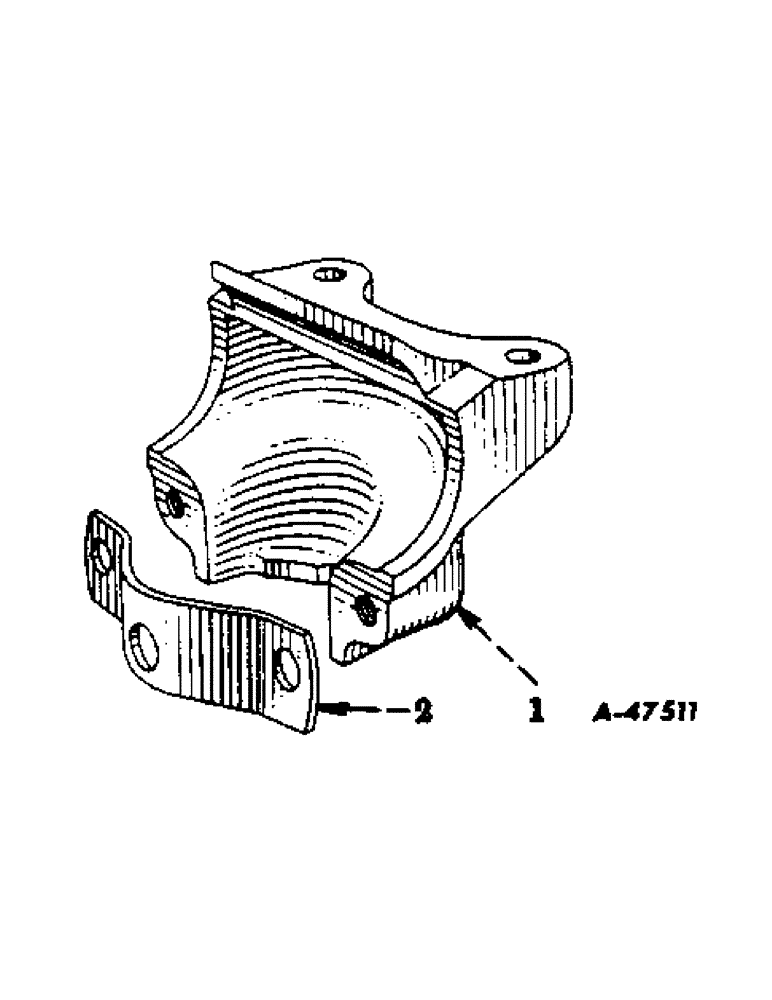

Схема запчастей Case IH 300 - (368B) - ATTACHMENTS, MANIFOLD HEATER BLOCK, FOR C-169 GASOLINE BURNING ENGINE Attachments
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

367094R91

PARTS ACCESSORY, manifold heater block

1шт.

1

367096R1

BLOCK, manifold heater

1шт.

2

367098R1

CLAMP, manifold heater block

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

plain, 21/32" ID x 11/16" OD x .065 ga.

2шт.

Выбрано товаров: 6
