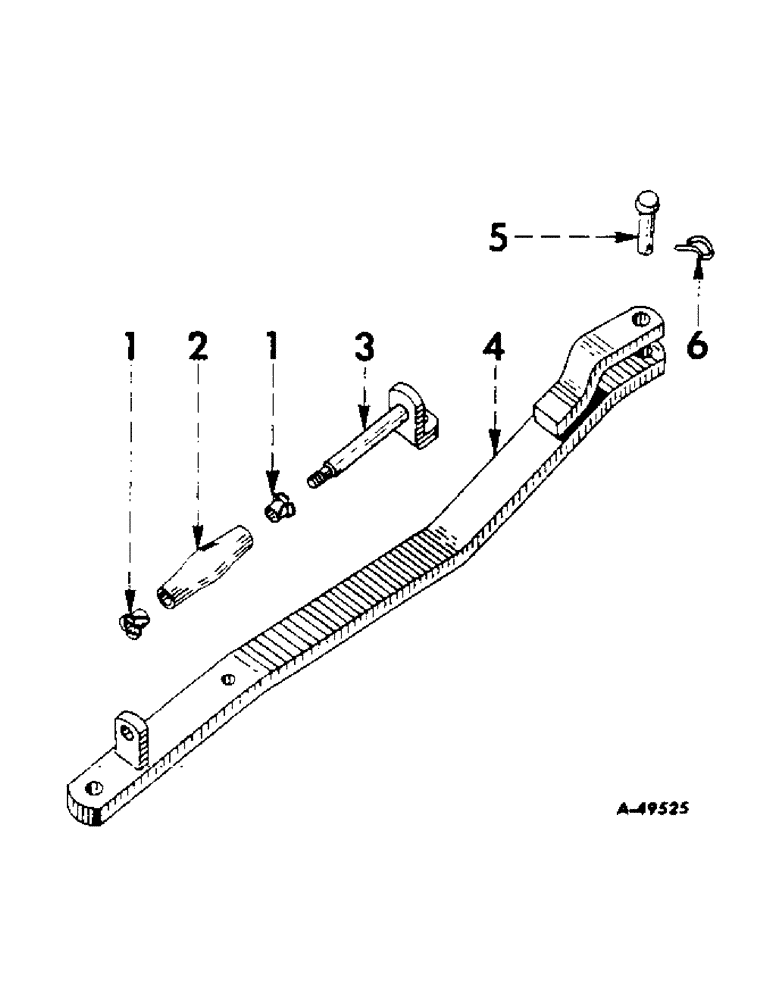

Запчасти Case IH 300 (368A) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL, FOR TRACTORS EQUIPPED W/FAST-HITCH Attachments

368467R91

ATTACHMENT, swinging drawbar

1шт.

1

368513R1

BUSHING,1.3125" OD x 0.875"

BEARING, swinging drawbar roller

2шт.

2

356562R2

ROLLER

swinging drawbar

1шт.

3

368512R11

SHAFT

AND SUPPORT, swinging drawbar roller

1шт.

102639

NUT,5/8"-11, G5

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

4

368469R11

DRAWBAR, swinging, assembly

1шт.

220081

NUT

hex., 3/4-10NC (Note A)

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 1-3/4" (Note A)

2шт.

5

368472R1

PIN

pivot, swinging drawbar

1шт.

6

PO18499

COTTER PIN

cotter, quick-attachable

1шт.
