Запчасти Case IH 300 (368) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL, FOR TRACTORS EQUIPPED W/FIXED DRAWBAR Attachments

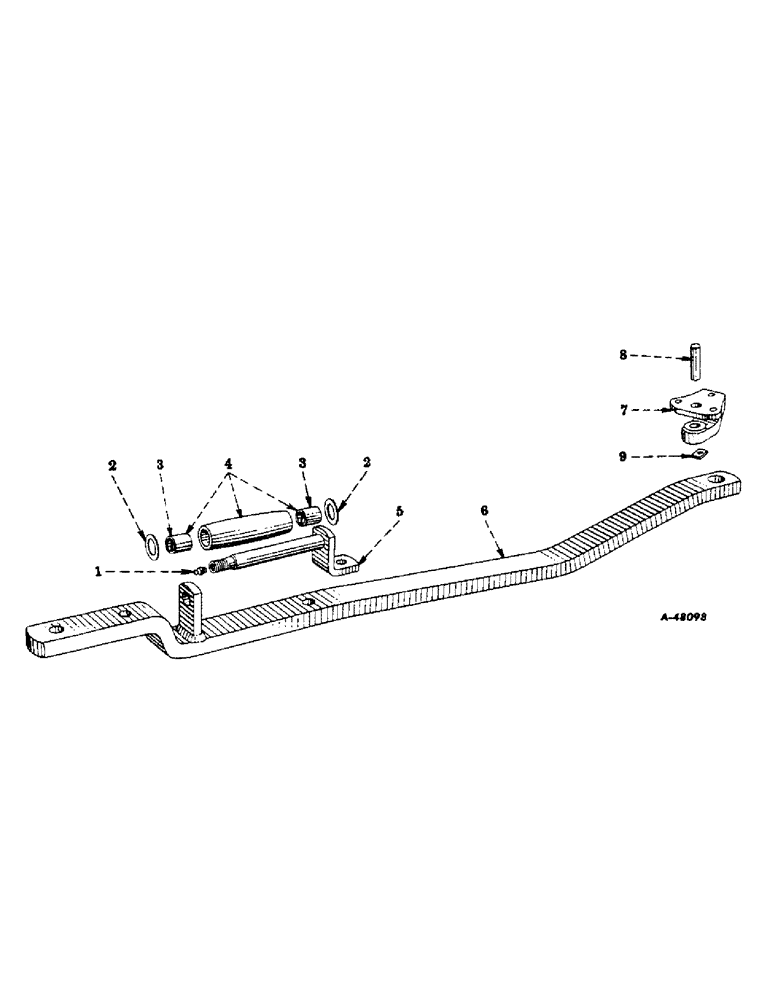

Схема запчастей Case IH 300 - (368) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL, FOR TRACTORS EQUIPPED W/FIXED DRAWBAR Attachments
3
5
4
2
9
6
3
8
7
1
2

Артикул

Название

Примечание

Количество

364454R91

ATTACHMENT, swinging drawbar (For tractors equipped with swinging drawbar)

1шт.

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) 1/8"-27 x .66 lg

1шт.

1

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461)

1шт.

2

358002R1

WASHER

swinging drawbar roller shaft

2шт.

3

356564R1

BUSHING

swinging drawbar

2шт.

4

356562R11

ROLLER

swinging drawbar, w/two bushings, 356564R1

1шт.

5

356561R11

SHAFT

swinging drawbar, w/support

1шт.

102639

NUT,5/8"-11, G5

1шт.

220081

NUT

hex., 3/4-10NC

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

6

364911R11

DRAWBAR, swinging, w/support

1шт.

105611

NUT

square, 3/4-10NC (See Note)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See Note) 3/4"

2шт.

7

8785D

SUPPORT, swinging drawbar pivot

1шт.

363807R1

SCREW, swinging drawbar pivot support

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

8

57654D

PIVOT PIN

PIN, swinging drawbar pivot

1шт.

9

57655D

PLATE

swinging drawbar pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 22
