COMPONENT PARTS FOR REAR WHEEL WEIGHT (First set) (Column A)
1шт.
COMPONENT PARTS FOR REAR WHEEL (Second set) (Column B)
1шт.
CONSISTS OF ALL PARTS LISTED BELOW AS NOTED
1шт.

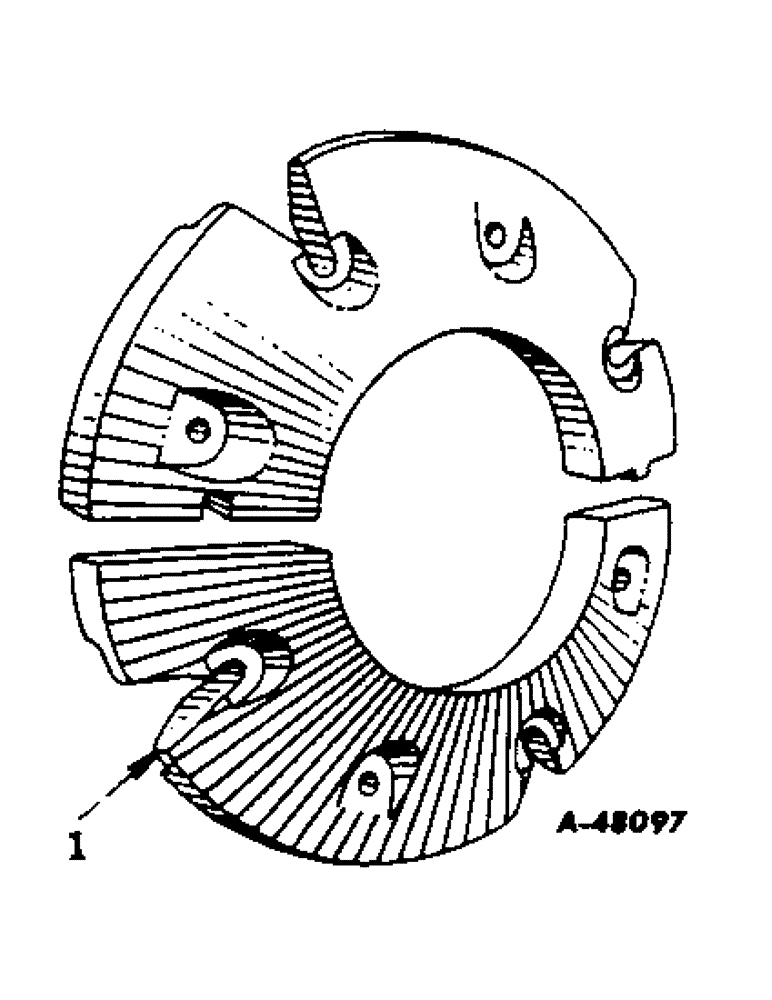

1
365321R2
WEIGHT
half, rear wheel (Approx. 65 lbs.)
4шт.
365332R2
SQUARE BOLT
BOLT, rear wheel weight mounting (Sq-hd.)
8шт.
365333R1
BOLT,Sht Sq Nk, 5/8" - 11 x 3"
rear wheel weight mounting (Carriage) [A]
8шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
jam, hex., 5/8-11NC
8шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
hex., 5/8-11NC
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, [A] 5/8"
16шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, [B] 5/8"
8шт.
366094R91
BOLT (MACHINE)
PACKAGE, hardware, rear wheel weight mounting (First set), Consists Of
1шт.
365333R1
BOLT,Sht Sq Nk, 5/8" - 11 x 3"
8шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
8шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
16шт.
366095R91
BOLT (MACHINE)
PACKAGE, hardware, rear wheel weight mounting (Second set), Consists Of
1шт.
365332R2
SQUARE BOLT
BOLT
8шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
8шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
