Запчасти Case IH 300 (364) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPECIAL Attachments

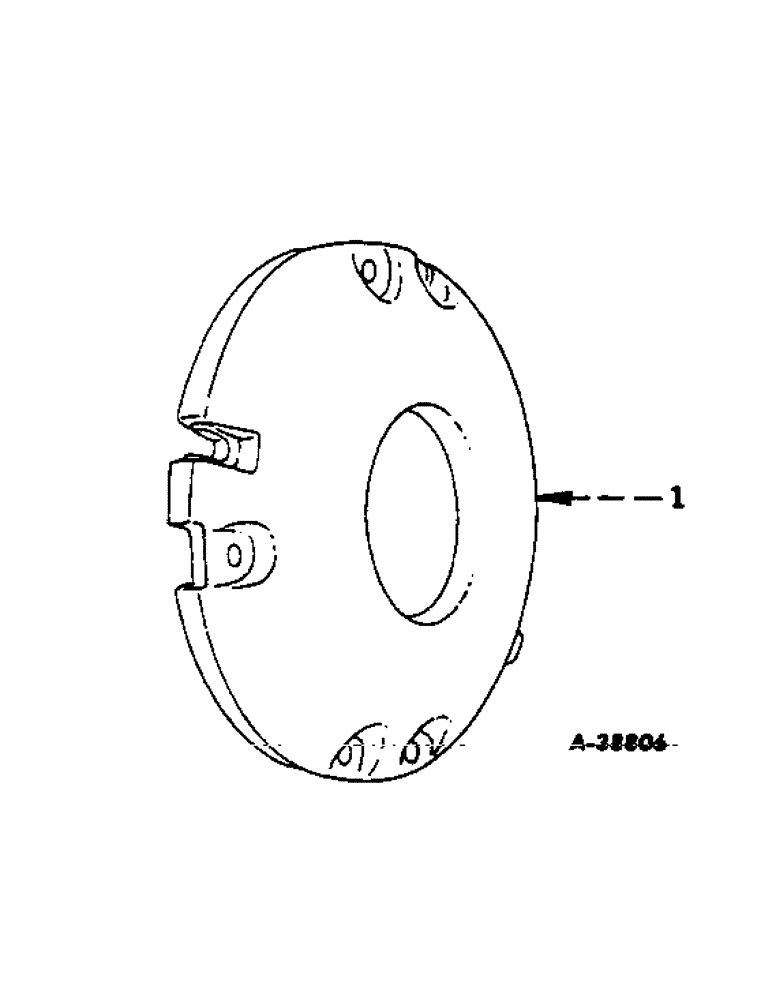

Схема запчастей Case IH 300 - (364) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPECIAL Attachments
1

Артикул

Название

Примечание

Количество

COMPONENT PARTS FOR REAR WHEEL WEIGHT (First set) (Column A)

1шт.

COMPONENT PARTS FOR REAR WHEEL WEIGHT (Second set) (Column B)

1шт.

CONSISTS OF ALL THE PARTS LISTED BELOW, AS NOTED

1шт.

1

362656R1

WEIGHT, rear wheel (Approx. 145 lbs.) [A]

2шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

carriage, sq-nk., cd-pltd., 5/8-11NC x 3" [A]

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex., cd-pltd., 5/8-11NC [A]

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, [A] 5/8"

8шт.

1

362656R1

WEIGHT, rear wheel (Approx. 145 lbs.) [B]

2шт.

18448R1

BOLT, machine, sq-hd., cd-pltd., 3/4-10NC x 4-1/4" [B]

4шт.

280954

NUT,3/4"-10, G5

[B] 3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4" [B]

4шт.

366041R91

BOLT (MACHINE)

PACKAGE, hardware, rear wheel weight mounting (First set) complete [A], Consists Of

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

366057R91

BOLT (MACHINE)

PACKAGE, hardware, rear wheel weight mounting (Second set) complete [B], Consists Of

1шт.

18448R1

BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

Выбрано товаров: 19
