Запчасти Case IH 300 (362) - ATTACHMENTS, FRONT BOLSTER WEIGHTS Attachments

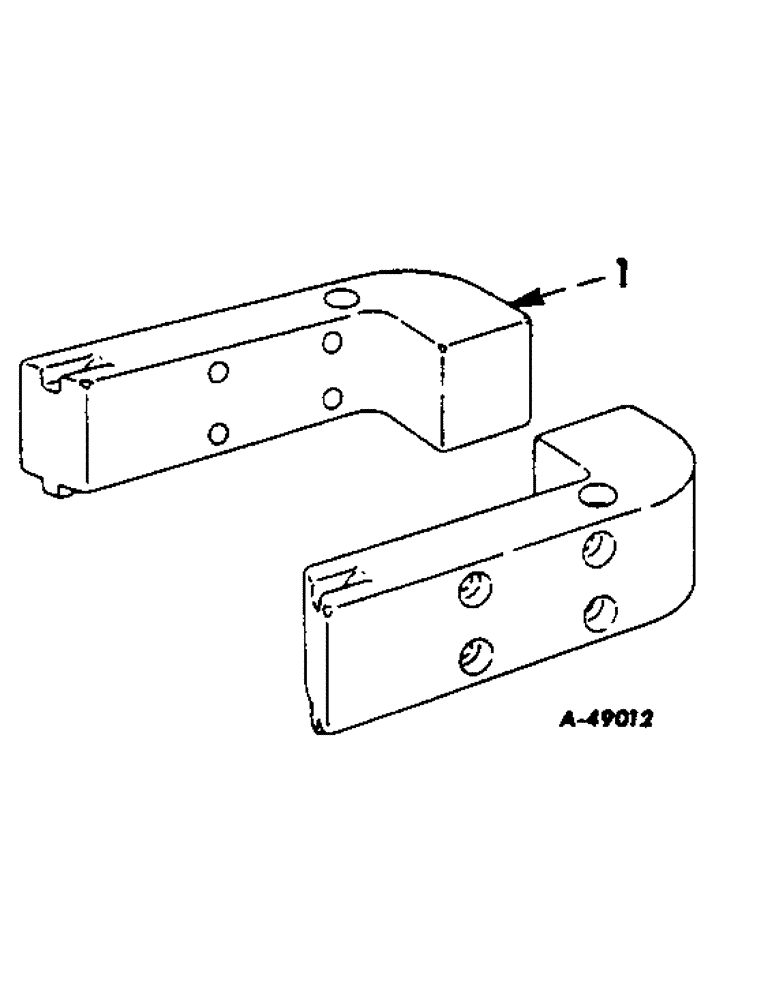

Схема запчастей Case IH 300 - (362) - ATTACHMENTS, FRONT BOLSTER WEIGHTS Attachments
1

Артикул

Название

Примечание

Количество

369372R91

FRONT BOLSTER WEIGHT PARTS ACCESSORY (1st weight) (Column A)

1шт.

369373R91

FRONT BOLSTER WEIGHT PARTS ACCESSORY (2nd weight) (Column B)

1шт.

1

369374R1

WEIGHT, front bolster

2шт.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

BOLT, mach., hex-hd., 5/8-11NC x 3-1/2"

4шт.

18010R1

BOLT, mach., hex-hd., 5/8-11NC x 9-1/4" [B]

2шт.

102639

NUT,5/8"-11, G5

[B] 5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" ID x 1-5/16 OD x No. 10 ga. [B]

8шт.

Выбрано товаров: 8
