Запчасти Case IH 300 (361) - ATTACHMENTS, PNEUMATIC TIRE PUMP, SCHRADER, SPECIAL Attachments

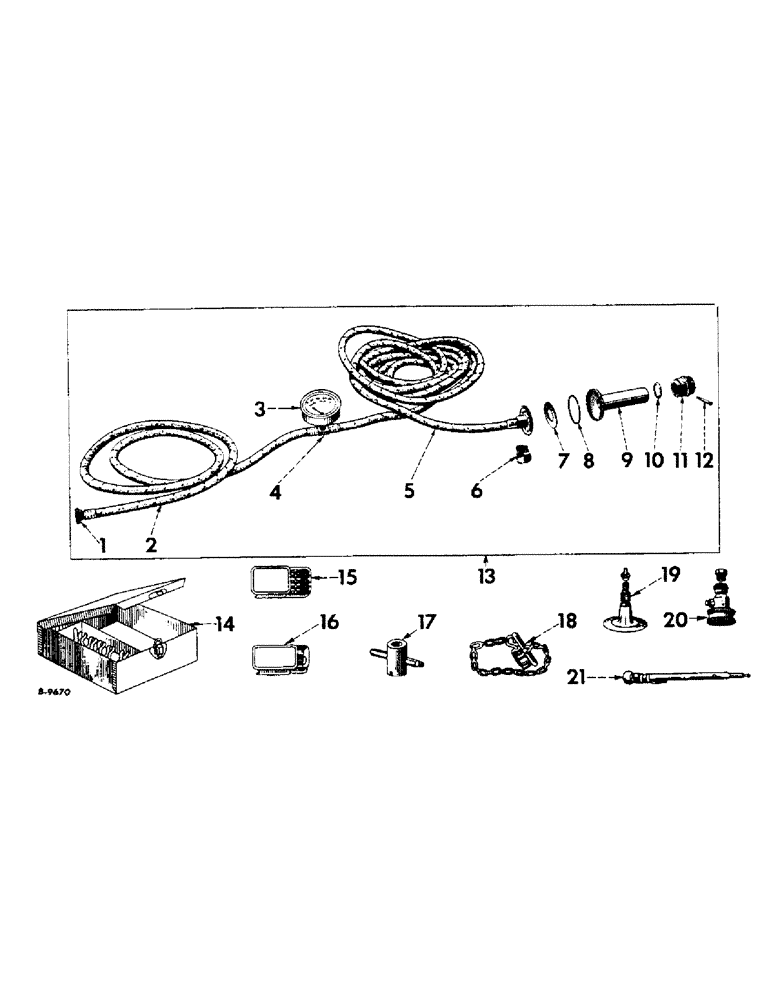

Схема запчастей Case IH 300 - (361) - ATTACHMENTS, PNEUMATIC TIRE PUMP, SCHRADER, SPECIAL Attachments
21
7
6
3
1
5
10
8
2
16
15
11
12
17
20
4
9
19
13
14
18

Артикул

Название

Примечание

Количество

350342R91

PUMP

KIT, tire pump, complete

1шт.

1

42813D

CONNECTOR, pump

1шт.

2

42808D

HOSE, tire pump (4 ft.)

1шт.

3

42809D

GAGE, air pressure

1шт.

4

42806D

CONNECTOR, air pressure gage

1шт.

5

42807D

HOSE, tire pump (12 ft.)

1шт.

6

62602D

CLAMP, hose

4шт.

7

42802D

DISC, rubber

1шт.

8

42812D

WASHER, fiber

1шт.

9

42800D

SHELL, long

1шт.

10

42811D

WASHER, rubber (Inside adapter)

1шт.

11

39625D

ADAPTER, 7/8" (Note A)

1шт.

11

39626D

ADAPTER, 18 MM (Note A)

1шт.

11

39627D

ADAPTER, 14 MM (Note A)

1шт.

11

350490R1

ADAPTER, 1/2" (Note A)

1шт.

11

350491R1

ADAPTER, 10 MM (Note A)

1шт.

12

42810D

SCREW, attaching (For adapter)

1шт.

13

39622D

PUMP

tire, w/18 MM adapter, assembly (Optional with 365997R91)

1шт.

13

350489R91

PUMP

tire, w/five adapters, assembly

1шт.

14

CONTAINER, metal (Not serviced separately)

1шт.

15

140249H

CORE

BOX, valve cores (Consists of five cores, 139388H)

1шт.

15

139388H

CORE, valve (Fits in all standard tire valves)

1шт.

16

350483R91

CAP

BOX, valve caps (Consists of five caps, 140238H)

1шт.

16

140238H

CAP, valve (Fits all standard tire valves)

1шт.

17

350484R1

TOOL, valve repair

1шт.

18

350485R1

TOOL

valve fishing

1шт.

19

350486R91

VALVE

tire, air-water (Prepared for vulcanizing to the tube)

1шт.

20

65814D

ADAPTER

air-water (Permits use of a garden hose to fill the tire with liquid)

1шт.

21

350488R1

GAUGE

GAGE, tire pressure (For use on air-water valves)

1шт.

Выбрано товаров: 29
