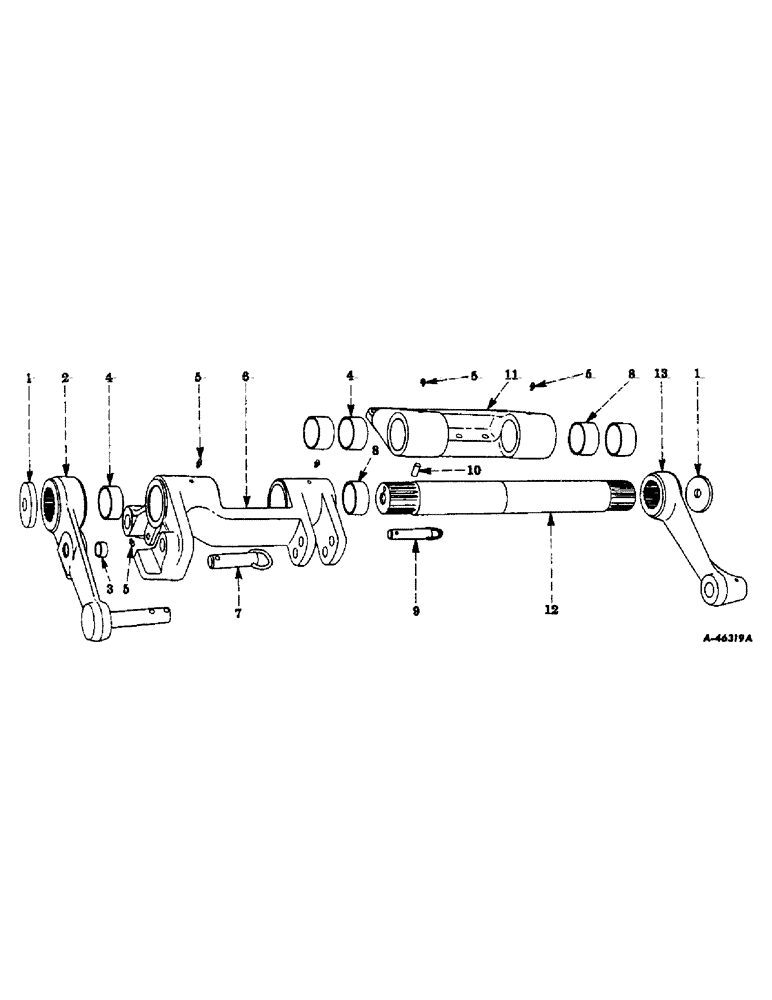

Запчасти Case IH 300 (358) - ATTACHMENTS, ROCKSHAFT, SPECIAL, FOR INTERNATIONAL 300 UTILITY TRACTORS W/ONE-PIECE BELLCRANK Attachments

364488R91

ROCKSHAFT

PARTS ACCESSORIES (For tractors equipped with hydra-touch system (Single, double, or triple valve) and hydraulic cylinder with connections) (Composed of parts listed in this unit except as noted)

1шт.

1

49673DA

WASHER, rockshaft arm retaining

2шт.

271632

SEAL KIT

SCREW, cap, hex-hd., 3/4-16NF x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

364485R11

ARM, rockshaft, L.H. w/pin

1шт.

3

519953R1

BUSHING, hydraulic cylinder pivot pin

1шт.

4

364525R1

BUSHING, rockshaft bellcrank or mounting bracket L.H. (2-3/8" I.D. x 2-1/2" O.D. x 1-1/2" wide)

4шт.

5

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (Optional with 443566)

5шт.

5

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 273354)

5шт.

6

364487R11

BELLCRANK, rockshaft actuating w/two bushings, 364525R1, two bushings, 364526R1 and bushing, 519953R1

1шт.

7

520962R11

PIN, quick attachable w/ball, handle and spring (Locking pin for rockshaft) (For tractors equipped with fast-hitch) (Not included with rockshaft field attachment)

1шт.

8

364526R1

BUSHING, rockshaft bellcrank or mounting bracket R.H. (2-5/16" ID x 2-7/16" OD x 1-1/2" wide)

4шт.

9

517853R12

PIN

quick attachable w/ball, handle and spring

1шт.

10

362848R1

PIN, dowel, rockshaft mounting bracket

1шт.

11

362847R31

BRACKET, rockshaft mounting w/two bushings, 364525R1, two bushings, 364526R1 and pin, 362848R1

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

12

364484R1

ROCKSHAFT

1шт.

13

362850R2

ARM, rockshaft, R.H.

1шт.
