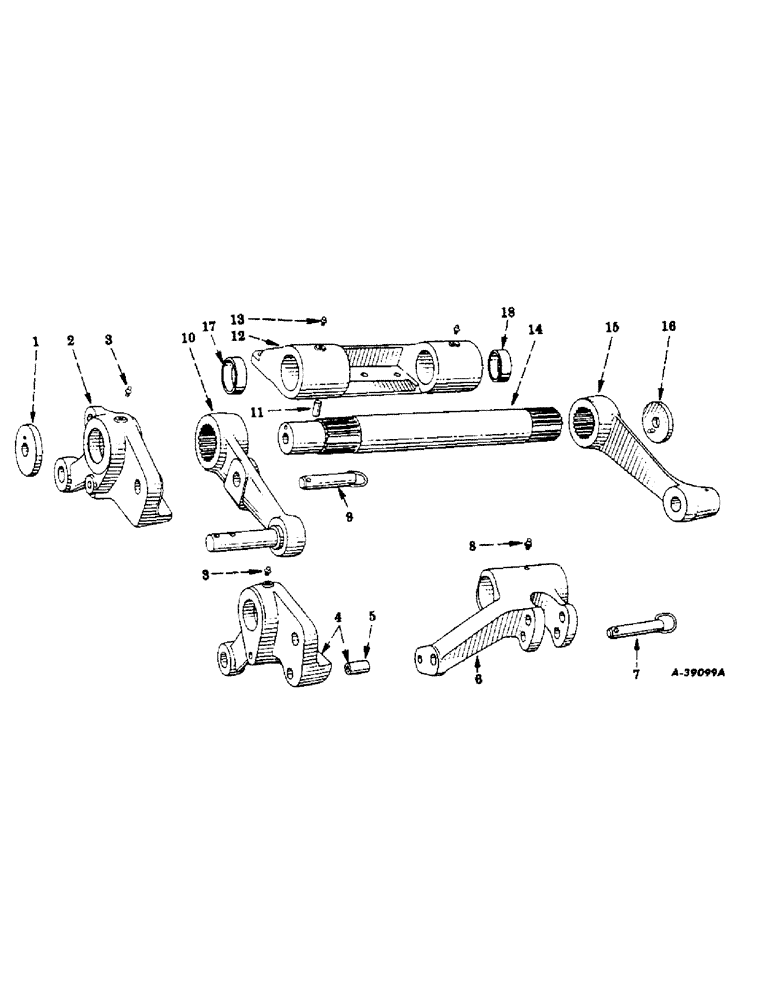

Запчасти Case IH 300 (357) - ATTACHMENTS, ROCKSHAFT, SPECIAL, FOR INTERNATIONAL 300 UTILITY TRACTORS W/TWO PIECE BELLCRANK Attachments

ROCKSHAFT ATTACHMENT (With two-piece bellcrank) (For tractors equipped with hydra-touch system (Single, double, or triple valve) and hydraulic cylinder with connections) (Order 364488R91) (Column A)

1шт.

DEPTH CONTROL UNIT ATTACHMENT (Provides depth control on tractors equipped with rockshaft without depth control bellcrank) (Order the parts listed in column B from parts stock) (Column B)

1шт.

CONSISTS OF ALL THE PARTS LISTED BELOW, AS NOTED

1шт.

1

362854R11

WASHER, rockshaft arm retainer, w/pin [A]

1шт.

28-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8

SCREW, cap, hex-hd., 3/4-16NF x 1-3/4" [A]

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, [A] 3/4"

1шт.

2

362853R1

BELLCRANK, rockshaft actuating (W/O mounting pad for depth control bellcrank - order 521378R11)

1шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 273354)

2шт.

3

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (Optional with 443566)

2шт.

4

521378R11

BELLCRANK, rockshaft actuating, w/pin, 521380R1 (Has mounting pad for depth control bellcrank) (Will work for 362853R1)

1шт.

5

521380R1

PIN, dowel, rockshaft actuating bellcrank (Used only with 521378R11 - reference No. 4)

1шт.

6

521377R1

BELLCRANK, depth control (Used only with 521378R11 - reference No. 4)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

517853R12

PIN

quick attachable, w/ball, handle, and spring

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (Used only with 521377R1 - reference No. 6) 1/8"-27 x .66 lg

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461) (Used only with 521377R1 - reference No. 6)

1шт.

9

520962R11

PIN, quick attachable w/ball, handle, and spring (Locking pin for rockshaft) (For tractors equipped with fast-hitch) [A]

1шт.

10

362851R11

ARM, rockshaft, L.H., w/pin [A]

1шт.

11

362848R1

PIN, dowel, rockshaft mounting bracket [A]

1шт.

12

362847R31

BRACKET, rockshaft mounting w/two bushings, 364525R1, two bushings, 364526R1 and w/pin, 362848R1 [A]

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

[A] Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13 NC x 3" [A]

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, [A] 1/2"

6шт.

13

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 273354) [A]

2шт.

13

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (Optional with 443566) [A]

2шт.

14

362849R2

ROCKSHAFT [A]

1шт.

15

362850R2

ARM, rockshaft, R.H. [A]

1шт.

16

362854R11

WASHER, rockshaft arm retainer w/pin [A]

1шт.

28-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8

SCREW, cap, hex-hd., 3/4-16NF x 1-3/4" [A]

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, [A] 3/4"

1шт.

17

364525R1

BUSHING, rockshaft mounting bracket, L.H. (Used only in bracket, 362847R3) [A]

2шт.

18

364526R1

BUSHING, rockshaft mounting bracket, R.H. (Used only in bracket, 362847R3) [A]

2шт.
