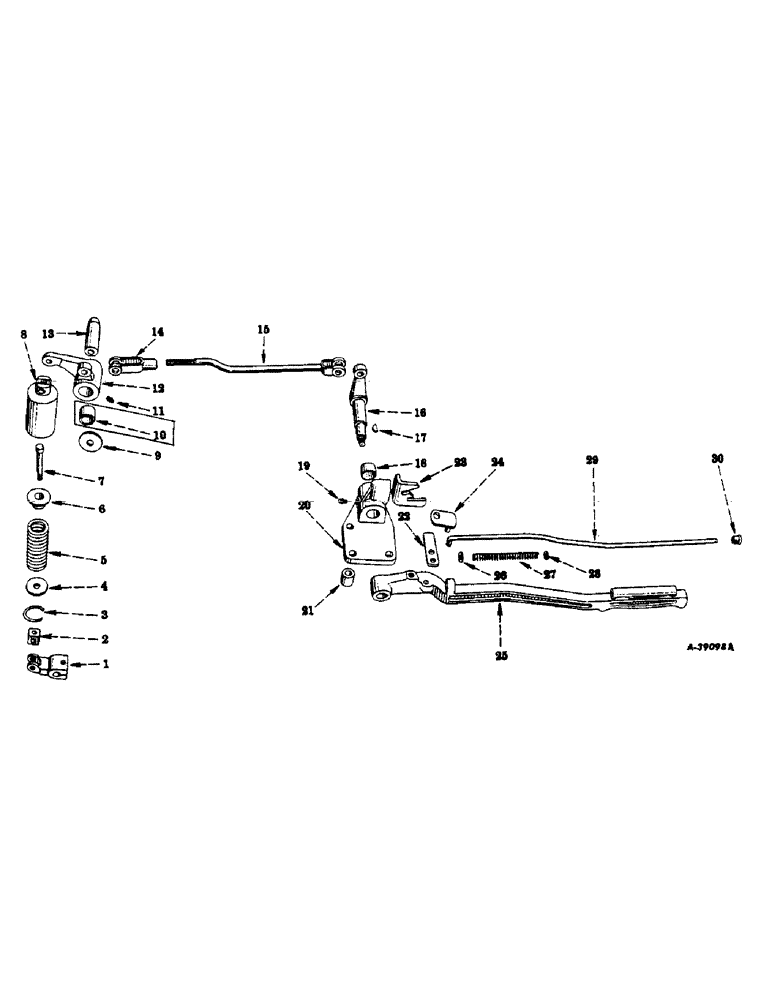

Запчасти Case IH 300 (351) - ATTACHMENTS, INDEPENDENT POWER TAKE-OFF, SPECIAL, OPERATING HANDLE & CONNECTIONS Attachments

1

363296R1

LEVER, primary brake band operating

1шт.

271505

BODY

hex., 7/16-20NF

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

359100R1

PIN, primary brake band operating lever

1шт.

181406

BOLT,Hex, 7/16" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

359097R1

BLOCK, bottom spring anchor

1шт.

3

359096R1

RING, snap, spring sleeve

1шт.

4

359095R1

PLATE, spring retainer

1шт.

5

359094R2

SPRING, brake band actuator

1шт.

6

359093R11

PLUG, spring retainer, w/pin, 17071R1

1шт.

17071R1

PIN, roll, 1/8 x 5/16"

1шт.

7

359092R1

BOLT

spring anchor

1шт.

8

359091R11

SLEEVE, spring

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

9

364416R1

WASHER, bellcrank retainer

1шт.

189687

SCREW, cap, hex-hd., 3/8-16NC x 4-3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

363298R1

BUSHING, operating bellcrank (Used only in bellcrank, 363297R1)

2шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 273354)

1шт.

11

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (Optional with 443566)

1шт.

12

363297R2

BELLCRANK, power take-off operating

1шт.

13

363299R1

SHAFT, bellcrank pivot

1шт.

14

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, adjustable rod end, light, 1/2"

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, rod end, dld., 1/2 x 1-27/64"

1шт.

15

363300R11

ROD, power take-off control, w/clevis (Not used on Wheatland special tractors)

1шт.

15

367951R11

ROD, power take-off control, w/clevis (Not illustrated) (Used on Wheatland Special Tractor)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, rod end, dld., 1/2 x 1-27/64"

1шт.

16

363301R11

LEVER

control handle operating, w/shaft

1шт.

17

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

18

363304R1

BUSHING

control rod mounting bracket

2шт.

19

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 273354)

1шт.

19

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (Optional with 443566)

1шт.

20

363303R11

BRACKET, operating handle mounting, w/two bushings, 363304R1 and fitting, 443566

1шт.

102637

NUT,1/2"-13, G5

(Used on Wheatland Special Tractors) 1/2"-13, G5

3шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

(For tractors equipped with fast-hitch) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

(Used on Wheatland Special Tractors) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2" (For tractors equipped with fixed drawbar)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (3 used on Wheatland Special Tractors) 1/2"

1шт.

21

366253R1

SPACER, operating handle mounting bracket (21/32" long (Two used under outer screws for tractors equipped, w/orchard fenders (Not included with independent power take-off field attachments)

2шт.

21

72691R1

SPACER, operating handle mounting bracket (1-1/32" long) (For tractors equipped with fixed drawbar) (One used under inner screw for tractors, w/orchard fenders)

3шт.

22

363305R1

PAWL, operating handle

1шт.

23

363403R1

QUADRANT, operating handle

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

363306R11

BRACKET, pawl pivot, w/pin

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

363294R11

HANDLE, operating

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

26

Q243

WASHER

plain, 21/64" I.D. x 3/4" O.D. x No. 16 ga.

1шт.

27

359109R2

VALVE SPRING

SPRING, pawl operating rod

1шт.

28

131402H

WASHER

plain, 11/32" I.D. x 9/16" O.D. x No. 16 ga.

1шт.

29

363295R2

ROD, pawl operating (To replace a rod which has a knob that is retained with a roll pin - order package, 365381R91)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

30

359108R2

KNOB

pawl operating rod

1шт.

17072R1

LOCK PIN,1/16" x 1/2", Slotted

PIN, roll, 1/16 x 1/2" (Used to attach knob with hole)

1шт.

367960R1

BRACE, operating handle mounting bracket (Illustrated with Wheatland special tractor fenders and platform)

1шт.

366614R1

LOCK, hydra-touch control valve lever (Not used on Wheatland Special Tractors) (Note A)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

Q1504

WASHER

plain, 13/32" ID x 7/8" OD x No. 16 ga.

1шт.

Q5035

WASHER

plain, 17/32" ID x 1" OD x No. 16 ga.

1шт.

365381R91

ROD

PACKAGE, service, pawl operating rod (Consists of knob, 359108R2 and rod, 363295R2) (Will work for rod which has a knob that is retained with a roll pin)

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 1-1/4"

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

(For tractors equipped with fast-hitch) (Fender attaching screws) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

179891

SHAFT

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2" (For tractors equipped with fixed drawbar) (Fender attaching screws)

8шт.

18279D

SPACER, fender (1/2" long) (For tractors equipped with fast-hitch) (Illustrated with fenders, platforms, and toolbox)

6шт.

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

fender (1-1/2" long) (For tractors equipped with fixed drawbar) (Illustrated with fenders, platforms, and toolbox)

6шт.

366612R1

SPACER, hydra-touch control valve lever lock (Not used on Wheatland Special Tractors) (Note A)

1шт.

366613R1

SPRING

hydra-touch control valve lever lock (Not used on Wheatland Special Tractors) (Note A)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (On fender attaching screws) 1/2"

8шт.
