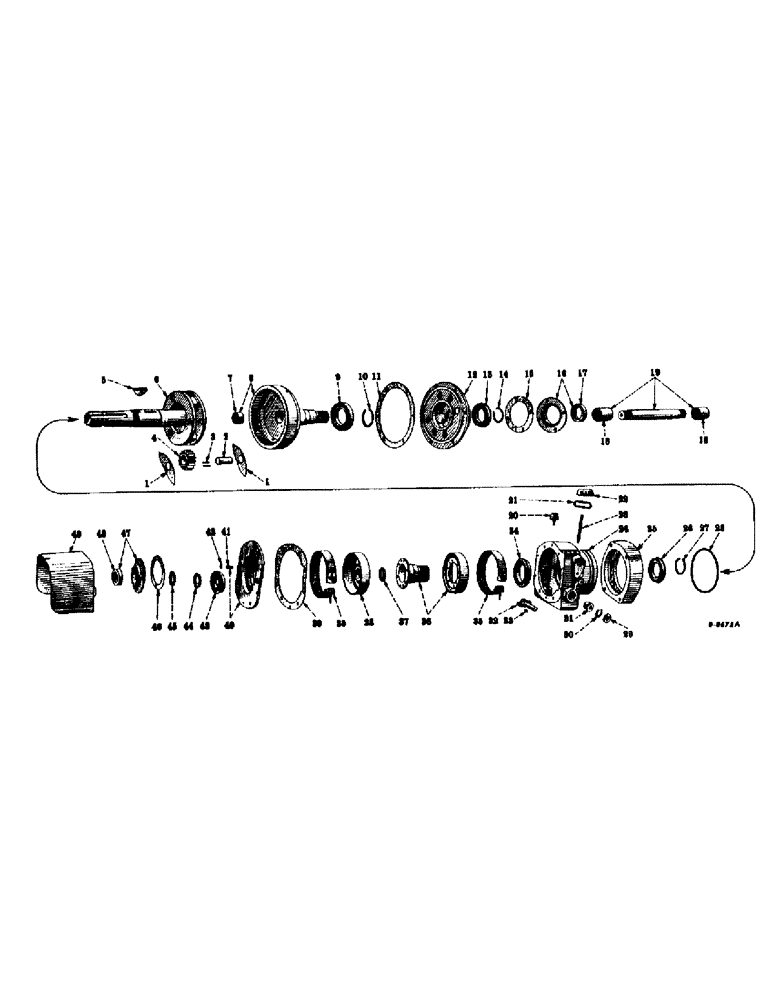

Запчасти Case IH 300 (347) - ATTACHMENTS, INDEPENDENT POWER TAKE-OFF, SPECIAL, REAR UNIT Attachments
№
Артикул
Название
Примечание
Количество
363730R93
INDEPENDENT POWER TAKE-OFF ATTACHMENT, (W/O provision for mounting belt pulley) (For tractors equipped with independent power take-off drive - (Note S) or torque amplifier with independent power take-off drive (Note S) (Column A)
1шт.
364711R92
INDEPENDENT POWER TAKE-OFF ATTACHMENT, (With provision for mounting belt pulley) (For tractors equipped with independent power take-off drive - (Note S) or torque amplifier with independent power take-off drive (Note S) (Column B)
1шт.
NOTE - The following additional parts are required when these attachments are applied on Wheatland Special Tractor and must be ordered separately
1шт.
367951R11
ROD, control
1шт.
367960R1
BRACE, control handle bracket
1шт.
13-1220
BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5
SCREW, cap, 3/4-10NC x 1-1/4"
1шт.
102637
NUT,1/2"-13, G5
3шт.
NOTE - The following additional parts (Illustrated with the respective drawbars with which they are used) are required to provide a standardized power take-off hitch and must be ordered separately
1шт.
FIXED DRAWBAR ORDER
1шт.
220081
NUT
2шт.
66426D
PLATE
1шт.
271614
BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5
SCREW
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
FAST-HITCH ORDER
1шт.
425-1012
NUT,3/4"-10, G5
2шт.
364013R2
PLATE (Note A)
1шт.
363445R1
PLATE (Note B)
1шт.
271624
O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro
SCREW
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
1
360160R2
THRUST WASHER
thrust, planet gear
6шт.
2
360161R1
PIN,15.88mm OD x 38.1mm L
SHAFT, planet gear
3шт.
17141R1
LOCK PIN,5/32" x 1", Slotted
Pin, 5/32" x 1", Slotted
3шт.
3
360526R91
BEARING, NEEDLE
SET, planet gear rollers (Consists of 72 rollers)
1шт.
4
360159R1
GEAR
planet (15 teeth)
3шт.
5
360174R1
KEY
creeper brake drum
1шт.
6
360158R1
CARRIER
planet and rear shaft
1шт.
7
360140R91
BEARING, NEEDLE
1шт.
8
360166R11
SHAFT, drive, w/ring gear (54 teeth) and bearing 360140R91
1шт.
9
ST560
BEARING, BALL,45 mm ID x 75 mm OD x 16 mm
(Drive shaft rear)
1шт.
10
360165R1
RING
snap, drive shaft rear bearing
1шт.
11
360163R1
GASKET
drive shaft bearing
1шт.
12
360162R1
CAGE, drive shaft bearing
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
6шт.
13
ST559
BALL BEARING,40 mm ID x 68 mm OD x 15 mm
BEARING, ball, w/snap ring (Drive shaft, front)
1шт.
14
360164R1
RING
snap, drive shaft front bearing
1шт.
15
360156R1
GASKET
front bearing retainer
1шт.
16
360157R11
RETAINER, front bearing, w/oil seal, 359056R91
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
4шт.
17
359449R91
OIL RESERVOIR
OIL SEAL, front bearing retainer (Optional with 367162R91)
1шт.
17
367162R91
OIL SEAL
front bearing retainer (Optional with 359056R91)
1шт.
18
360168R1
COUPLING,12T
shaft
2шт.
19
360167R11
SHAFT, coupling, w/two coupling, 360168R1
1шт.
20
60836H
BREATHER
housing
1шт.
21
360179R1
GASKET
anchor bolt cover
1шт.
22
360180R1
COVER, anchor bolt
1шт.
1276056C1
SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"
SCREW, slotted-rd-hd., 1/4-20NC x 1-1/4"
1шт.
23
360175R1
BOLT,1/2" - 13 x 4 5/8"
brake band anchor
2шт.
114505
JAM NUT,Jam, 1/2"-13, G5
2шт.
24
360151R11
HOUSING, assembly, Composed Of
1шт.
359305R1
BUSHING
1шт.
360151R1
HOUSING (NSS)
1шт.
360137R91
SEAL
OIL SEAL
1шт.
103874
VALVE SPRING
PLUG
2шт.
359306R1
RING
1шт.
103874R3
PLUG, pipe, sq-socket, C.I. 1/2" (Optional with 116566 and 362356R3)
2шт.
116566
PLUG
pipe, sq-socket, stl., 1/2" (Optional with 103874 and 362356R3)
2шт.
362356R3
PLUG, pipe, housing drain and oil level (Optional with 103874 and 116566)
2шт.
16096R1
SCREW, cap, hex-hd., 1/2-13NC x 8" [A]
4шт.
18409R1
BOLT
SCREW, cap, hex-hd., 1/2-13NC x 8-1/4" [B]
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
25
360742R1
ADAPTER, independent power take-off
1шт.
26
ST564
BALL BEARING,66.67mm ID x 104.76mm OD x 17.46mm W
BEARING, ball, w/snap ring
1шт.
27
360171R1
SNAP RING,M66.67 x 3.23mm Thk, Ext
snap, sun gear and brake shaft, front
1шт.
28
358842R1
RING
seal, housing
1шт.
29
71599C91
OIL SEAL
OIL SEAL, brake band actuating lever
1шт.
30
359306R1
RING
snap, band actuating lever bushing
1шт.
31
359305R1
BUSHING
band actuating lever
1шт.
32
359098R1
LEVER
secondary brake band operating
1шт.
33
124547
WOODRUFF KEY,#7, 1/8" x 3/4", HT
Primary operating lever #7, 1/8" x 3/4", HT
1шт.
34
ST563
BALL BEARING,75 mm ID x 115 mm OD x 20 mm
BEARING, ball, w/snap ring
1шт.
35
359059R91
BAND
brake, w/three linings (Optional with 365763R91)
2шт.
35
365763R31
BAND, brake, w/lining (Optional with 359059R91)
2шт.
36
360169R11
GEAR, sun (24 teeth) and reactor brake shaft, w/drum and six rivets, 118093 rivet, csk-hd., 1/4 x 11/16"
1шт.
118093
SEALING RING COLLAR
RIVET, csk-hd., 1/4 x 11/16"
6шт.
37
360173R1
WASHER
SPACER, creeper brake drum
1шт.
38
360172R1
DRUM
creeper brake (Optional with 363906R1)
1шт.
38
363906R1
DRUM
creeper brake (Optional with 360172R1)
1шт.
39
360154R1
GASKET
housing cover
1шт.
40
360153R11
COVER, housing, w/three studs, 359049R1 [A]
1шт.
40
364708R2
COVER, housing (Not illustrated) [B]
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
41
359049R1
STUD, housing cover [A]
3шт.
42
359119R1
NUT, safety shield [A]
3шт.
43
ST239
BALL BEARING,40 mm ID x 80 mm OD x 18 mm
BEARING, ball, w/snap ring
1шт.
44
359081R1
WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk
PLATE, lock, rear shaft rear bearing nut
1шт.
45
359082R1
NUT
rear shaft rear bearing
1шт.
46
359054R2
GASKET
rear shaft bearing retainer
1шт.
47
360155R12
HUB
RETAINER, rear shaft bearing, w/oil seal, 364472R91
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
cap, hex-hd., 3/8-16NC x 7/8"
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
48
364472R91
SEAL
OIL SEAL, rear shaft, rear bearing (Will work for 359051R91)
1шт.
49
360181R92
SHIELD, safety [A]
1шт.
49
364712R12
SHIELD
safety [B]
1шт.
364713R1
AXLE PIN
BOLT, safety shield [B]
3шт.
Выбрано товаров: 97
