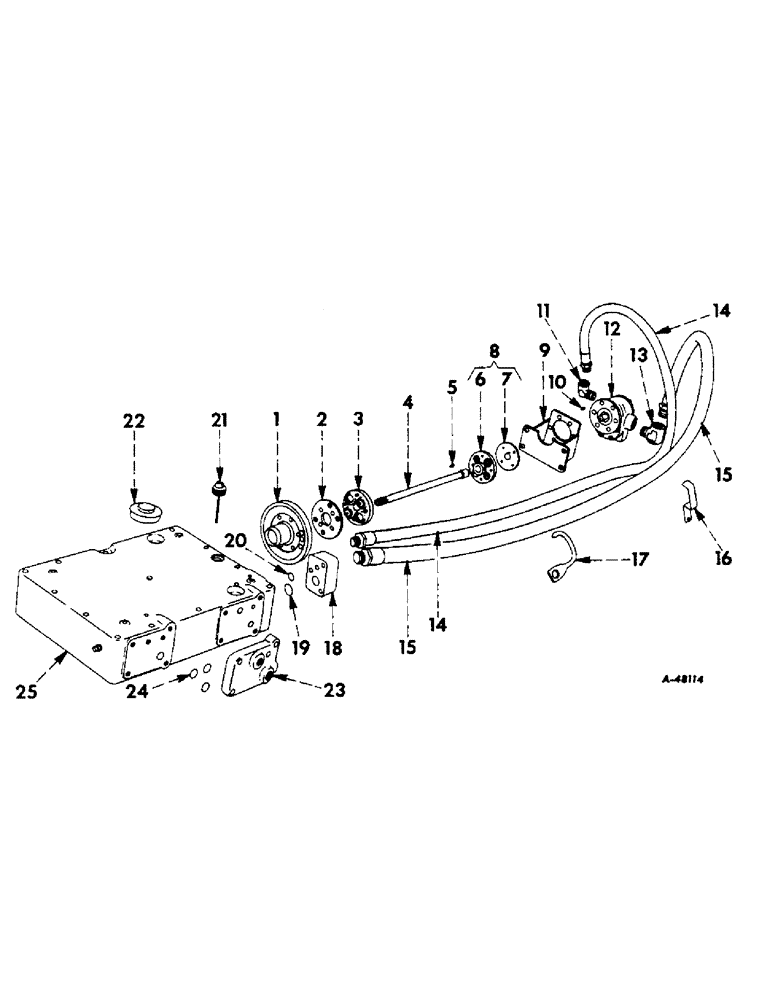

Запчасти Case IH 300 (341) - ATTACHMENTS, FRONT POWER TAKE-OFF PUMP, SPECIAL Attachments

SERVICE PARTS FOR TRACTORS EQUIPPED WITH 16 GALLON PER MINUTE PUMP (Column A)

1шт.

365895R91

FRONT POWER TAKE-OFF HYDRAULIC PUMP ADAPTER PARTS ACCESSORY (16 gallon per minute) (Column B)

1шт.

NOTE - When this parts accessory is applied, the tractor must be equipped with the front power take-off pulley attachment, 364530R91, if it is not already so equipped.

1шт.

365897R91

FRONT POWER TAKE-OFF HYDRAULIC PUMP PARTS ACCESSORY (Column C)

1шт.

NOTE - When this parts accessory is applied on tractors equipped with the hydra-touch system the following additional parts must also be ordered and installed

1шт.

354948R11

BRACKET

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW

4шт.

55780DD

GASKET

1шт.

179846

LEVER

1шт.

354949R1

GASKET

1шт.

352079R1

SHAFT

1шт.

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

NOTE - When this parts accessory is applied on diesel burning engine tractors equipped with the hydra-touch system the following additional parts must also be ordered and installed

1шт.

366782R1

PLATE

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

1

PULLEY, front power take-off fan drive (Refer to the "Crankshaft And Related Parts" unit) [A]

1шт.

2

365929R1

ADAPTER, drive shaft [A] [B]

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

[A] [B] Hex, 3/8"-16 x 1", G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, [A] [B] 3/8"

4шт.

3

365903R91

COUPLING, spline, w/two bushings [A] [B]

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

[A] [B] Hex, 5/16"-18 x 1 1/2", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, [A] [B] 5/16"

2шт.

4

365930R1

SHAFT, drive [A] [B]

1шт.

5

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

[A] [B] #9, 3/16" x 3/4", HT

1шт.

6

365950R91

COUPLING, keyed, w/two bushings [A] [B]

1шт.

443320

NUT, lock, hex., 5/16-24NF [A] [B]

2шт.

181344

SCREW

cap, hex-hd., 5/16-24NF x 1-5/8" [A] [B]

2шт.

7

365951R1

FLANGE, adapter [A] [B]

1шт.

140868

ROLLER BEARING,1.0005" ID x 0.8125"

SCREW, set, hex-soc-hd., cup-pt., no. 10-24-NC x 1/4" [A] [B]

1шт.

8

365932R91

COUPLING, keyed, assembly [A] [B], Composed Of

1шт.

365950R91

COUPLING

1шт.

365951R1

FLANGE

1шт.

443320

NUT

2шт.

140868

ROLLER BEARING,1.0005" ID x 0.8125"

SCREW

1шт.

181344

SCREW

2шт.

9

365898R91

BRACKET, pump mounting [A] [B]

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2-13NC x 1-3/8" [A] [B]

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

[A] #9, 3/16" x 3/4", HT

1шт.

11

444486

ELBOW, street, automotive pipe, brs. 90 degrees, 3/4" [A] [B]

1шт.

12

365905R91

PUMP, hydraulic (16 gallon per minute), assembly (For components see list of parts under details of "Hydraulic Pump") [A] [B]

1шт.

103026

NUT,3/8"-24, G5

[A] [B] 3/8"-24, G5

6шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4" [A] [B]

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, [A] [B] 3/8"

6шт.

16066R1

WASHER

plain, 25/32" ID x 1-1/2" OD x No. 16 ga. [A] [B]

1шт.

13

444488

ELBOW, street, automotive pipe, brs., 90 degrees, 1" [A] [B]

1шт.

14

365908R91

HOSE, pressure, pump to reservoir, 3/4" ID x 96" [A] [B]

1шт.

119102

CAP,3/4" NPT

pipe, MI., 3/4" [A]

1шт.

15

365909R91

HOSE, suction, pump to reservoir, 1" ID x 90" [A] [B]

1шт.

108689

FITTING

CAP, pipe, MI., 1" [A]

1шт.

16

365910R1

SUPPORT, hose front [A] [B]

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

[A] [B] Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, [A] [B] 5/16"

1шт.

17

365911R1

SUPPORT, rear, hose (On engine rear support attaching screw) [A] [B]

1шт.

18

365907R1

FLANGE, reservoir, suction and pressure hose [A] [B]

1шт.

138246

HEX SOC SCREW,3/8" - 16 x 2"

cap, hex-soc-hd., 3/8-16NC x 2" [A] [B]

3шт.

19

RING, seal, reservoir flange, large (Refer to the "Hydraulic Pump, Manifold Tubes, Valves, And Connections" unit) [A]

1шт.

20

RING, seal, reservoir flange, small (Refer to the "hydraulic Pump, Manifold Tubes, Valves, And Connections" unit) [A]

1шт.

21

PLUG, filler, w/oil gage (Refer to the "Hydraulic Pump, Manifold Tubes, Valves And Connections" unit) [A]

1шт.

22

BREATHER, hydraulic reservoir (Used when allied equipment without an auxiliary reservoir is used) (Refer to the "Hydraulic Pump, Manifold Tubes, Valves And Connections" unit) [A]

1шт.

23

365912R1

PLATE, hydraulic reservoir cover [A]

1шт.

362355R3

PLUG

pipe, sq-soc-stl. [A]

1шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, cap, hex-hd., 7/16-14NC x 1-5/8" [A]

1шт.

NLS

NO LONGER SERVICED

LOCK, [A] Ext Tooth, 7/16"

1шт.

24

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, hydraulic reservoir cover plate [A]

3шт.

25

361873R11

COVER, hydraulic reservoir, assembly (For components see list of parts under details of "Hydraulic Reservoir Cover") [A]

1шт.
