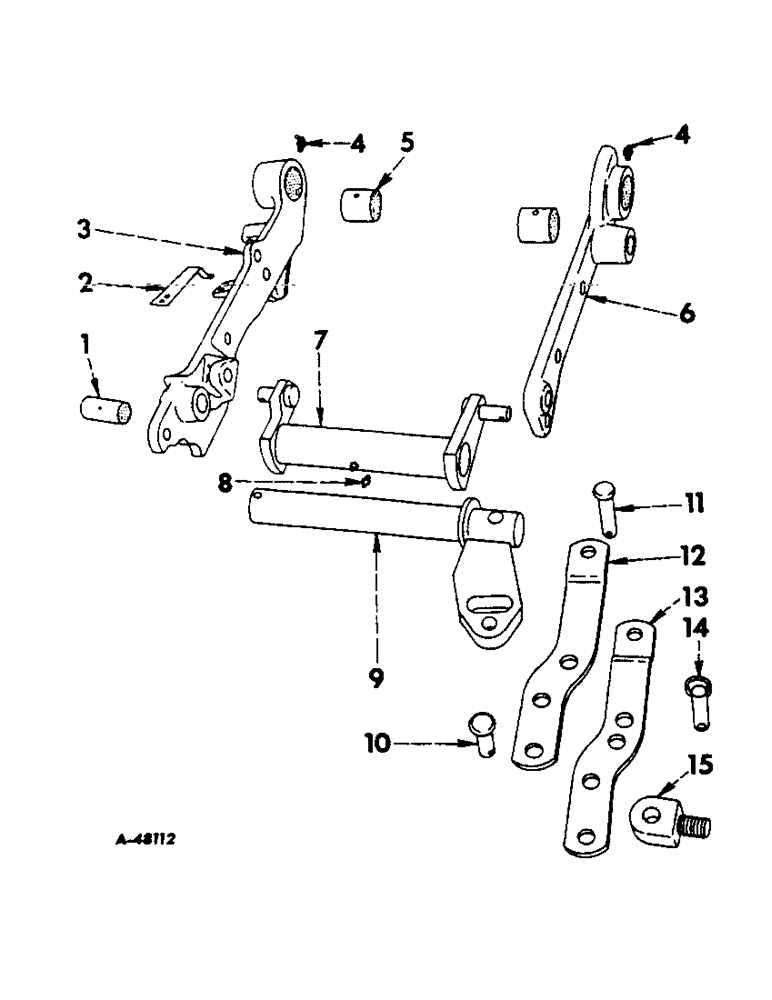

Запчасти Case IH 300 (338) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, ROCKSHAFT BEARINGS & LATERAL LIMITER Attachments

1

522705R1

BUSHING,28.63mm ID x 31.85mm OD x 53.98mm L

traction control pivot

1шт.

2

522763R1

SPRING, traction control adjusting lever (Used with plate, 522761R1) [A]

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

machine, hex-hd., 5/16-18NC x 1" [A]

1шт.

9635082

NUT,5/16" - 18, Gr 5

[A] 5/16"-18, G5

1шт.

557264R1

WASHER

plain, 11/32" ID x 3/4" OD x No. 11 ga. [A]

1шт.

2

523688R1

SPRING, traction control adjusting lever (Used with 523689R2 bearing) [A]

1шт.

2

522706R1

SPRING, traction control adjusting lever (used with 522731R2 plate)

1шт.

17424R1

BOLT,Hex, 1/4" - 20 x 1"

machine, hex-hd., 1/4-20NC x 1" [A]

2шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

machine, hex-hd., 5/16-18NC x 1" [B]

1шт.

109084

NUT,1/4"-20, G5

[A] 1/4"-20, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

[B] 5/16"-18, G5

1шт.

95-11028

WASHER,1/4"

plain, 17/64" ID x 3/4" OD x No. 16 ga. [A]

2шт.

557264R1

WASHER

plain, 11/32" ID x 3/4" OD x No. 11 ga. [B]

1шт.

3

522761R11

PLATE, side, LH rockshaft, w/bushing, 522705R1 and bushing, 523708R1 (Order plate, 523689R21, spring, 523688R1 two bolts, 17424R1, two nuts, 109084 and two washers, 103339) [A]

1шт.

3

523689R21

PLATE, side, LH rockshaft, w/bushing, 522705R1 and bushing, 523708R1 [A]

1шт.

3

522731R21

PLATE, side, LH rockshaft, w/bushing, 522705R1 and bushing, 523708R1 [B]

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (on lower screw)

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

lubrication, 67-1/2 degree elbow, 1/8" [A]

2шт.

4

271284

YOKE

lubrication, 67-1/2 degree elbow, 1/8" [B]

1шт.

5

523708R1

BUSHING,54.41mm ID x 57.56mm OD x 50.8mm L

rockshaft bearing

2шт.

6

522762R21

PLATE, side, RH rockshaft, w/bushing, 523708R1 [A]

1шт.

6

522732R21

PLATE, side, RH rockshaft, w/bushing, 523708R1 [B]

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

7

522771R91

LIMITER, lateral swing [A]

1шт.

7

523160R91

LIMITER, lateral swing [B]

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

Q3481

WASHER

plain, 1-1/32" ID x 1-1/2" OD x No. 16 ga.

1шт.

615191R1

WASHER

plain, 29/32" ID x 1-1/4" OD x No. 16 ga. (Use to take up end play) (Order as required)

1шт.

615192R1

WASHER

plain, 29/32" ID x 1-1/4" OD x No. 22 ga. (Use to take up end play) (Order as required)

1шт.

8

110161

FITTING, lubrication, straight, drive type, 3/16" [A]

1шт.

9

522778R21

SHAFT, lateral swing, w/control plate [A]

1шт.

9

523161R21

SHAFT

lateral swing, w/control plate

1шт.

119198

COTTER PIN,3/8" x 2 1/2"

PIN SPLIT (COTTER), , Extended prong [A] 3/8" x 2 1/2"

1шт.

Q3488

WASHER

plain, 1-25/32" ID x 2-1/2" OD x No. 11 ga. [A]

1шт.

Q3489

WASHER

plain, 1-25/32" ID x 2-1/2" OD x No. 16 ga. (Use to take up end play) (Order as required)

1шт.

10

523172R1

PIN,19.05mm OD x 59.53mm L

lateral swing eye bolt [A]

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), [A] 1/4" x 1 1/4"

1шт.

11

523171R1

PIN,19.05mm OD x 74.61mm L

lateral swing strap to shaft [A]

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), [A] 1/4" x 1 1/4"

1шт.

12

523132R11

STRAP, upper, lateral swing, w/pin [A]

1шт.

12

523005R11

STRAP, upper, lateral swing, w/pin

1шт.

13

523133R1

STRAP, lower, lateral swing [A]

1шт.

13

523004R1

STRAP, lower, lateral swing [B]

1шт.

14

522841R11

PIN

lateral swing lock-out

1шт.

15

522843R1

BOLT

EYEBOLT, lateral swing limiter

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Inside plates) [B] 1/8"-27 x .66 lg

2шт.

522851R1

STRAP, traction control lever guide [B]

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

machine, rd-hd., 1/4-20NC x 3/4" [B]

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, [B] 1/4"

2шт.

523388R91

1шт.

COUPLING BEAM SOCKET FILLER PLATE ATTACHMENT (Permits use of Super C, Farmall 200 and 230 fast-hitch implements on tractors equipped with fast-hitch, with traction control) (Composed of two plates, 523387R11 and two pins, 657196R1) (For illustration of component parts refer to "Drawbar And Bail" unit of "Fast-Hitch" With Traction Control - Special")

1шт.

523424R91

1шт.

FAST-HITCH DRAWBAR STABILIZER PARTS ACCESSORY (For all tractors except hi-clear or hi utility models equipped with hydra-touch system) (Provides additional bracing to prevent side swing) (Special) (Composed of brace, 523176R1 and attaching parts) (For components, refer to list of parts under details of "Drawbar And Bail" unit of "Fast-Hitch With Traction Control - Special")

1шт.

523422R91

1шт.

FAST-HITCH DRAWBAR STABILIZER PARTS ACCESSORY (For all hi-clear or hi-utility tractors equipped with hydra-touch stystem) (Provides additional bracing to prevent side swing) (Special) (Composed of braces, 523185R1 and 523186R1 and attaching parts) (For components, refer to list of parts under details of "Drawbar And Bail" unit of "Fast-Hitch With Traction Control - Special")

1шт.
