Запчасти Case IH 300 (275) - CHASSIS, TOOLS (12) - CHASSIS

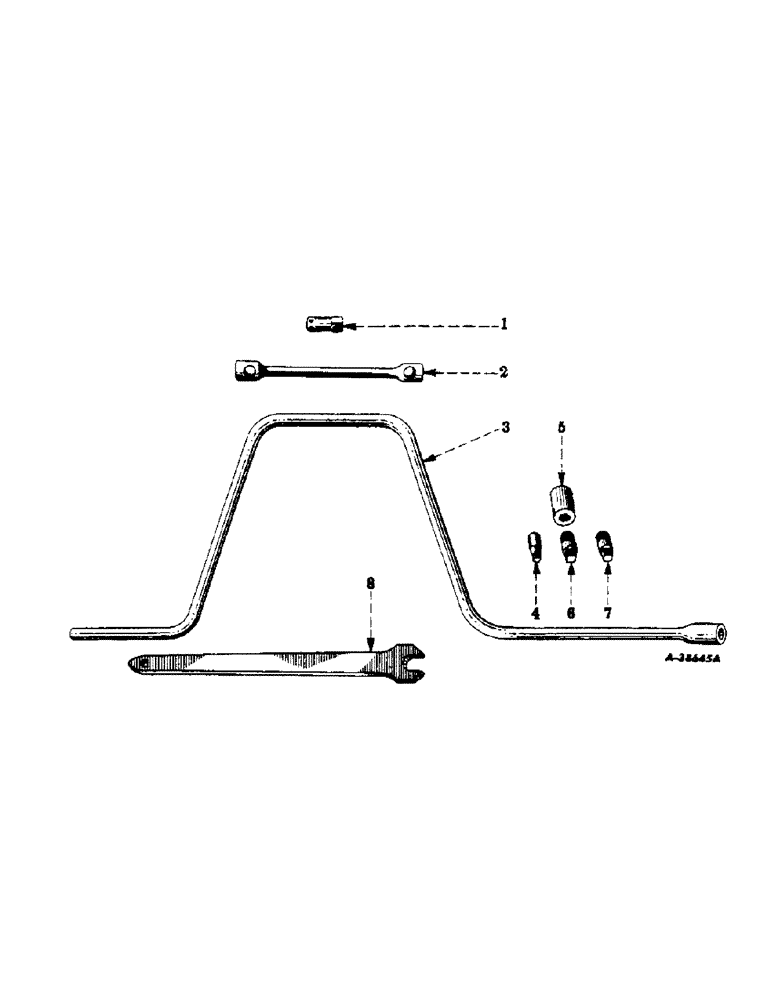

Схема запчастей Case IH 300 - (275) - CHASSIS, TOOLS (12) - CHASSIS
2
1
5
7
6
4
3
8

Артикул

Название

Примечание

Количество

1

46190DC

TOOL

WRENCH, spark plug (7/8") (For carbureted engine tractors)

1шт.

2

51298D

WRENCH, double end socket (13/16 and 1")

1шт.

3

30011DA

WRENCH, drawbar (1-5/16") (For tractors equipped with fixed drawbar)

1шт.

4

36678R1

INSERT, 1/4" male square (For square socket pipe plugs)

1шт.

5

364675R91

ADAPTER, 1/2" square drive, w/set screws (Adapts inserts for use with 1/2" square drive socket tools)

1шт.

6

364677R1

INSERT, 5/16" male square (For square socket pipe plugs)

1шт.

7

364676R1

INSERT, 3/8" male square (For square socket pipe plugs)

1шт.

8

365331R1

WRENCH, jack screw (1-1/2") (For tractors equipped with power adjusted rear wheels)

1шт.

9

363021R1

WRENCH, double end box (For International 350 Utility Hi-Clear Tractors)

1шт.

Выбрано товаров: 9
