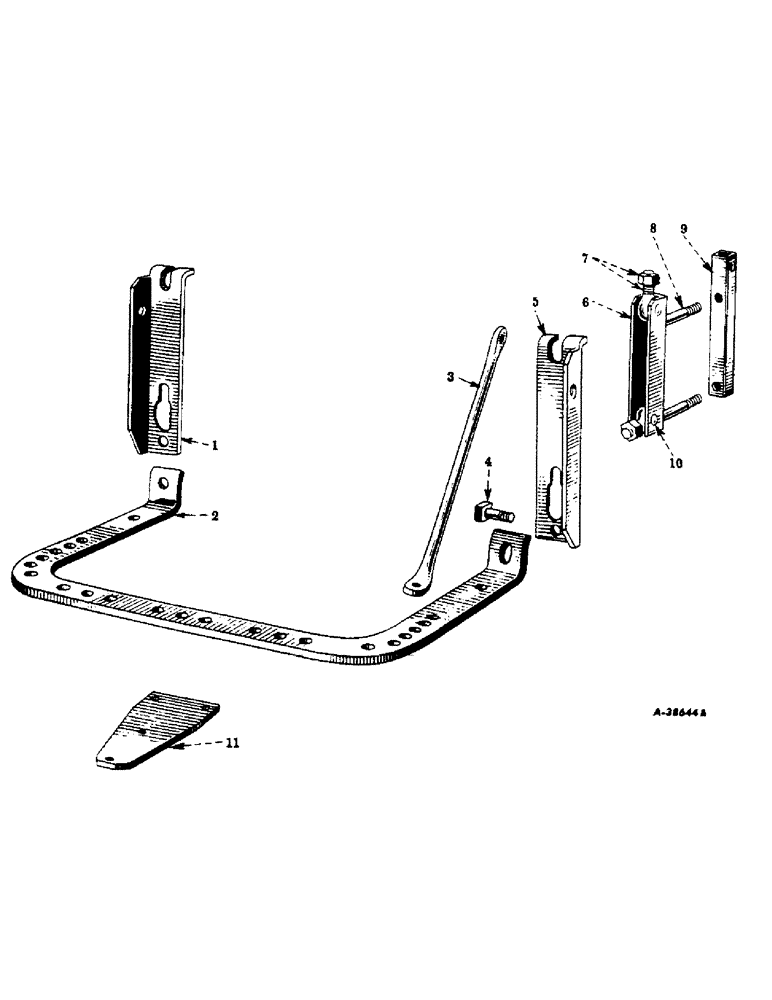

Запчасти Case IH 300 (273) - CHASSIS, FIXED DRAWBAR, FOR TRACTORS WITHOUT FAST-HITCH (12) - CHASSIS

1

363990R1

ANGLE, drawbar, L.H.

1шт.

2

57227DB

DRAWBAR

1шт.

3

363992R1

BRACE, drawbar

2шт.

220081

NUT

hex., 3/4-10NC

4шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2-1/4"

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

drawbar pivot

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

363991R1

ANGLE, drawbar, R.H.

1шт.

6

51716DXB

CHANNEL

attaching, drawbar, assembly, Composed Of

2шт.

43685D

BOLT

2шт.

51716D

CHANNEL (NSS)

1шт.

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT

2шт.

103031

TROUGH

NUT

2шт.

43690D

PIN

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT, drawbar, w/nut, 357790R1 and washer, Q1552

4шт.

357790R1

NUT

drawbar eyebolt

4шт.

Q1552

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x No. 10 ga.

4шт.

8

43685D

BOLT

attaching, drawbar

4шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

51715DA

CLAMP, attaching, drawbar

2шт.

10

43690D

PIN

drawbar, eyebolt

4шт.

11

66426D

PLATE, drawbar extension provides standardized power take-off hitch (For tractors equipped with independent or transmission driven power take-off)

1шт.

220081

NUT

hex., 3/4-10NC

2шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2" (Operating handle mounting bracket screw)

1шт.

+ - For tractors equipped with independent power take-off. NOTE A - A complete fixed drawbar field attachment can be obtained by assembling the parts listed in this unit from parts stock.

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2" (Fender attaching screws)

8шт.

+ - For tractors equipped with independent power take-off. NOTE A - A complete fixed drawbar field attachment can be obtained by assembling the parts listed in this unit from parts stock.

1шт.

72691R1

SPACER, operating handle mounting bracket (1-1/32" long) (Illustrated with fenders)

6шт.

+ - For tractors equipped with independent power take-off. NOTE A - A complete fixed drawbar field attachment can be obtained by assembling the parts listed in this unit from parts stock.

1шт.

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

fender (1-1/2" long) (Illustrated with fenders)

6шт.

+ - For tractors equipped with independent power take-off. NOTE A - A complete fixed drawbar field attachment can be obtained by assembling the parts listed in this unit from parts stock.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (On fender and mounting bracket screw) 1/2"

9шт.

+ - For tractors equipped with independent power take-off. NOTE A - A complete fixed drawbar field attachment can be obtained by assembling the parts listed in this unit from parts stock.

1шт.

30011DA

WRENCH, drawbar (1-5/16")

1шт.
