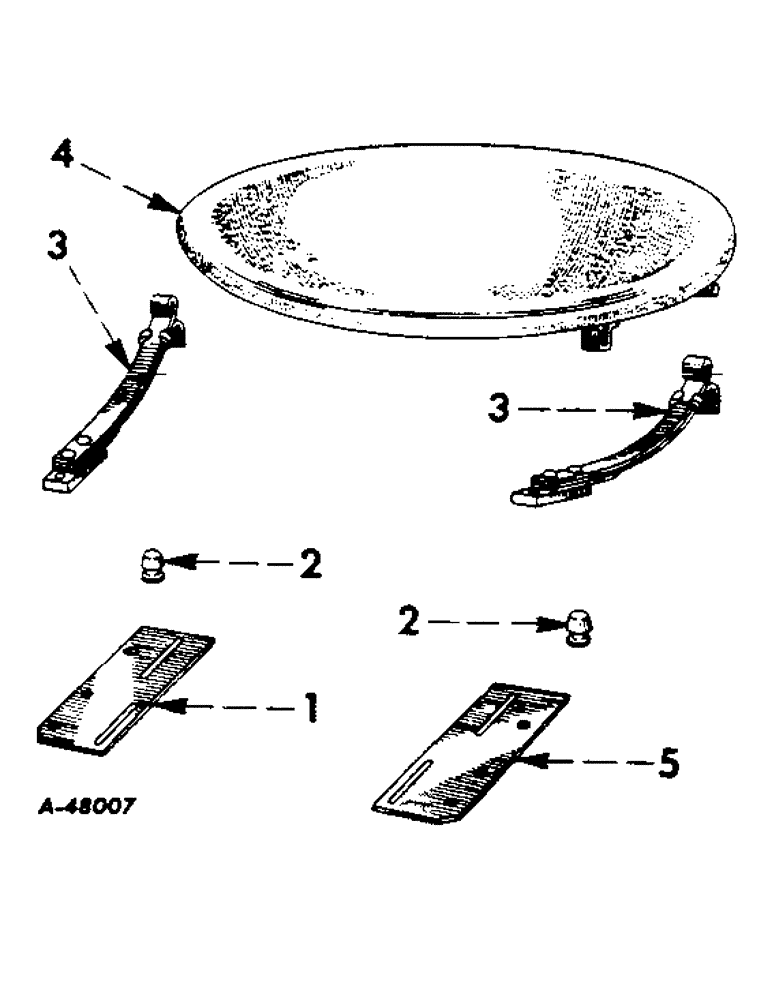

Запчасти Case IH 300 (272) - CHASSIS, SEAT AND SUPPORTS, FOR TRACTORS EQUIPPED WITH LOW SEAT (12) - CHASSIS

1

365385R1

PLATE, low seat mounting

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14NC

2шт.

365386R1

STUD, seat mounting plate, short (8-13/16")

1шт.

365387R1

STUD, seat mounting plate, long (9")

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

496-21047

WASHER

plain, 15/32" ID x 59/64" OD x No. 16 ga.

4шт.

2

365388R1

SUPPORT, rubber, leaf spring

2шт.

3

365383R91

SPRING, seat, w/mounting block, clip, three leaves, rivet, 104167, and two rivets, 12252R1

2шт.

104167

RIVET,Csk, 1/4" x 13/16"

csk-hd., 90 degrees, 1/4 x 3/4"

4шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

354157R92

SEAT

deluxe upholstered

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

350515R1

WASHER

plain, 21/32" ID x 1" OD x No. 16 ga., seat spring retainer

2шт.

5

365385R1

PLATE, low seat mounting

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

365386R1

STUD, seat mounting plate, short (8-13/16")

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

496-21047

WASHER

plain, 15/32" ID x 59/64" OD x No. 16 ga.

4шт.
