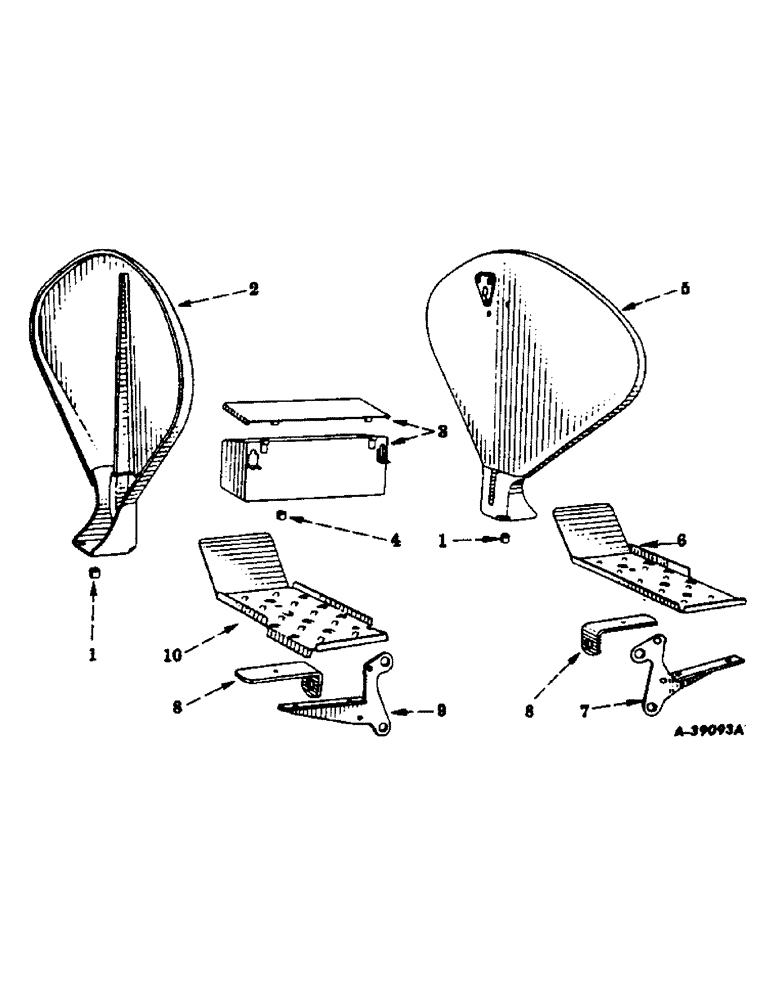

Запчасти Case IH 300 (269) - CHASSIS, FENDERS, PLATFORMS AND TOOL BOX, NOT USED ON TRACTORS EQUIPPED W/ORCHARD TRACTOR PARTS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
18279D
SPACER, fender (1/2" long) (4 used under LH fender) (Note A)
6шт.
363830R1
SPACER,1/2" X-Strng Pipe x 1 1/2"
fender (1-1/2" long) (4 used under LH fender) (Note B)
6шт.
2
51500DB
FENDER, RH (For International 350 Utility Series Tractors)
1шт.
2
362130R91
FENDER, RH (Not illustrated) (For International 300 Utility Tractors)
1шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
SCREW, cap, hex-hd., 1/2-13NC x 1-1/8" (Not used on tractors equipped with independent power take-off)
4шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
(Note A) Hex, 1/2"-13 x 1 1/2", G5, Full Thd
4шт.
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
SCREW, cap, hex-hd., 1/2-13NC x 2-1/2" (Note B)
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
3
362961R91
TOOL BOX, w/cover and two pins, 265923R1 (For carbureted engine tractors without auxiliary fuel tank)
1шт.
3
365716R91
TOOL BOX, w/cover and two pins, 265923R1 (Not illustrated) (For diesel engine tractors)
1шт.
265923R1
LOCK PIN,3/16" x 1 1/4", Slotted
Pin, (hinge pin) 3/16" x 1 1/4", Slotted
2шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
SCREW, cap, hex-hd., 5/16-18NC x 1/2" (Used with 365716R91)
2шт.
179875
BOLT,Hex, 1/2" - 13 x 1/2", Gr 5
SCREW, cap, hex-hd., 1/2-13NC x 1-1/2"
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
4
362965R1
SPACER, tool box (For International 300 Utility Tractors without rock shaft)
1шт.
5
366298R91
FENDER, LH (For International 350 Utility Series Tractors)
1шт.
5
51500DB
FENDER, LH (Not illustrated) (For International 300 Utility Tractors)
1шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
SCREW, cap, hex-hd., 1/2-13NC x 1-1/8" (Not used on tractors equipped with independent power take-off)
4шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
(Note A) Hex, 1/2"-13 x 1 1/2", G5, Full Thd
4шт.
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
SCREW, cap, hex-hd., 1/2-13NC x 2-1/2" (Note B)
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
6
361730R3
PLATFORM, LH (For International 300 Utility Tractor) (S/N 31927 up)
1шт.
6
361730R3
PLATFORM, LH (For International 350 Utility Series Tractor) (S/N 501 up)
1шт.
157732
SCREW, machine, truss-hd., cross-recess., 1/4-20 x 3/4"
3шт.
115547
LOCK WASHER,Int Tooth, 1/4"
WASHER, lock, external-tooth, 1/4"
3шт.
6
365975R91
PLATFORM, LH, w/bracket (Not illustrated) (Will work for 361730R21) (For International 300 Utility Tractor) (S/N, Serial Range: 501-31926)
1шт.
14993R1
BOLT, carriage, sq-nk., 1/4-20NC x 3/4"
3шт.
109084
NUT,1/4"-20, G5
3шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
7
361727R1
BRACKET, front, LH platform (Not illustrated) (For International 300 Utility Tractor) (S/N, Serial Range: 501-31926)
1шт.
7
365974R1
BRACKET, front, LH platform (For International 300 Utility Tractor) (S/N 31927 up)
1шт.
7
365974R1
BRACKET, front, LH platform (For International 350 Utility Tractor) (S/N 501 up)
1шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"
2шт.
114609
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
2шт.
8
362463R1
BRACKET, rear, platform
2шт.
NLS
NO LONGER SERVICED
SCREW, cap, hex-hd., 3/4-10NC x 1-1/2" (For LH bracket)
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, (For LH bracket) 3/4"
1шт.
9
361728R1
BRACKET, front RH platform (Not used on tractors equipped, w/foot pedal accelerator)
1шт.
271563
SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5
SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"
2шт.
114609
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8"
2шт.
9
367930R1
BRACKET, front RH platform (For tractors equipped w/foot pedal accelerator) (Not illustrated)
1шт.
10
361731R2
PLATFORM, RH (Will work for 361731R11) (Not used on tractors equipped, w/foot pedal accelerator)
1шт.
14993R1
BOLT, carriage, sq-nk., 1/4-20NC x 3/4"
3шт.
109084
NUT,1/4"-20, G5
3шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
