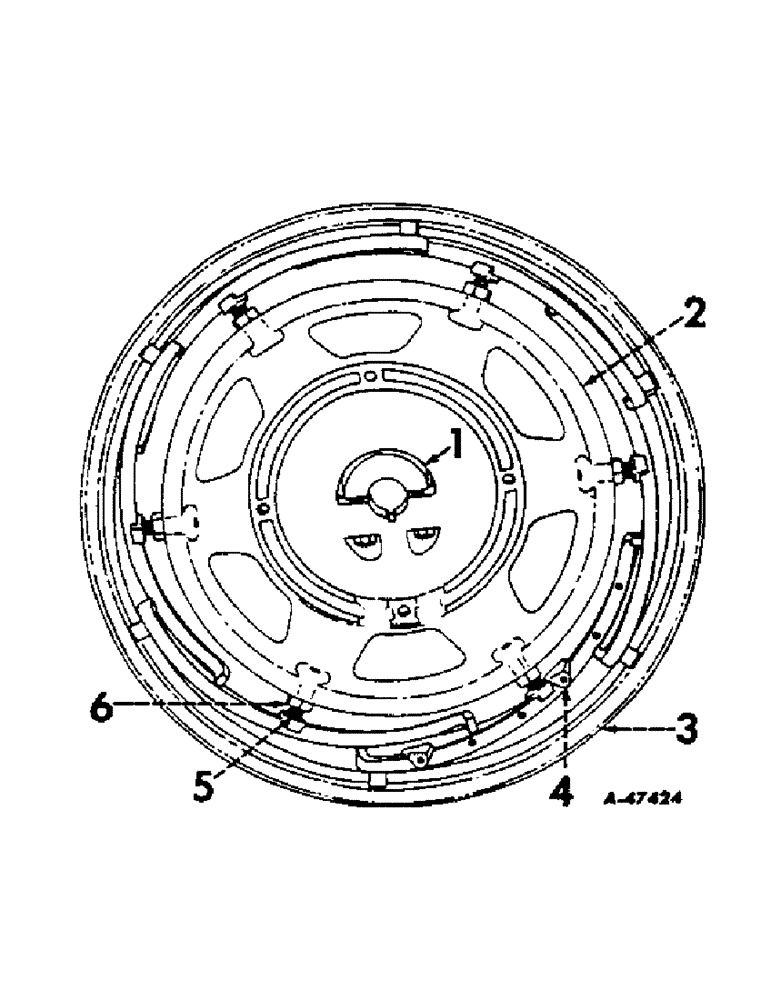

Запчасти Case IH 300 (268) - CHASSIS, REAR WHEELS, FOR HI-CLEAR OR HI-UTILITY TRACTOR EQUIPPED W/POWER ADJUSTABLE REAR WHEELS (12) - CHASSIS

1

363020R1

CLAMP

hub, rear wheel

4шт.

271642

ELBOW

cap, hex-hd., 3/4-16NF x 4"

8шт.

2

366115R11

WHEEL, rear, w/key, 364699R1

2шт.

364699R1

KEY, drive, rear wheel

2шт.

3

366102R91

RIM, rear wheel, w/six rails (W11-38 rim for 124.38 tire)

2шт.

3

366103R91

RIM, rear wheel, w/six rails (W12-38 rim for 13 6-38 tire)

2шт.

4

365327R2

STOP

BODY, rear wheel stop

4шт.

365326R1

SCREW

rear wheel stop

4шт.

5

366104R1

JACK SCREW,1" - 16 x 3.34"

rear wheel jack

12шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

rear wheel jack screw

12шт.

366106R1

WRENCH, jack screw, (1-11/16") (Illustrated with tools)

1шт.
