Запчасти Case IH 300 (266) - CHASSIS, REAR WHEELS (12) - CHASSIS

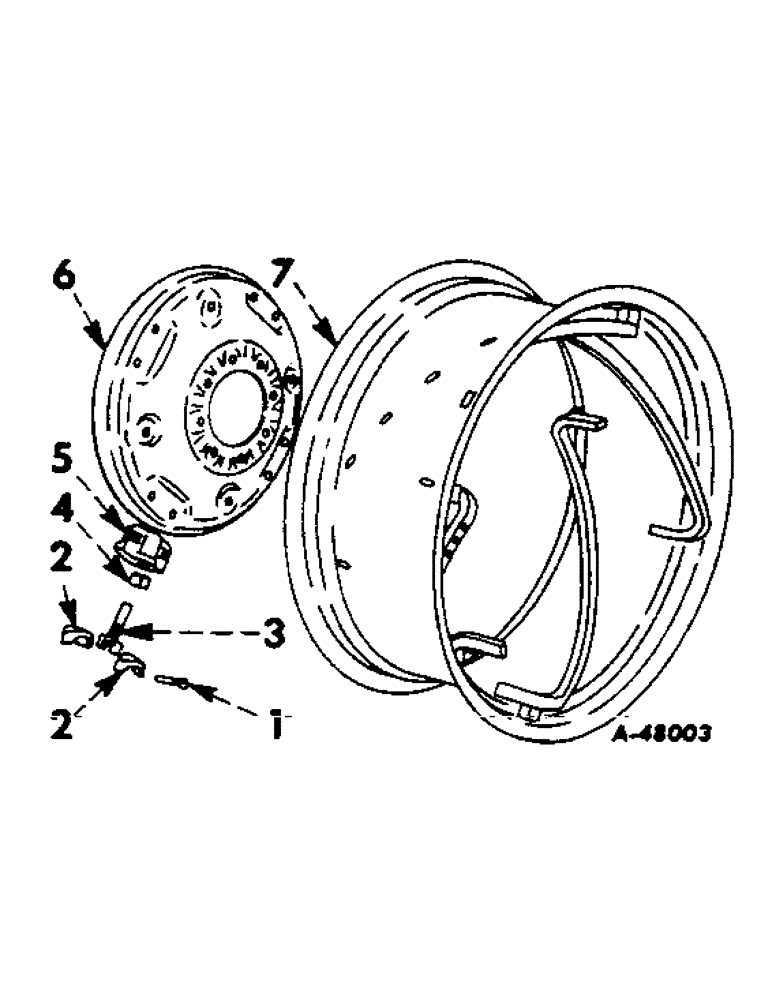

Схема запчастей Case IH 300 - (266) - CHASSIS, REAR WHEELS (12) - CHASSIS
5
6
2
7
1
2
3
4

Артикул

Название

Примечание

Количество

1

365326R1

SCREW

power adjusted rear wheel stop

4шт.

2

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

3

365329R1

JACK SCREW

power adjusted rear wheel jack

8шт.

4

365328R1

NUT

power adjusted rear wheel jack screw

8шт.

5

365330R1

BODY

power adjusted rear wheel jack screw

8шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, carriage, sq-nk., cd-pltd., 5/8-11NC x 1-1/2"

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex., cd-pltd., 5/8-11NC

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

6

365325R1

DISC, power adjusted rear wheel

2шт.

364451R1

BOLT,9/16" - 18 x 1 7/32"

rear wheel mounting (7/8" hex.) (Not necessary to include these parts in a field attachment)

16шт.

7

365324R92

RIM

power adjusted rear wheel., w/four rails (W-12-28 rim for 12-28 tire)

2шт.

365331R1

WRENCH, jack screw (1-1/2")

1шт.

Выбрано товаров: 12
