Запчасти Case IH 300 (265) - CHASSIS, REAR WHEELS (12) - CHASSIS

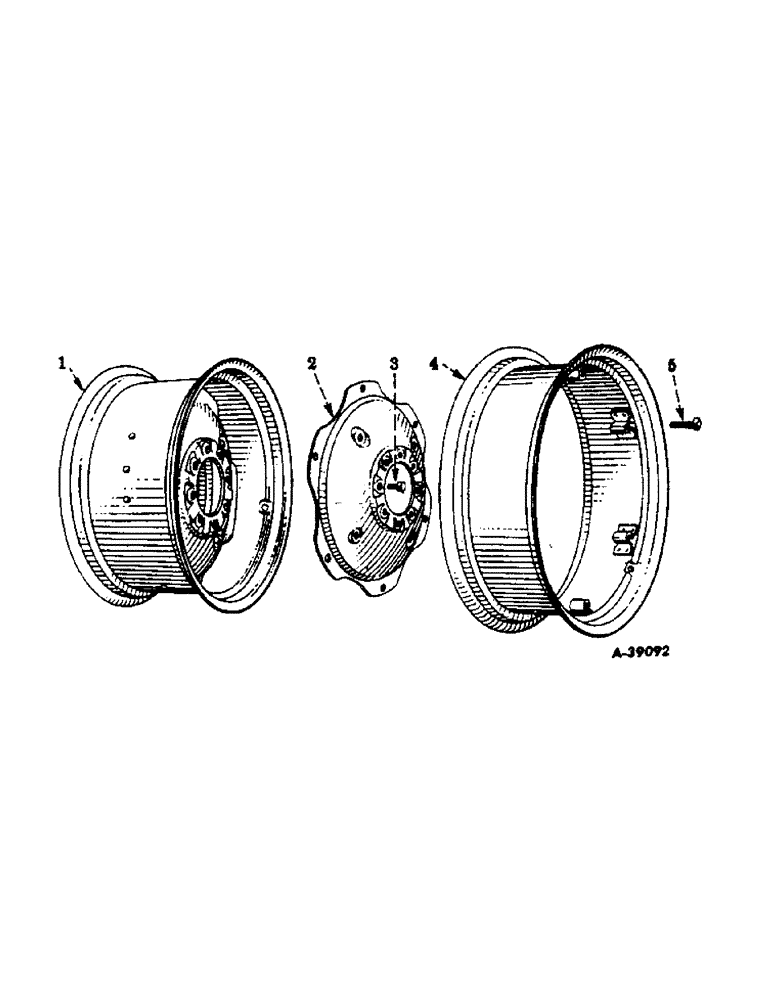

Схема запчастей Case IH 300 - (265) - CHASSIS, REAR WHEELS (12) - CHASSIS
3
1
5
2
4

Артикул

Название

Примечание

Количество

SERVICE PARTS FOR TRACTORS EQUIPPED WITH SINGLE REAR WHEELS (Column A)

1шт.

SERVICE PARTS FOR TRACTORS EQUIPPED WITH DUAL REAR WHEELS (SEE NOTE C) (Column B)

1шт.

363989R91

WHEEL

rear, W-12-28 rim assembly, Composed Of [A]

2шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

6шт.

361724R1

WHEEL DISC

DISC

1шт.

357099R2

NUT

6шт.

363988R91

RIM

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

6шт.

364444R91

WHEEL ASSY.

WHEEL, rear, W-10-28 rim assembly, Composed Of [A]

2шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

6шт.

361724R1

WHEEL DISC

DISC

1шт.

357099R2

NUT

6шт.

361700R91

RIM

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

6шт.

364444R91

WHEEL ASSY.

WHEEL, rear, W-10-28 rim assembly, Composed Of [B]

4шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

6шт.

361724R1

WHEEL DISC

DISC

1шт.

357099R2

NUT

6шт.

361700R91

RIM

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

6шт.

1

364346R92

WHEEL

rear (One piece disc type, W-12-24 rim for 12-24, 13-24 or 14-24 tire) [A]

2шт.

1

365480R91

WHEEL

rear (One piece disc type, W-16-24 rim for 14-24 tire) [A]

2шт.

2

361724R1

WHEEL DISC

DISC, rear wheel (See Note B) [A]

2шт.

2

361724R1

WHEEL DISC

DISC, rear wheel (See Note B) [B]

4шт.

364896R1

STUD, rear wheel mounting (Used to locate the wheel disc on the hub) [B]

2шт.

3

51485D

BOLT,9/16" - 18 x 1 7/32"

rear wheel mounting (13/16" hex.) [A]

16шт.

3

364451R1

BOLT,9/16" - 18 x 1 7/32"

rear wheel mounting (7/8" hex.) [A]

16шт.

3

364895R1

BOLT,9/16" - 18 x 1.59"

rear wheel mounting (7/8" hex.) [A]

16шт.

3

368114R1

BOLT,Hex, 9/16" - 18 x 1.78"

rear wheel mounting [A]

16шт.

124634

NUT,9/16"-18, G5

[A] 9/16"-18, G5

16шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, [A] 9/16"

16шт.

4

361700R91

RIM

rear wheel, w/six clamps (W10-28 demountable rim for 10-28 or 11-28 tire) (See Note B) [A]

2шт.

4

361700R91

RIM

rear wheel, w/six clamps (W10-28 demountable rim for 10-28 or 11-28 tire) (See Note B) [B]

4шт.

4

363988R91

RIM

rear wheel, w/six clamps (W12-28 demountable rim for 12-28 tire) (See Note B) [A]

2шт.

5

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp (See Note B) [A]

12шт.

5

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp (See Note B) [B]

24шт.

357099R2

NUT

rear wheel rim clamp bolt (See Note B) [A]

12шт.

357099R2

NUT

rear wheel rim clamp bolt (See Note B) [B]

24шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, (See Note B) [A] 5/8"

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, (See Note B) (B] 5/8"

24шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

plain, cd-pltd., 21/32" ID x 1-5/16" OD x No. 13 ga. (See Note B) [A]

12шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

plain, cd-pltd., 21/32" ID x 1-5/16" OD x No. 13 ga. (See Note B) [B]

24шт.

364894R91

PACKAGE, bolt, dual rear wheel mounting (For tractors equipped with W10-28" demountable rims) (See Note C) (Consists of 16 bolts, 364895R1 and 2 studs, 364896R1) [B]

1шт.

367864R91

PARTS ACCESSORY, dual rear wheel spacer (Consists of two spacers, 367865R1, sixteen screws, 181457 and sixteen washers, 103324) [B]

1шт.
