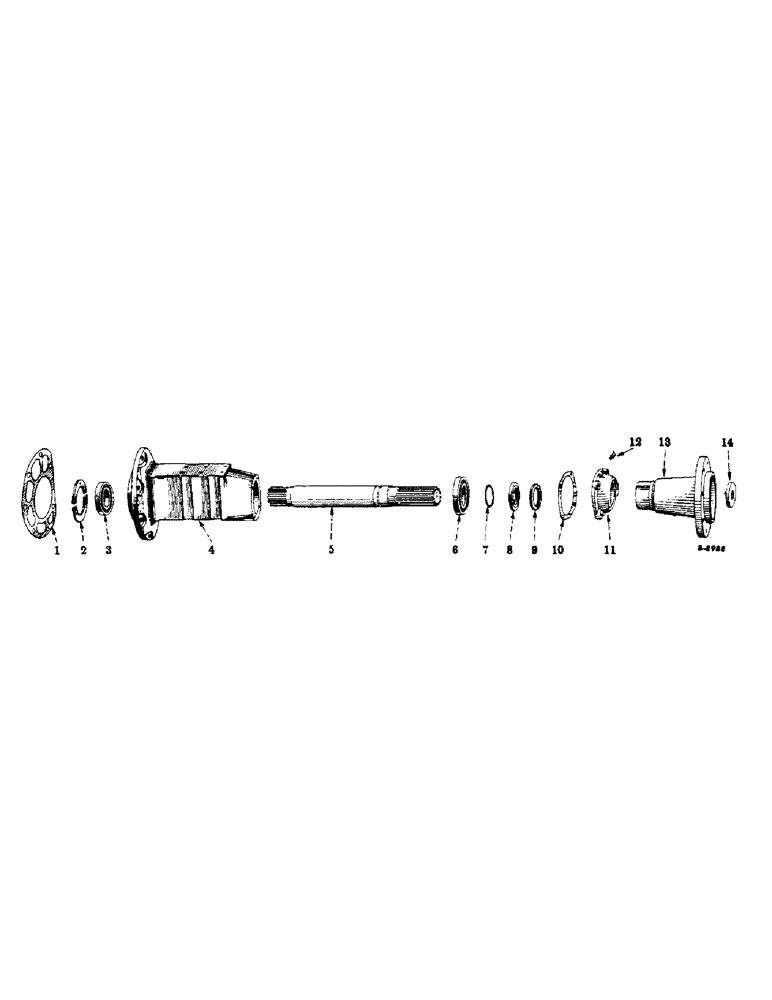

Запчасти Case IH 300 (263) - CHASSIS, REAR AXLE (12) - CHASSIS

1

360543R1

GASKET

rear axle carrier

2шт.

2

360545R1

SUPPORT

RETAINER, rear axle ball bearing, inner

4шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

ST218

BEARING

ball (Rear axle, inner)

2шт.

4

360541R1

CARRIER, rear axle, L.H. (Not illustrated)

1шт.

361856R1

SCREW

rear axle carrier

14шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

5

361585R2

SHAFT

AXLE, rear (For all tractors except Hi-Clear or Hi-Utility models)

2шт.

5

360544R2

AXLE, rear (For all Hi-Clear or Hi-Utility Tractors)

2шт.

6

ST328A

BALL BEARING,65mm ID x 120mm OD x 23mm W

BEARING, ball (Rear axle, outer)

2шт.

7

60628D

O-RING,2-1/2" ID x 5/32" Width

seal, rear axle hub

2шт.

8

60625D

SEAL

OIL SEAL, rear axle, outer (For all tractors except Hi-Clear or Hi-Utility models)

2шт.

8

43722D

SEAL

OIL SEAL, rear axle, outer (For all Hi-Clear or Hi-Utility Tractors)

2шт.

9

60627D

WASHER,83.34mm ID x 98.42mm OD x 7.92mm Thk

felt, rear axle (For all tractors except Hi-Clear or Hi-Utility models)

2шт.

9

43720D

SEALING WASHER,62.71mm ID x 84.93mm OD x 7.94mm Thk

WASHER, felt, rear axle (For all Hi-Clear or Hi-Utility Tractors)

2шт.

10

48463D

GASKET

rear axle carrier cap

2шт.

11

361580R11

CAP

rear axle carrier, w/oil seal, 60625D and washer, 60627D (For all tractors except Hi-Clear or Hi-Utility models)

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

6669DBX

CAP, rear axle carrier, w/oil seal, 43722D and washer, 43720D (For all Hi-Clear or Hi-Utility Tractors)

2шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

12

271284

YOKE

lubrication 67-1/2 degree elbow, 1/8" (Optional with 109460) (For all tractors except Hi-Clear or Hi-Utility models)

2шт.

12

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication 67-1/2 degree elbow, 1/8" (Optional with 271284) (For all tractors except Hi-Clear or Hi-Utility models)

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (Rear axle outer bearing) (For all Hi-Clear or Hi-Utility Tractors) 1/8"-27 x .66 lg

2шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461) (Rear axle outer bearing) (For all Hi-Clear or Hi-Utility Tractors)

2шт.

13

361583R1

HUB

rear axle

2шт.

14

352976R92

WASHER

retainer, rear wheel hub, w/pin

2шт.

271632

SEAL KIT

SCREW, cap, hex-hd., 3/4-16NF x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
