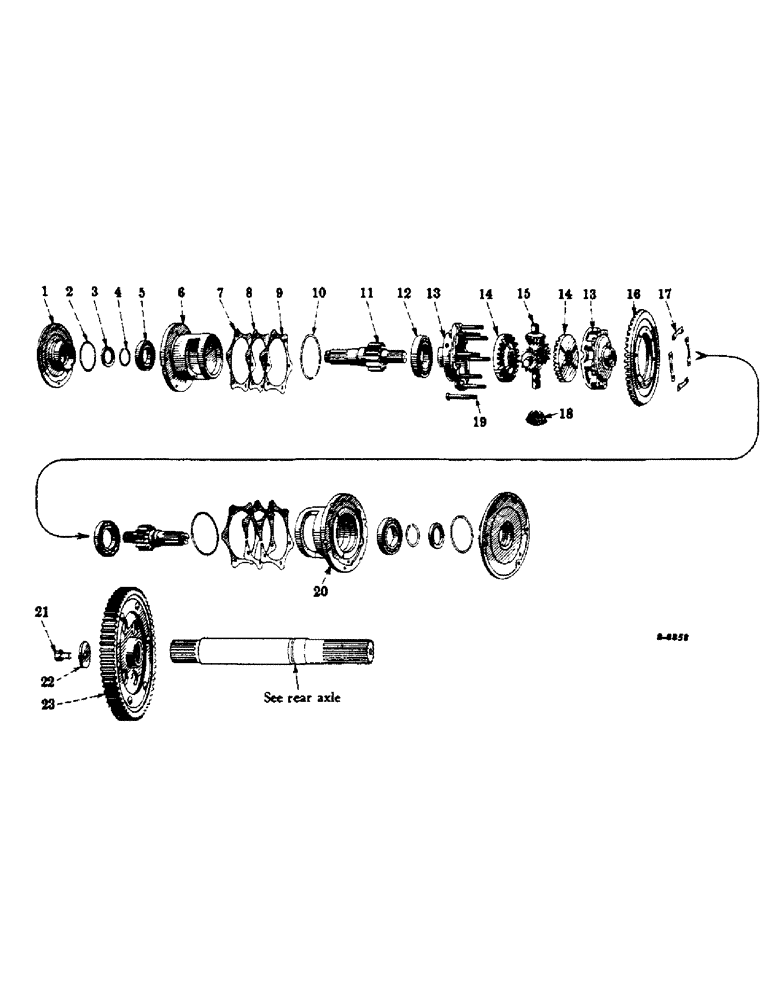

Запчасти Case IH 300 (262) - CHASSIS, REAR AXLE DIFFERENTIAL (12) - CHASSIS

1

358100R11

RETAINER, bull pinion shaft bearing, w/oil seal, 20290D and ring, 358101R1

2шт.

2

358101R1

O-RING,0.551" ID x 0.07" Width

RING, seal, bull pinion shaft bearing retainer

2шт.

3

20290D

OIL SEAL

OIL SEAL, bull pinion shaft

2шт.

3

357770R91

SEAL

OIL SEAL, bull pinion shaft

2шт.

3

357774R91

SEAL

OIL SEAL, bull pinion shaft

2шт.

4

358059R1

SNAP RING

RING, snap, bull pinion and brake shaft

2шт.

5

ST279

BALL BEARING

BEARING, ball (Bull pinion and brake shaft)

2шт.

6

358057R11

CAGE, bull pinion shaft bearing, L.H., w/ring, 4222D

1шт.

357034R1

BOLT

SCREW, cap, bull pinion shaft bearing cage

6шт.

7

358098R1

SHIM

bull pinion shaft bearing cage, light (.007")

1шт.

8

358061R1

SHIM

bull pinion shaft bearing cage, medium (.015")

2шт.

9

358060R1

SHIM

bull pinion shaft bearing cage, heavy (.030")

2шт.

10

4222D

SEAL

RING, seal, bull pinion shaft bearing cage

2шт.

11

358056R2

PINION, bull (12 teeth), and brake shaft

2шт.

12

ST218

BEARING

ball (Differential)

2шт.

13

358054R31

CASE, differential (2 halves) L.H. and R.H.

1шт.

14

360962R1

BEVEL GEAR

GEAR, bevel, differential (28 teeth)

2шт.

15

20731DA

SPIDER, differential

1шт.

16

360536R1

GEAR, bevel drive (49 teeth) (For all tractors except Hi-Clear or Hi-Utility models)

1шт.

16

362570R1

WHEEL

GEAR, bevel drive (49 teeth) (For all Hi-Clear or Hi-Utility Tractors)

1шт.

17

43699D

STRIP

PLATE, lock, differential case bolt

4шт.

18

360961R1

GEAR

PINION, bevel, differential (15 teeth)

4шт.

19

48471D

BOLT (SPREADER),7/16" - 20 x 4"

BOLT, differential case

8шт.

271505

BODY

hex., 7/16-20NF

8шт.

20

358058R11

CAGE, bull pinion shaft bearing, R.H., w/ring, 4222D

1шт.

357034R1

BOLT

SCREW, cap, bull pinion shaft bearing cage

6шт.

21

271632

SEAL KIT

SCREW, cap, hex-hd., 3/4-16NF x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

22

49673DA

WASHER, bull gear retainer

2шт.

23

360537R92

GEAR, bull (66 teeth), w/hub and six rivets, 19413R1 (Optional with 360538R92)

2шт.

23

360538R92

GEAR, bull (66 teeth), w/hub and six rivets, 19413R1 (Optional with 360537R92)

2шт.

19413R1

RIVET, slt., wagon-box-hd., unannealed, 1/2 x 1-3/4"

12шт.
