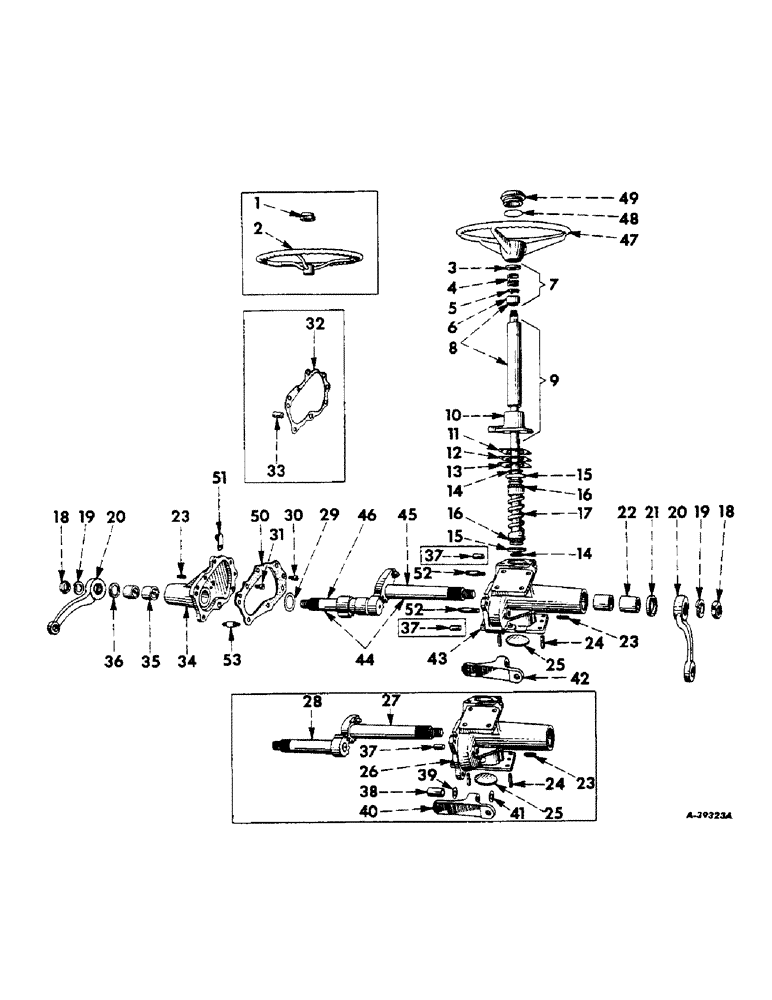

Запчасти Case IH 300 (247) - CHASSIS, STEERING GEAR, FOR TRACTORS WITHOUT POWER STEERING (12) - CHASSIS

363115R99

GEAR, steering, assembly (Composed of parts listed in this unit except as noted)

1шт.

1

364360R1

NUT

steering wheel (See Note A) (For International 300 Series Utility Tractors)

1шт.

2

363227R91

WHEEL, steering (See Note A) (For International 300 Series Utility Tractors)

1шт.

3

364149R1

WASHER

FELT, jacket tube dust seal (For International 300 Series Utility Tractors) (S/N, Serial Range: 501-27391)

1шт.

3

366142R91

OIL SEAL

OIL SEAL, upper cover (Will work for 364149R1)

1шт.

4

88474H

VALVE SPRING

SPRING, jacket tube bearing

1шт.

5

91808R1

PACKING RING

SEAT, jacket tube bearing spring

1шт.

6

91811R91

BEARING ASSY

steering wheel tube

1шт.

7

88771HA

BEARING

91811R91, w/seat, 91808R1 and spring, 88474H

1шт.

8

364624R91

TUBE, steering wheel tube jacket, w/bearing, 91811R91

1шт.

9

364623R91

TUBE, 364624R91, w/cover, 364625R1

1шт.

10

364625R1

COVER, upper, steering gear

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

75096H

SHIM

housing upper cover (.002")

1шт.

12

75097H

SHIM

housing upper cover (.003")

1шт.

13

75098H

SHIM

housing upper cover (.010")

1шт.

14

68061H

RING

cam retaining (Same as 364619R1)

2шт.

15

68060H

BEARING CUP

CUP, steering wheel cam ball (Same as 364618R1)

2шт.

16

16010R1

BALL

chrome stl., 5/16" dia.

28шт.

17

364617R91

TUBE

CAM, w/steering wheel tube

1шт.

17

364616R91

TUBE

CAM, assembly, Composed Of

1шт.

16010R1

BALL

28шт.

364617R91

TUBE

CAM

1шт.

68061H

RING

CUP

2шт.

68060H

BEARING CUP

RING

2шт.

18

62643V

NUT

shaft (Same as 364303R1)

2шт.

19

121326

WASHER,1"

LOCK, 1"

2шт.

20

363114R1

ARM, steering gear (8-7/16" long) (Not illustrated) (See Notes A and D) (For International 300 Utility Tractors) (S/N, Serial Range: 501-26457)

2шт.

20

366695R1

ARM

steering gear (11" long) (Will work for 365440R1) (See Note A) (For International 300 Utility Tractor) (S/N 26458 up)

2шт.

20

366695R1

ARM

steering gear (11" long) (Will work for 365440R1) (See Note A) (For International 350 Utility Tractor) (S/N 501 up)

2шт.

21

94073R91

OIL SEAL

steering gear main housing (Same as 364297R91)

1шт.

22

75080HA

BUSHING,34.82mm ID x 38.18mm OD x 38.1mm L

lever shaft

2шт.

23

50443H

ADJUSTMENT SCREW

adjusting

2шт.

68016H

NUT

lock, adjusting screw

2шт.

24

364613R1

PIN

dowel, steering gear main housing

2шт.

25

172578

PLUG,Exp, 1 3/4"

expansion, 1-3/4"

1шт.

26

HOUSING, steering gear main (Order housing - see ref. 43) (See Note A)

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (Filler plug) (See Note A)

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8" (6 used) (See Note A) (For International 300 Utility Tractor) (S/N, Serial Range: 501-10925)

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

SCREW, steering gear main housing (1-1/2" long) (See Note A) (For International 300 Utility Tractor) (S/N 10926 up)

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

6шт.

27

SHAFT, lever, w/sector gear (4 teeth) (Order package - see ref. 44) (See Notes A and C) (For International 300 Utility Tractor) (S/N, Serial Range: 501-5000)

1шт.

27

364620R92

SHAFT

lever, w/sector gear (Four-5/7 pitch stub teeth) nut, 62643V and washer, 121326 (See Notes A and C) (Order package - see ref. 44) (For International 300 Utility Tractor) (S/N 5001 up)

1шт.

27

364620R92

SHAFT

lever, w/sector gear (Four-5/7 pitch stub teeth) nut, 62643V and washer, 121326 (See Notes A and C) (Order package - see ref. 44) (For International 350 Utility Tractor) (S/N 501 up)

1шт.

28

SHAFT, gear, w/integral sector gear (5 teeth) (Order package - see ref. 44) (See Notes A and C) (For International 300 Utility Tractor) (S/N, Serial Range: 501-5000)

1шт.

28

364621R92

SHAFT

gear, w/integral sector gear (Five-5/7 pitch stub teeth) nut, 62643V and washer, 121326 (See Notes A and C) (Order package - see ref. 44) (For International 300 Utility Tractor) (S/N 5001 up)

1шт.

28

364621R92

SHAFT

gear, w/integral sector gear (Five-5/7 pitch stub teeth) nut, 62643V and washer, 121326 (See Notes A and C) (Order package - see ref. 44) (For International 350 Utility Tractor) (S/N 501 up)

1шт.

29

364627R1

WASHER, thrust, gear shaft end

1шт.

30

364626R1

SCREW, eccentric adjusting

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

31

364626R1

SCREW, eccentric lock

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

32

364510R1

GASKET

steering gear housing trunnion cover (Used on 365235R92 cover)

1шт.

33

364936R1

BUSHING, dowel (Will work for 364615R1 or 364909R1) (Ream the holes in the housing and cover to size - also when used on International 300 Utility Tractor cut to the actual length needed) (S/N, Serial Range: 501-10925)

1шт.

34

365235R92

COVER, steering gear housing trunnion, assembly (Will work for 364614R92) (Uses dowel bushings), Composed Of

1шт.

75080HA

BUSHING,34.82mm ID x 38.18mm OD x 38.1mm L

2шт.

364936R1

BUSHING

1шт.

365342R1

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

COVER

1шт.

94073R91

OIL SEAL

1шт.

103026

NUT,3/8"-24, G5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (6 used on tractors without the stabilizer bracket)

4шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8" (In rear upper dowel bushing) (See Note B)

1шт.

181376

BOLT,Hex, 3/8" - 24 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-5/8" (In front upper dowel bushing) (See Note B)

1шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 2-1/4" (In lower dowel bushing)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

78524R1

WASHER, plain, dowel bushing screw

2шт.

34

368796R91

COVER, trunnion housing, assembly (Uses dowel studs), Composed Of

1шт.

75080HA

BUSHING,34.82mm ID x 38.18mm OD x 38.1mm L

2шт.

94073R91

OIL SEAL

1шт.

368753R1

STUD

1шт.

368751R1

STUD

2шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, hex., jam, 1/2-20

6шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

5шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

368821R1

WASHER, plain, 17/32" ID x 15/16" OD x 3/16"

2шт.

35

75080HA

BUSHING,34.82mm ID x 38.18mm OD x 38.1mm L

gear shaft

2шт.

36

94073R91

OIL SEAL

steering gear housing trunnion cover (Same as 364297R91)

1шт.

37

365342R1

BUSHING, dowel (Will work for 364937R1 and 365334R1) (Ream the holes in the cover and housing to size) (See Note B)

1шт.

38

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

steering gear stabilizer (See Notes A and B)

1шт.

39

50793H

WASHER

plain, 13/32" ID x 7/8" OD x No. 11 ga. (See Notes A and B)

1шт.

39

Q1504

WASHER

plain, 13/32" ID x 7/8" OD x No. 16 ga. (See Notes A and B)

1шт.

40

364804R1

BRACKET, steering gear stabilizer (Will work for 364950R1) (See Notes A and B)

1шт.

102635

NUT,3/8"-16, G5

(See Notes A and B) 3/8"-16, G5

1шт.

186296

FLOOR,Hex, 1/2" - 13 x 7", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 7" (See Notes A and B)

2шт.

364813R1

SCREW, stabilizer bracket attaching (3-1/2" long) (See Notes A and B)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Notes A and B) 3/8"

2шт.

41

50793H

WASHER

plain, 13/32" ID x 7/8" OD x No. 11 ga. (See Notes A and B)

1шт.

42

364804R1

BRACKET, steering gear stabilizer (Will work for 364950R1) (See Notes A and B)

1шт.

NLS

NO LONGER SERVICED

(See Notes A and B) Hex, 3/8"-16 x 1 1/2", G5

1шт.

186296

FLOOR,Hex, 1/2" - 13 x 7", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 7" (See Notes A and B)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Notes A and B) 3/8"

1шт.

50793H

WASHER

plain, 13/32" ID x 7/8" OD x No. 11 ga. (See Notes A and B)

1шт.

43

365234R92

HOUSING, steering gear main, assembly (Will work for 364612R92) (Uses dowel bushings), Composed Of

1шт.

75080HA

BUSHING,34.82mm ID x 38.18mm OD x 38.1mm L

2шт.

365342R1

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

94073R91

OIL SEAL

1шт.

364613R1

PIN

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (Filler plug) (Used with 365234R92 housing)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8" (See Note A)

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

SCREW, steering gear main housing (1-1/2" long) (See Note A)

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

6шт.

43

368797R91

HOUSING, steering gear main, assembly (Uses dowel studs), Composed Of

1шт.

75080HA

BUSHING,34.82mm ID x 38.18mm OD x 38.1mm L

2шт.

94073R91

OIL SEAL

1шт.

364613R1

PIN

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

368751R1

STUD

2шт.

445686

PLUG

pipe, sq-hd., automotive, 3/8" (Used with 368797R91 housing)

1шт.

44

365842R91

SHAFT

PACKAGE, service (Consists of shaft, 365840R91 and shaft, 365841R91) (Will work for 364657R92) (Will also work for shaft, 364620R91 and shaft, 364621R92 - see Note C) (See Note A)

1шт.

45

365841R91

LEVER ASSY.

SHAFT, lever, w/sector gear (3-5 pitch full radius teeth) nut, 62643V, and washer, 121326 (See Note C) (For International 350 Series Utility Tractor) (S/N 501 up)

1шт.

46

365840R91

SHAFT

gear, w/integral sector gear (4-5 pitch full radius teeth) nut, 62643V, and washer, 121326 (See Note C) (For International 350 Series Utility Tractor) (S/N 501 up)

1шт.

47

366557R1

WHEEL

steering (For International 350 Series Utility Tractors) (See Note A)

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel (Optional with 368576R1)

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel (Optional with 367232R1)

1шт.

48

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

RING, seal, steering wheel cap (For International 350 Series Utility Tractors) (See Note A)

1шт.

49

366558R1

PRODUCT GRAPHIC

CAP, monogramed "IH", steering wheel (For International 350 Series Utility Tractors) (See Note A)

1шт.

50

368754R1

GASKET

housing trunnion cover (Used with 368796R91 cover)

1шт.

51

253313R1

CLIP, cable harness

1шт.

52

368751R1

STUD

dowel, 1/2"

2шт.

53

368753R1

STUD, dowel, 5/8"

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, (See Notes A and B) Ext Tooth, 1/2"

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, (See Notes A and B) Ext Tooth, 1/2"

2шт.
