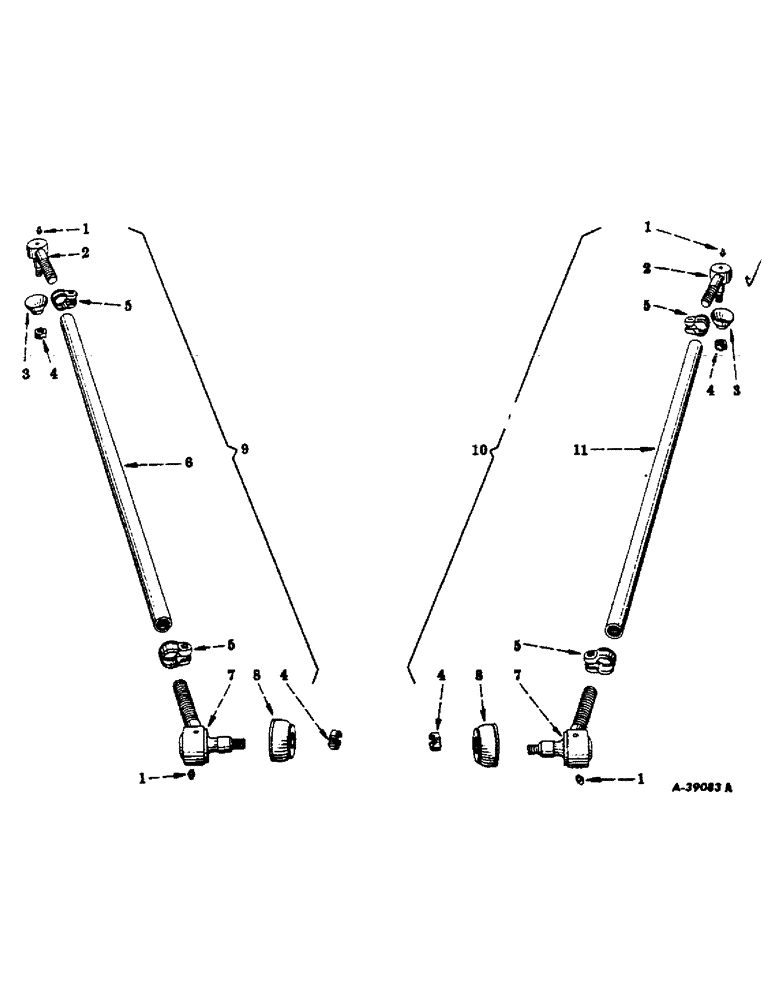

Запчасти Case IH 300 (244) - CHASSIS, STEERING DRAG LINKS (12) - CHASSIS

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, Taper (Optional with 110347) (Used with Columbus Auto Parts drag link ends) 1/4"-28 NPT x .54" lg

4шт.

1

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4-28NS taper (Optional with 109454) (Used with Columbus Auto Parts drag link ends)

4шт.

2

363160R91

END

front, drag link, assembly (Used with Columbus Auto Parts drag links), Composed Of

2шт.

363162R1

SEAL

COVER

1шт.

NSS

NOT SOLD SEPARAT

END

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

2

365852R91

END

front, drag link (Not illustrated) (Used W/O And S Bearing And Mfg. Co. drag links)

2шт.

3

363162R1

SEAL

COVER, dust, drag link front end (Used W/Columbus Auto Parts drag links)

2шт.

3

365855R1

SEAL

COVER, dust, drag link, front end (Used W/O And S Bearing And Mfg. Co. drag links)

2шт.

4

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

4шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

4шт.

5

363165R1

CLAMP

drag link tube (Used W/Columbus Auto Parts drag links)

4шт.

5

365854R1

CLAMP, drag link tube (Used W/O And S Bearing And Mfg. Co. drag links)

4шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

181342

BOLT,Hex, 5/16" - 24 x 1 3/8", Gr 5

SCREW, cap, hex-hd., 5/16-24NF x 1-3/8"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

363158R2

TUBE, LH drag link (31-7/8" long) (Used with Columbus Auto Parts drag links)

1шт.

6

365850R1

TUBE, LH drag link (31-1/8" long) (Used with O And S Bearing And Mfg. Co. drag link, w/retaining clamps)

1шт.

6

366429R1

TUBE, LH drag link (31-7/8" long) (Used with O And S Bearing And Mfg. Co. drag link, w/retaining nuts) 7/8" OD, 31.875" Length

1шт.

366431R1

JAM NUT

jam, tie rod (LH thread) (Used W/O And S Bearing And Mfg. Co. drag links, w/retaining nuts)

1шт.

366432R1

JAM NUT

NUT, jam, tie rod (RH thread) (Used W/O And S Bearing And Mfg. Co. drag links, w/retaining nuts)

1шт.

7

363161R92

END

rear, drag link, assembly (Used W/Columbus Auto Parts drag links)

2шт.

8

363164R91

SEAL

OIL SEAL

1шт.

7

365853R91

END

rear, drag link (Used W/O And S Bearing And Mfg. Co. drag links)

2шт.

8

363161R92

END

OIL SEAL, drag link rear end (Used W/Columbus Auto Parts drag links) (Replaces 363164R91)

2шт.

8

365856R1

SEAL

drag link rear end (Used W/O And S Bearing And Mfg. Co. drag links)

2шт.

9

362822R93

DRAG LINK, steering LH, assembly (Columbus Auto Parts) (Optional with 365848R91 and 366427R91), Composed Of

1шт.

363165R1

CLAMP

2шт.

363160R91

END

1шт.

363161R92

END

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

181342

BOLT,Hex, 5/16" - 24 x 1 3/8", Gr 5

SCREW

2шт.

363158R2

TUBE

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

365848R91

DRAG LINK, steering LH, assembly (O And S Bearing And Mfg. Co.) (Optional with 362822R93 and 366427R91), Composed Of

1шт.

365854R1

CLAMP

2шт.

365855R1

SEAL

COVER

1шт.

365852R91

END

1шт.

365853R91

END

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

365856R1

SEAL

1шт.

181342

BOLT,Hex, 5/16" - 24 x 1 3/8", Gr 5

SCREW

2шт.

365850R1

TUBE

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

366427R91

DRAG LINK, LH, steering, assembly (Not illustrated) (O And S Bearing And Mfg. Co.) (Optional with 362822R93 and 365848R91), Composed of

1шт.

365855R1

SEAL

COVER

1шт.

365852R91

END

1шт.

365853R91

END

1шт.

366431R1

JAM NUT

1шт.

366432R1

JAM NUT

NUT

1шт.

365856R1

SEAL

1шт.

366429R1

TUBE 7/8" OD, 31.875" Length

1шт.

10

362823R93

DRAG LINK, steering RH, assembly (Columbus Auto Parts) (Optional with 365849R91 and 366428R91), Composed Of

1шт.

363165R1

CLAMP

2шт.

363160R91

END

1шт.

363161R92

END

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

363159R2

TUBE

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

365849R91

DRAG LINK, steering RH, assembly (O And S Bearing And Mfg. Co.) (Optional with 362823R93 and 366428R91), Composed Of

1шт.

365854R1

CLAMP

2шт.

365855R1

SEAL

COVER

1шт.

365852R91

END

1шт.

365853R91

END

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

181342

BOLT,Hex, 5/16" - 24 x 1 3/8", Gr 5

SCREW

2шт.

365856R1

SEAL

1шт.

365851R1

TUBE

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

366428R91

DRAG LINK, RH, steering, assembly (Not illustrated) (O And S Bearing And Mfg. Co.) (Optional with 362823R93 and 365849R91), Composed Of

1шт.

365855R1

SEAL

COVER

1шт.

365852R91

END

1шт.

365853R91

END

1шт.

366431R1

JAM NUT

1шт.

366432R1

JAM NUT

NUT

1шт.

365856R1

SEAL

1шт.

366430R1

TUBE

1шт.

11

363159R2

TUBE, RH drag link (29-7/8" long) (Used with Columbus Auto Parts drag links)

1шт.

11

365851R1

TUBE, RH drag link (29-7/8" long) (Used with O And S Bearing And Mfg. Co. drag links, w/retaining clamps)

1шт.

11

366430R1

TUBE, RH drag link (29-7/8" long) (Used W/O And S Bearing And Mfg. Co. drag links, w/retaining nuts)

1шт.

366431R1

JAM NUT

jam, tie rod (LH thread) (Used W/O And S Bearing And Mfg. Co. drag links, w/retaining nuts)

1шт.

366432R1

JAM NUT

NUT, jam, tie rod (RH thread) (Used W/O And S Bearing And Mfg. Co. drag links, w/retaining nuts)

1шт.
