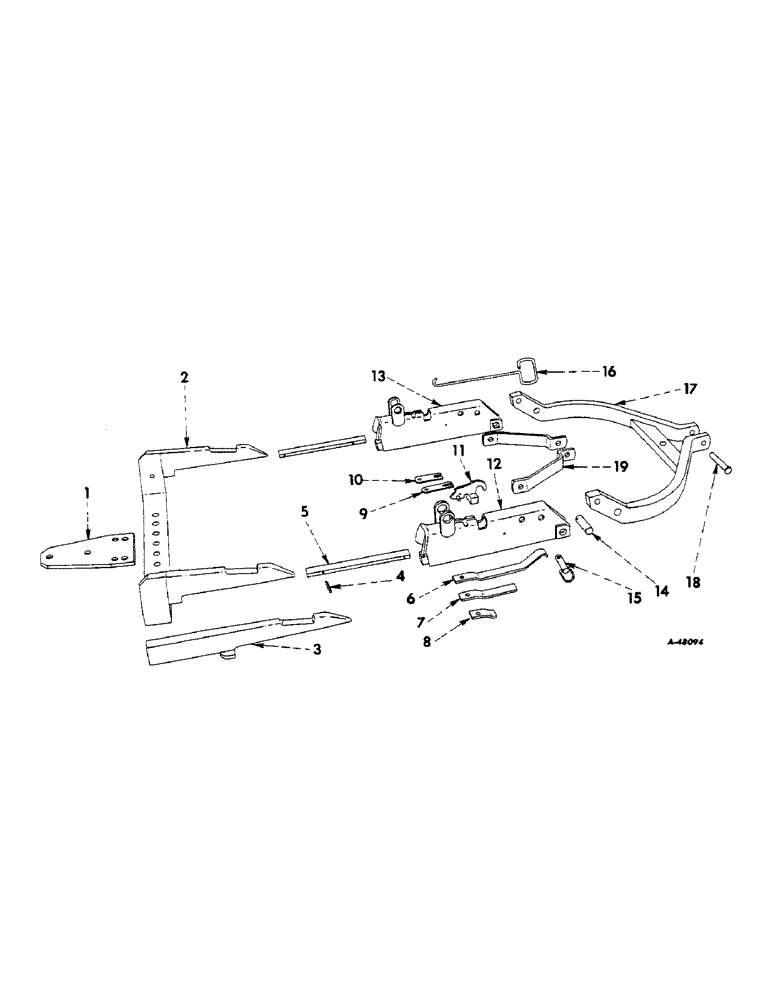

Запчасти Case IH 300 (329[A]) - ATTACHMENTS, DRAWBAR AND BAIL Attachments

368049R92

FAST-HITCH ATTACHMENT (For all tractors except hi-clear or hi-utility models equipped with hydra-touch system) (Note A) (Column A)

1шт.

369637R91

FAST-HITCH ATTACHMENT (For all hi-clear or hi-utility tractors equipped with hydra-touch system) (Column B), Composed Of

1шт.

DRAWBAR AND BAIL

1шт.

TRACTION CONTROL

1шт.

ROCKSHAFT, LIFT AND LEVELING LINK, HYDRAULIC CYLINDER AND CONNECTIONS

1шт.

PILOT GUIDE

1шт.

ROCKSHAFT BEARINGS AND LATERAL LIMITER

1шт.

1

364013R2

PLATE, drawbar extension (Provides a standardized power take-off hitch for tractors equipped with independent or transmission driven power take-off) (Note B) [A]

1шт.

1

363445R1

PLATE, drawbar extension (Provides a standardized power take-off hitch for tractors equipped with independent or transmission driven power take-off) (Note B) [B]

1шт.

220081

NUT

hex., 3/4-10NC [A]

2шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4" [A]

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, [A] 3/4"

2шт.

2

520969R91

DRAWBAR [A]

1шт.

2

523089R91

DRAWBAR [B]

1шт.

3

521021R11

BEAM, coupling (Used to adapt allied implements for use with fast-hitch by welding, or by drilling holes and bolting to the implement) (Special) (See Note B) (Order as required)

1шт.

4

657196R1

PIN

roll, 1/4" OD x 2" (Used with ref. no. 5) (Note B)

2шт.

5

523387R11

PLATE, filler w/pin, 657196R1 (Special) (Note B)

2шт.

Q1404

AXLE PIN

PIN, std-hd., dld., 1/4 x 2-1/4"

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

6

522836R1

SPRING

leaf, beam socket, long

2шт.

7

522835R1

SPRING

leaf, beam socket, medium

2шт.

8

522834R1

VALVE SPRING

SPRING, leaf, beam socket, short

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

2шт.

9

522839R1

VALVE SPRING

SPRING, latch

2шт.

10

522840R1

SPRING

latch auxiliary

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

11

523110R1

LATCH

coupling beam

2шт.

12

522814R91

SOCKET, RH beam

1шт.

13

522815R91

SOCKET, LH beam [A]

1шт.

13

522813R91

SOCKET, LH beam [B]

1шт.

14

522852R11

PIN

beam socket

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Self-opening 1/4" x 1 1/2"

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

19329R1

LOCK PIN,5/32" x 1 1/2", Slotted

Pin, 5/32" x 1 1/2", Slotted

2шт.

15

522841R11

PIN

socket, pivot lock-out

2шт.

16

520959R1

HOOK, latch [A]

1шт.

16

360378R2

HOOK, latch [B]

1шт.

369640R11

BRACKET, latch hook spring clip [B]

1шт.

523440R1

SUPPORT, latch hook [B]

1шт.

17

522790R91

BAIL

hitch (Order 524015R91) [A]

1шт.

17

523869R91

BAIL, hitch [A]

1шт.

17

523870R91

BAIL, hitch [B]

1шт.

17

524015R91

BAIL

hitch, 523869R91, w/pin, 523866R1 (Will work for 522790R91) [A]

1шт.

18

522854R1

PIN, hitch point pivot (Used with 522790R11) [A]

1шт.

18

523866R1

PIN

hitch point pivot (Used with 523869R91 and 523870R91)

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

19

523176R1

BRACE, drawbar stabilizer (Special) (Note B) [A]

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC [A]

3шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2" (LH brace to rockshaft bearing) [A]

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10NC x 2-1/2" (RH brace to rockshaft bearing) [A]

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 3-1/4" (Brace to beam socket) [A]

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, [A] 3/4"

3шт.

523185R1

BRACE, drawbar stabilizer, LH (Special) (Note B) (Not illustrated) [B]

1шт.

220081

NUT

hex., 3/4-10NC [B]

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2" [B]

1шт.

271616

SEAL KIT

SCREW, cap, hex-hd., 3/4-10NC x 3-1/4" [B]

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, [B] 3/4"

2шт.

523186R1

BRACE, drawbar stabilizer, RH (Special) (Note B) (Not illustrated) [B]

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC [B]

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10NC x 2-1/2" [B]

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 3-1/4" [B]

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, [B] 3/4"

2шт.
