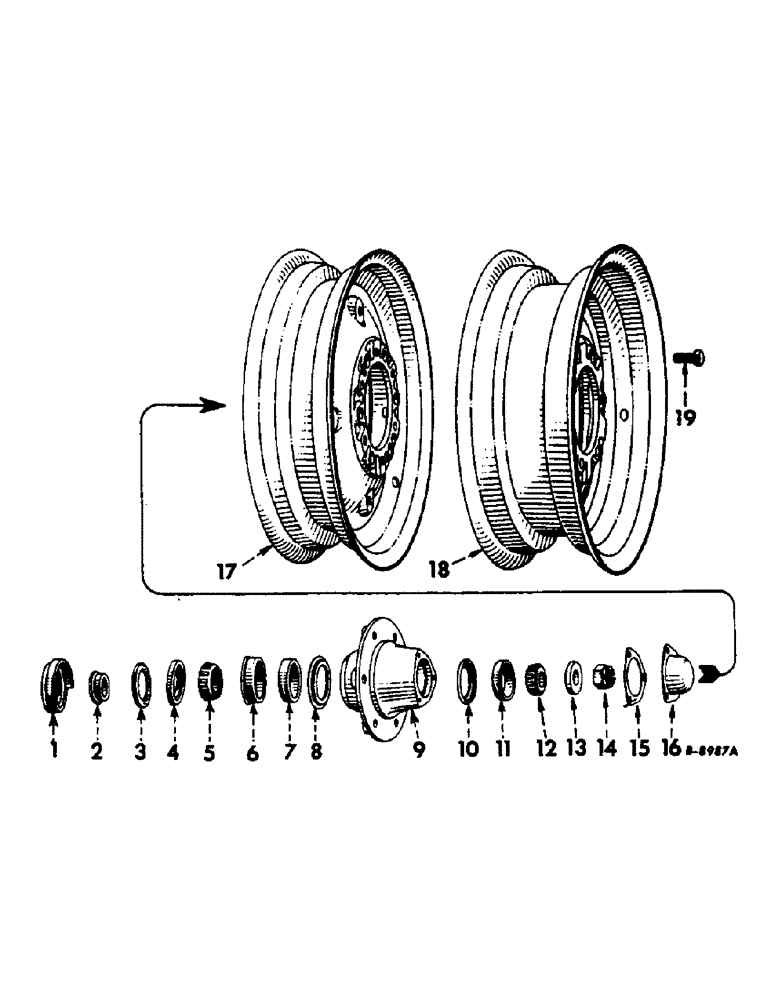

Запчасти Case IH 300 (242) - CHASSIS, FRONT WHEELS (*) (12) - CHASSIS

SERVICE PARTS FOR TRACTORS EQUIPPED WITH ADJUSTABLE TREAD FRONT AXLE (Column A)

1шт.

SERVICE PARTS FOR TRACTORS EQUIPPED WITH HEAVY-DUTY FIXED TREAD FRONT AXLE (Column B)

1шт.

1

48541D

SHIELD

dust, front wheel also used on Hi-Clear Utility Tractors [A]

2шт.

1

48701D

SHIELD

dust, front wheel [B]

2шт.

2

50270D

SPACER

front wheel bearing also used on Hi-Clear Utility Tractors [A]

2шт.

2

51901D

SPACER

front wheel bearing [B]

2шт.

3

43828D

WASHER,49.21mm ID x 70.64mm OD x 4.76mm Thk

felt, front wheel (International 300 Utility) [A]

2шт.

3

43828D

WASHER,49.21mm ID x 70.64mm OD x 4.76mm Thk

felt, front wheel (International 350 Utility) (S/N 501 to 14498) [A]

2шт.

3

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (International 300 Utility) [B]

2шт.

3

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (International 350 Utility) (S/N 501 to 14498) [B]

2шт.

4

48704DA

OIL SEAL

OIL SEAL, front wheel [B]

2шт.

4

48539DA

PACKING RING

OIL SEAL, front wheel [A]

2шт.

5

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, tapered roller bearing (Front wheel inner bearing) [B]

2шт.

5

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

CONE, tapered roller bearing (Front wheel inner bearing) [A]

2шт.

6

48548D

WASHER

front wheel felt washer [A]

2шт.

6

48703D

RETAINER

front wheel felt washer

1шт.

7

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP, tapered roller bearing (Front wheel inner bearing) [A]

2шт.

ST882

CUP

tapered roller bearing (Front wheel inner bearing)

1шт.

8

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

grease, front wheel inner bearing [A]

2шт.

9

361699R21

HUB, front wheel assembly, Composed Of [A]

2шт.

13417D

BEARING, CUP,56.92mm OD x 16mm W

CUP

1шт.

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP

1шт.

361699R2

HUB (NSS)

1шт.

48548D

WASHER

1шт.

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

1шт.

60289D

WASHER

RETAINER

1шт.

9

366472R11

HUB, front wheel, assembly (Not illustrated), Composed Of

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

ST882

CUP

1шт.

366472R1

HUB (NSS)

1шт.

48703D

RETAINER

1шт.

10

60289D

WASHER

RETAINER, grease, front wheel outer bearing [A]

2шт.

11

13417D

BEARING, CUP,56.92mm OD x 16mm W

CUP, tapered roller bearing (Front wheel outer bearing) [A]

2шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller (Front wheel outer)

1шт.

12

13321DA

TAPERED BEARING,23.81mm ID x 19.91mm W

CONE, tapered roller bearing (Front wheel outer bearing) [A]

2шт.

12

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, tapered roller bearing (Front wheel outer bearing)

1шт.

13

353838R1

WASHER

WASHER, retainer, front wheel outer bearing [A]

2шт.

14

361138R1

NUT

retainer front wheel outer bearing [A]

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), [A] 5/32" x 1 3/8"

2шт.

15

49116D

GASKET,0.79mm Thk

front wheel hub cap [A]

2шт.

16

49115D

CYLINDER END CAP

CAP, front wheel hub [A]

2шт.

179814

SPACER

[A] Hex, 5/16"-18 x 5/8", G5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, [A] 5/16"

6шт.

17

361714R91

WHEEL ASSY.

WHEEL, front (Disc type rim, 4.25KA-16DC for 5.50-16 or 6.00-16 tire) [A]

2шт.

18

364343R91

WHEEL

front (Disc type rim, 5.50F-16DC for 7.50-16 tire) [A]

2шт.

19

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting [A]

12шт.

364114R91

KIT

PACKAGE, overhaul front wheel bearing, complete (For one wheel hub), Consists Of [A]

2шт.

13321DA

TAPERED BEARING,23.81mm ID x 19.91mm W

CONE

1шт.

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

CONE

1шт.

13417D

BEARING, CUP,56.92mm OD x 16mm W

CUP

1шт.

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP

1шт.

49116D

GASKET,0.79mm Thk

1шт.

48539DA

PACKING RING

OIL SEAL

1шт.

48548D

WASHER

1шт.

50259D

WASHER

WASHER

1шт.
