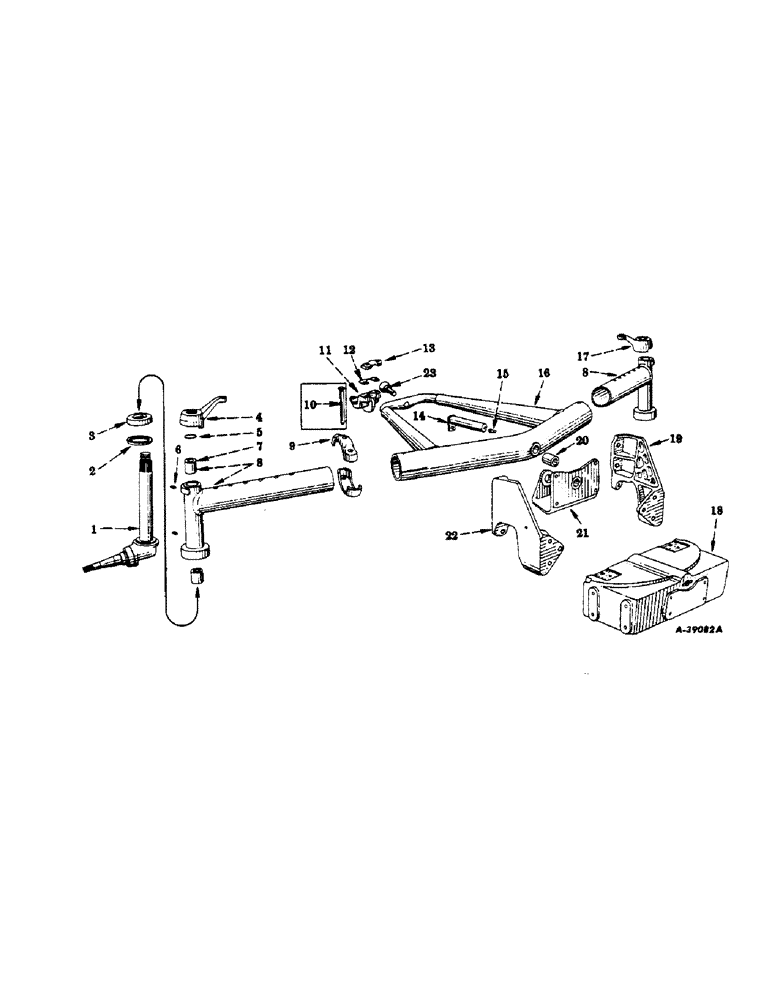

Запчасти Case IH 300 (239) - CHASSIS, STEERING KNUCKLES, FRONT AXLE & SUPPORTS, FOR TRACTORS EQUIPPED W/ADJUSTABLE TREAD AXLE (12) - CHASSIS

1

361845R92

KNUCKLE

steering, assembly (For all tractors except Hi-Clear or Hi-Utility models), Composed Of

2шт.

360421R1

KNUCKLE (NSS)

1шт.

48539DA

PACKING RING

OIL SEAL

1шт.

361846R1

PIN

(NSS)

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER

1шт.

1

368413R91

KNUCKLE, steering, assembly (For all Hi-Clear or Hi-Utility tractors), Composed Of

2шт.

360421R1

KNUCKLE (NSS)

1шт.

48539DA

PACKING RING

OIL SEAL

1шт.

368414R1

PIN (NSS)

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

2

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

3

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

ball, thrust

2шт.

4

365439R1

ARM

steering knuckle, R.H. (8-15/16" long) (For International 300 Utility Tractor) (S/N 26458 up)

1шт.

4

365439R1

ARM

steering knuckle, R.H. (8-15/16" long) (For International 350 Utility Tractor) (S/N 501 up)

1шт.

4

361848R1

ARM, steering knuckle, R.H. (For International 300 Utility Tractor) (S/N, Serial Range: 501-26457)

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

jam, hex., 1-3/8-12NF

1шт.

Q326

WASHER

plain, 1-13/32" I.D. x 2-3/4" O.D. x No. 18 ga. (Steering knuckle arm nut lock)

1шт.

5

361850R1

RING

snap, steering knuckle arm

2шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (Used in axle extension with two threaded fitting holes) 1/8"-27 x .66 lg

4шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461) (Used in axle extension with two threaded fitting holes)

4шт.

6

110161

FITTING, lubrication, straight, drive type, 3/16" (Optional with 125617) (Used in extension with one plain fitting hole)

2шт.

6

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 110161) (Used in extension with one plain fitting hole)

2шт.

7

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

8

361831R13

EXTENSION, front axle, w/two bushings, 358958R2 (For all tractors except Hi-Clear or Hi-Utility models)

2шт.

8

368411R91

EXTENSION, front axle, w/four bushings, 358958R2 (For all Hi-Clear or Hi-Utility Tractors)

2шт.

9

361851R1

CLAMP, front axle

4шт.

17866R1

BOLT, machine, hex-hd., 5/8-11NC x 5-3/4" (Optional with 272552) (With nut, 102639 and washer, 103325 will work for pin, 361852R1) (For International 300 Utility Tractors) (S/N 28703 up)

2шт.

17866R1

BOLT, machine, hex-hd., 5/8-11NC x 5-3/4" (Optional with 272552) (With nut, 102639 and washer, 103325 will work for pin, 361852R1) (For International 350 Utility Tractor) (S/N 501 up)

2шт.

425-1110

NUT,5/8"-18, G5

4шт.

102639

NUT,5/8"-11, G5

(Used with bolt, 17866R1 or screw, 272552) (For International 300 Utility Tractor) (S/N 28703 up) 5/8"-11, G5

2шт.

102639

NUT,5/8"-11, G5

(Used with bolt, 17866R1 or screw, 272552) (For International 350 Utility Tractor) (S/N 501 up) 5/8"-11, G5

2шт.

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

SCREW, cap, hex-hd., 5/8-18NF x 4"

4шт.

113-1092

SCREW, cap, hex-hd., 5/8-11NC x 5-3/4" (Optional with 17866R1) (With nut, 102639 and washer, 103325 will work for pin, 361852R1) (For International 300 Utility Tractor) (S/N 28703 up)

2шт.

113-1092

SCREW, cap, hex-hd., 5/8-11NC x 5-3/4" (Optional with 17866R1) (With nut, 102639 and washer, 103325 will work for pin, 361852R1) (For International 350 Utility Tractor) (S/N 501 up)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

361852R1

PIN, front axle clamp (Order bolt, 17866R1, nut 102633 and washer, 103325 - see ref. 9) (For International 300 Utility Tractor) (S/N, Serial Range: 501-28702)

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), (For International 300 Utility Tractor) (S/N 501 to 28702) 3/16" x 1 1/4"

2шт.

11

361853R3

BRACKET, stay rod ball (Requires 1/2" dia. attaching screws) (For International 300 Utility Tractor) (S/N, Serial Range: 501-26955)

1шт.

364402R1

BOLT,Hex, 1/2" - 13 x 1 1/4"

SCREW, stay rod ball bracket 1/2-13NC x 1-1/4" long (For International 300 Utility Tractor) (S/N, Serial Range: 501-26955)

1шт.

364403R1

SCREW, stay rod ball bracket 1/2-13NC x 1-5/8" long (For International 300 Utility Tractor) (S/N, Serial Range: 501-26955)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (For International 300 Utility Tractor) (S/N 501 to 26955) 1/2"

3шт.

11

365454R1

BRACKET, stay rod ball (Requires 5/8" dia. attaching screws) (For International 300 Utility Tractor) (S/N 26956 up)

1шт.

11

365454R1

BRACKET, stay rod ball (Requires 5/8" dia. attaching screws) (For International 350 Utility Tractor) (S/N 501 up)

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2"

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-5/8"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

12

361855R1

SHIM

stay rod ball bracket cap (.015")

1шт.

13

361854R1

CAP

stay rod ball bracket

1шт.

364157R1

PLATE, lock, stay rod ball bracket cap mounting screw (For International 300 Utility Tractor) (S/N, Serial Range: 501-26955)

2шт.

364404R2

SCREW, stay rod ball bracket cap mounting (1-3/4" long)

2шт.

365485R1

WIRE, lkg. No. 16 ga. x 8" (For International 300 Utility Tractor) (S/N 26956 up)

1шт.

365485R1

WIRE, lkg., No. 16 ga. x 8" (For International 350 Utility Tractor) (S/N 501 up)

1шт.

14

362377R11

PIN

front axle pivot, w/arm

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 7/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

lubrication, 67-1/2 degree elbow, 1/8" (Optional with 109460)

1шт.

15

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (Optional with 271584)

1шт.

16

361823R21

AXLE, front, assembly, Composed Of

1шт.

361826R1

ARM (NSS)

4шт.

361823R2

AXLE (NSS)

1шт.

365453R1

BALL

1шт.

361825R2

BRACE (NSS)

1шт.

361828R2

BUSHING

2шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

361827R1

SLEEVE (NSS)

1шт.

17

365438R1

ARM

steering knuckle, L.H. (8-15/16" long) (For International 300 Utility Tractor) (S/N 26458 up)

1шт.

17

365438R1

ARM

steering knuckle, L.H. (8-15/16" long) (For International 350 Utility Tractor) (S/N 501 up)

1шт.

17

361847R1

ARM, steering knuckle, L.H.

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

jam, hex., 1-3/8-12NF

1шт.

Q326

WASHER

plain, 1-13/32" I.D. x 2-3/4" O.D. x No. 18 ga. (Steering knuckle arm nut lock)

1шт.

18

362379R1

BOLSTER, front

1шт.

19

366691R1

BRACKET, front bolster support, L.H. (Not illustrated) (For diesel engine tractors)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2"

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

19

362380R1

BRACKET, front bolster support, L.H. (For carbureted engine tractor)

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4" (Rear)

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" (Front)

3шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 3-1/4" (Rear)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

20

361828R2

BUSHING

front axle pivot

2шт.

21

362383R1

BRACKET, front axle pivot pin

1шт.

364333R1

BOLT

SCREW, front axle pivot pin bracket

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

22

362381R1

BRACKET, front bolster support, R.H. (For carbureted engine tractor)

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4" (Rear)

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" (Front)

3шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 3-1/4" (Rear)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

22

366692R1

BRACKET, front bolster support, R.H. (Not illustrated) (For diesel engine tractors)

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2"

4шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

23

361824R1

BALL

stay rod socket (Rivet in position) (Not illustrated) (For International 300 Utility Tractor) (S/N, Serial Range: 501-26955)

1шт.

23

365453R1

BALL

stay rod socket (For International 300 Utility Tractor) (S/N 26956 up)

1шт.

23

365453R1

BALL

stay rod socket (For International 350 Utility Tractor) (S/N 501 up)

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, hex., slotted, 5/8-18NF

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

361833R31

PACKAGE, steering stop lug, consists of two lugs

1шт.
