Запчасти Case IH 300 (235) - CHASSIS, STEERING KNUCKLES, FRONT AXLE & SUPPORTS (12) - CHASSIS

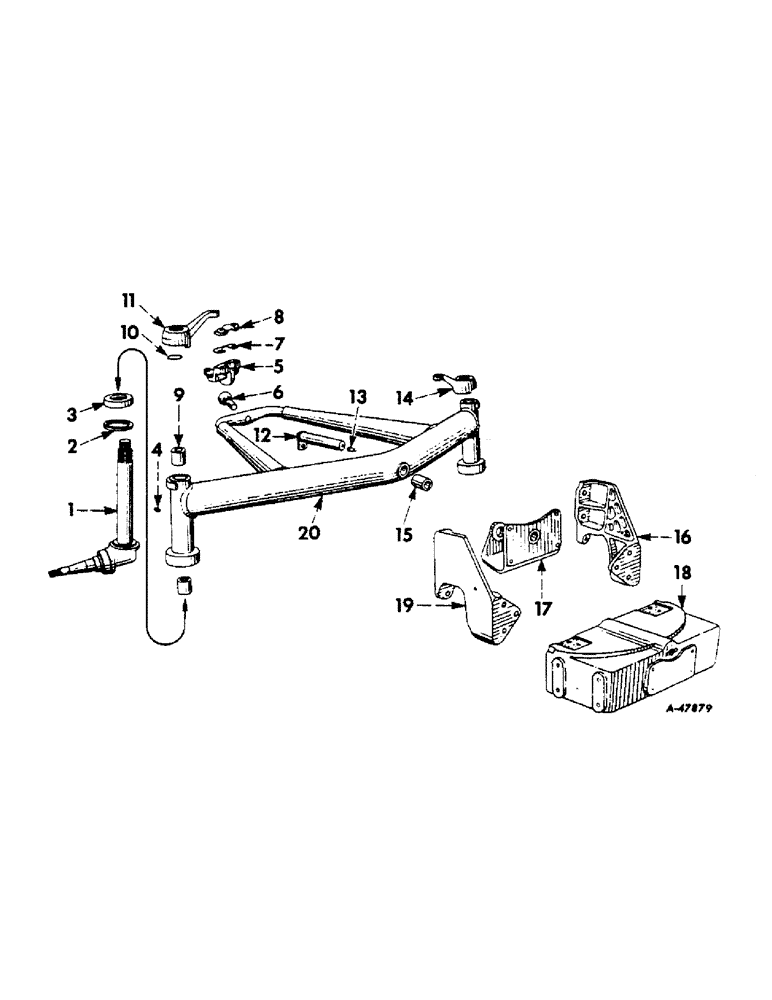

Схема запчастей Case IH 300 - (235) - CHASSIS, STEERING KNUCKLES, FRONT AXLE & SUPPORTS (12) - CHASSIS
15
3
1
17
19
14
12
5
10
16
18
13
4
20
7
8
6
11
2
9

Артикул

Название

Примечание

Количество

SERVICE PARTS FOR INTERNATIONAL 350 AND 350 DIESEL UTILITY TRACTORS EQUIPPED WITH FIXED TREAD HEAVY-DUTY AXLE (Column A)

1шт.

366467R91 ATTACHMENT, HEAVY-DUTY FRONT AXLE (FOR INTERNATIONAL 350, AND 350 DIESEL UTILITY TRACTORS) (Column B)

1шт.

SERVICE PARTS FOR INTERNATIONAL 350 WHEATLAND SPECIAL TRACTORS EQUIPPED WITH FIXED TREAD HEAVY-DUTY FRONT AXLE (Column C)

1шт.

SERVICE PARTS FOR INTERNATIONAL 350 DIESEL WHEATLAND SPECIAL TRACTORS EQUIPPED WITH FIXED HEAVY-DUTY FRONT AXLE (Column D)

1шт.

1

366473R91

KNUCKLE

steering, assembly, Composed Of [A] [B]

2шт.

358960R1

KNUCKLE (NSS)

1шт.

48704D

SEAL

OIL SEAL

1шт.

361846R1

PIN

(NSS)

1шт.

48701D

SHIELD

1шт.

51901D

SPACER

1шт.

1

367848R91

KNUCKLE

steering, assembly, Composed Of [C] [D]

2шт.

358960R1

KNUCKLE (NSS)

1шт.

48704D

SEAL

OIL SEAL

1шт.

361846R1

PIN

(NSS)

1шт.

367849R1

SHIELD (NSS)

1шт.

51901D

SPACER

1шт.

2

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

3

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

ball, thrust

2шт.

4

110161

FITTING, lubrication, straight, drive type, 3/16" (Optional with 125617)

2шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 110161)

2шт.

5

361853R3

BRACKET, stay rod ball (Requires 1/2" dia. attaching screws) (For International 300 Utility Tractor) (S/N 501 to 26955) [A]

1шт.

364402R2

SCREW, stay rod ball bracket (1/2-13NC x 1-1/4" long) (For International 300 Utility Tractor) (S/N 501 to 26955) [A]

1шт.

364403R1

SCREW, stay rod ball bracket (1/2-13NC x 1-5/8" long) (For International 300 Utility Tractor) (S/N 501 to 26955) [A]

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (For International 300 Utility Tractor) (S/N 501 to 26955) [A] 1/2"

3шт.

5

365454R1

BRACKET, stay rod ball (Requires 5/8" dia. attaching screws) (For International 300 Utility Tractor) (S/N 26956 up) [A] [C] [D]

1шт.

5

365454R1

BRACKET, stay rod ball (Requires 5/8" dia. attaching screws) (For International 350 Utility Tractor) (S/N 501 up) [A] [C] [D]

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/8-11NC x 1-5/8" [A] [C] [D]

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [A] [C] [D] 5/8"

3шт.

6

365453R1

BALL

stay rod socket

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, hex., slotted, 5/8-18NF

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

7

361855R1

SHIM

stay rod ball cap (.015") [A] [C] [D]

1шт.

8

361854R1

CAP

stay rod ball bracket [A] [C] [D]

1шт.

364157R1

PLATE, lock, stay rod ball bracket cap (For International 300 Utility Tractor) (S/N 501 to 26955) [A]

2шт.

364404R2

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4" [A] [C] [D]

2шт.

365455R1

WIRE, locking, cap screw (For International 300 Utility Tractor) (S/N 26956 up) [A] [C] [D]

1шт.

365455R1

WIRE, locking, cap screw (For International 350 Utility Tractor) (S/N 501 up) [A] [C] [D]

1шт.

9

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

10

361850R1

RING

snap, steering knuckle arm

2шт.

11

361848R1

ARM, steering knuckle, RH (7-3/16" long) (See Note A) (For International 300 Utility Tractor) (S/N 501 to 26457) [A]

1шт.

11

365439R1

ARM

steering knuckle, RH (8-15/16" long) (For International 300 Utility Tractor) (S/N 26458 up) [A] [C] [D]

1шт.

11

365439R1

ARM

steering knuckle, RH (8-15/16" long) (For International 350 Series Utility Tractor) (S/N 501 up) [A] [C] [D]

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

jam, hex., 1-3/8-12NF

1шт.

Q326

WASHER

plain, 1-13/32" ID x 2-3/4" OD x No. 18 ga. (Steering knuckle arm nut lock)

1шт.

12

362377R11

PIN

front axle pivot, w/arm [A] [C] [D]

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 7/8" [A] [C] [D]

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, [A] [B] [C] 1/2"

1шт.

13

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2 degrees, elbow, 1/8" (Optional with 271584) [A] [C] [D]

1шт.

13

414-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

FITTING, lubrication, 67-1/2 degrees, elbow, 1/8" (Optional with 109460) [A] [C] [D]

1шт.

14

361847R1

ARM, steering knuckle, LH (7-3/16" long) (See Note A) (For International 300 Utility Tractor) (S/N 501 to 26457) [A]

1шт.

14

365438R1

ARM

steering knuckle, LH (8-15/16" long) (For International 300 Utility Tractor) (S/N 26458 up) [A] [C] [D]

1шт.

14

365438R1

ARM

steering knuckle, LH (8-15/16" long) (For International 350 Series Utility Tractor) (S/N 501 up) [A] [C] [D]

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

jam, hex., 1-3/8-13NF

1шт.

Q326

WASHER

plain, 1-13/32" ID x 2-3/4" OD x No. 18 ga.

1шт.

15

361828R2

BUSHING

front axle pivot

2шт.

16

362380R1

BRACKET, front bolster support, LH (For carbureted engine tractors) [A] [C]

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4" (Rear) [A] [C]

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" (Front) [A] [C]

3шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 3-1/4" (Rear) [A] [C], Course Threads

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [A] [C] 5/8"

6шт.

16

366691R1

BRACKET, front bolster support, LH (Not illustrated) (For diesel engine tractors) [A] [C]

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" [A]

4шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" [D]

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4" [A] [D]

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [A] 5/8"

5шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [D] 5/8"

2шт.

17

362383R1

BRACKET, front axle pivot pin [A] [C] [D]

1шт.

364333R1

BOLT

SCREW, front axle pivot pin bracket [A] [C] [D]

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, [A] [C] [D] 1/2"

4шт.

18

362379R1

BOLSTER, front [A] [C] [D]

1шт.

19

362381R1

BRACKET, front bolster support, RH (For carbureted engine tractors) [A] [C]

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4" (Rear) [A] [C]

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" (Front) [A] [C]

3шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 3-1/4" (Rear) [A] [C], Course Threads

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [A] [C] 5/8"

6шт.

19

366692R1

BRACKET, front bolster support, RH (Not illustrated) (For diesel engine tractors) [A] [D]

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" [A]

4шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" [D]

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4" [A] [D]

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [A] 5/8"

5шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, [D] 5/8"

2шт.

20

366468R12

AXLE, heavy-duty front, assembly, Composed Of [A] [B]

1шт.

358954R1

ADAPTER (NSS)

2шт.

366470R1

ADAPTER (NSS)

2шт.

366471R2

ADAPTER (NSS)

2шт.

361826R1

ARM (NSS)

4шт.

366468R1

AXLE (NSS)

1шт.

365453R1

BALL

1шт.

361825R2

BRACE (NSS)

1шт.

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

4шт.

361828R2

BUSHING

2шт.

367844R1

LUG (NSS)

2шт.

119526

NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

361827R2

SLEEVE (NSS)

1шт.

366469R2

SLEEVE (NSS)

2шт.

20

367846R91

AXLE, heavy-duty front, assembly, Composed Of [C] [D]

1шт.

358954R1

ADAPTER (NSS)

2шт.

366470R1

ADAPTER (NSS)

2шт.

366471R2

ADAPTER (NSS)

2шт.

361826R1

ARM (NSS)

4шт.

366468R1

AXLE (NSS)

1шт.

365453R1

BALL

1шт.

361825R2

BRACE (NSS)

1шт.

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

4шт.

361828R2

BUSHING

2шт.

367844R1

LUG (NSS)

2шт.

119526

NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

361827R2

SLEEVE (NSS)

1шт.

366469

SLEEVE (NSS)

2шт.

367847R1

SLEEVE (NSS)

2шт.
