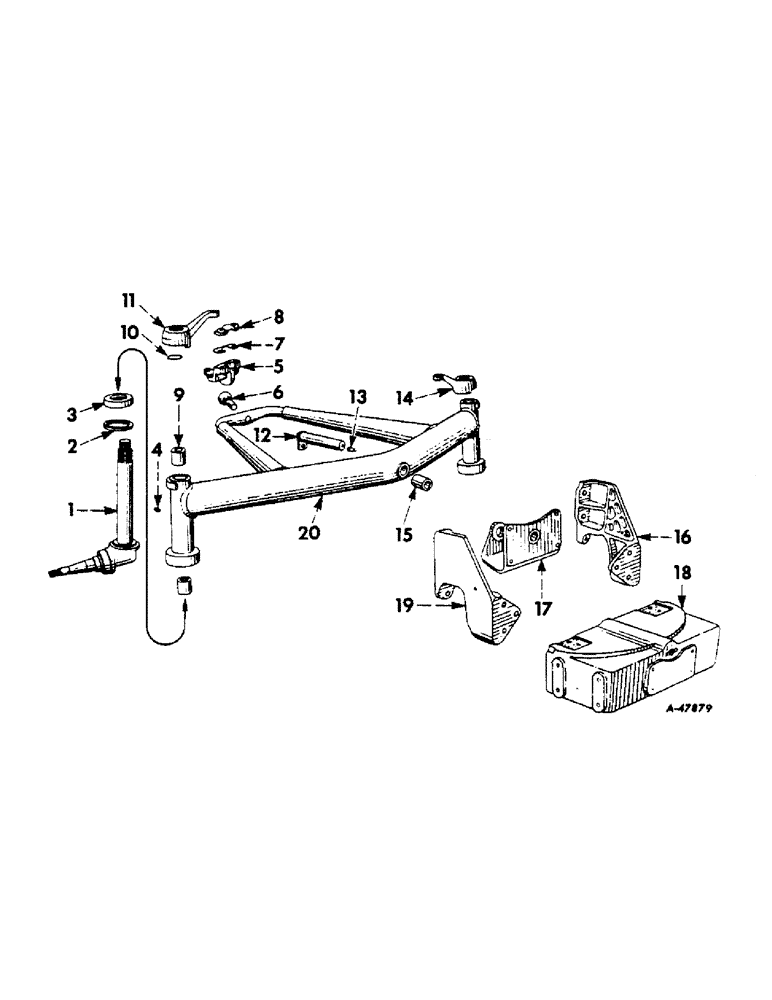

Запчасти Case IH 300 (235[A]) - CHASSIS, STEERING KNUCKLES, FRONT AXLE & SUPPORTS (12) - CHASSIS

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting [B] [C] [D]

12шт.

49115D

CYLINDER END CAP

CAP, hub, front wheel [A] [C] [D]

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

[A] [C] [D] Hex, 5/16"-18 x 5/8", G5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, [A] (C] [D] 5/16"

6шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, tapered roller bearing (Front wheel outer bearing) [B] [C] [D]

2шт.

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, tapered roller bearing (Front wheel inner bearing) [B] [C] [D]

2шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller (Front wheel outer) [A] [C] [D]

2шт.

ST882A

CUP, tapered roller bearing (Front wheel inner) [A] [C] [D]

2шт.

366472R11

HUB, front wheel, assembly

2шт.

361138R1

NUT

retainer, front wheel outer bearing

2шт.

353838R1

WASHER

WASHER, retainer, front wheel outer bearing

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.
