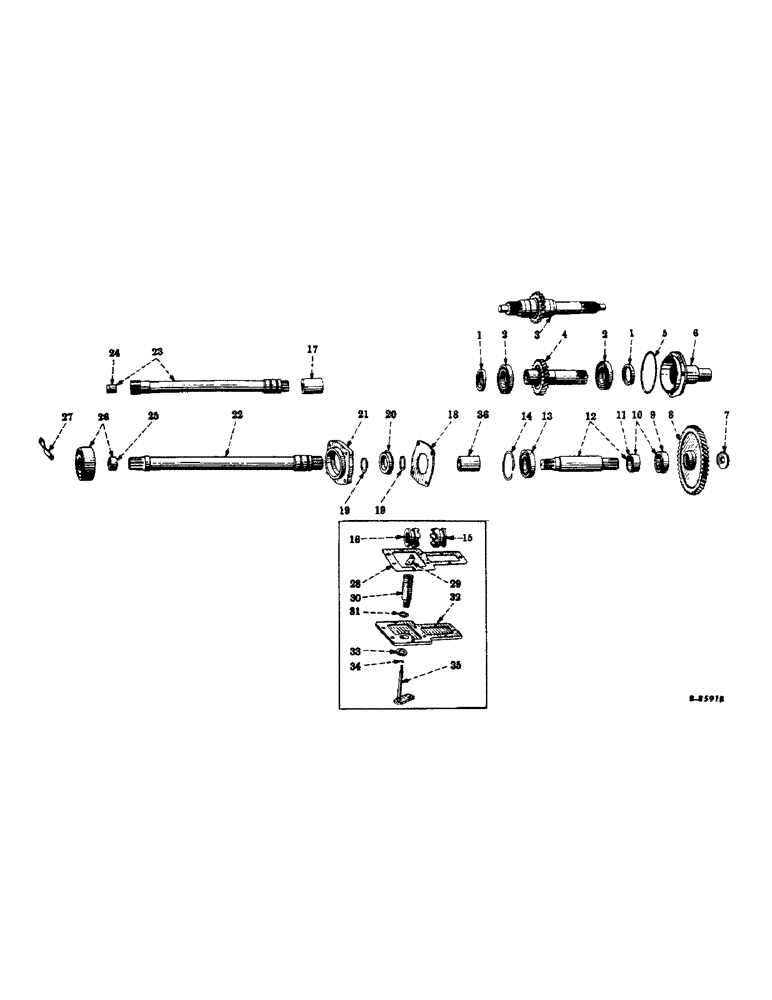

Запчасти Case IH 300 (230) - CHASSIS, POWER TAKE-OFF DRIVE (12) - CHASSIS

FOR TRACTORS EQUIPPED WITH INDEPENDENT POWER TAKE-OFF DRIVE OR TORQUE AMPLIFIER WITH INDEPENDENT POWER TAKE-OFF DRIVE (Column A)

1шт.

Special feature on the tractor - identified by the suffix letter code section of this catalog.

1шт.

FOR TRACTORS EQUIPPED WITH TORQUE AMPLIFIER WITH TRANSMISSION DRIVEN TYPE POWER TAKE-OFF DRIVE (Column B)

1шт.

Special feature on the tractor - identified by the suffix letter code section of this catalog.

1шт.

1

362119R93

SEAL

OIL SEAL, power take-off drive gear

2шт.

2

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

2шт.

3

363475R12

SHAFT, torque amplifier drive, w/integral power take-off drive gear (19 teeth) and coupling, 364432R91 [B]

1шт.

4

362619R1

SHAFT

AND GEAR, (25 teeth) independent power take-off drive [A]

1шт.

5

358239R1

RING

seal, power take-off drive shaft bearing cage

1шт.

6

360657R22

CAGE, bearing, power take-off drive shaft, w/oil seal, 362119R93

1шт.

NLS

NO LONGER SERVICED

3шт.

7

359972R1

WASHER

retaining, power take-off driven gear

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-1/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

363474R1

GEAR, power take-off driven (62 teeth) [B]

1шт.

8

362620R1

GEAR

independent power take-off driven (56 teeth) [A]

1шт.

9

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

needle

1шт.

10

360663R91

BEARING

needle, 360665R91, w/race, 360664R1

1шт.

11

360664R1

RACE

inner

1шт.

12

360658R11

SHAFT

power take-off driven, front, w/race, 360664R1

1шт.

13

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

1шт.

14

359138R1

RING

snap, power take-off driven shaft rear bearing

1шт.

15

359139R2

HUB, seasonal disconnect coupling (For International 300 Utility Tractor) (S/N 501 to 22895) [A]

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, [A] 1/4" x 1 3/4", Slotted

1шт.

16

359140R2

SLEEVE, seasonal disconnect coupling (For International 300 Utility Tractor) (S/N 501 to 22895) [A]

1шт.

17

359912R1

COUPLING

power take-off driven shaft [B]

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, [B] 1/4" x 1 3/4", Slotted

1шт.

18

359142R1

RETAINER, power take-off extension shaft front bearing

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

359141R1

RING, SNAP

power take-off extension shaft front bearing

2шт.

20

ST567

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball, w/snap ring

1шт.

21

359143R2

CAGE, power take-off extension shaft front bearing

1шт.

22

360748R1

SHAFT, independent power take-off extension [A]

1шт.

23

360668R11

SHAFT, power take-off extension, w/bushing, 43328D [B]

1шт.

24

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off shaft [B]

1шт.

25

359145R1

BUSHING

extension shaft rear bearing (1.313" I.D., .740" long) [A]

1шт.

25

359915R1

BUSHING, extension shaft rear bearing (1.501" I.D., 1.625" O.D., .740" long) [B]

1шт.

26

360749R11

CARRIER, independent power take-off extension shaft rear bearing, w/bushing, 359145R1 [A]

1шт.

26

360669R11

CARRIER, power take-off extension shaft rear bearing, w/bushing, 359915R1 [B]

1шт.

27

360670R1

STRAP, power take-off extension shaft rear bearing

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

360667R2

GASKET

seasonal disconnect [A]

1шт.

29

359154R11

BAR

ARM, seasonal disconnect coupling shifter, w/pin [A]

1шт.

For tractors equipped with seasonal disconnect.

1шт.

30

359150R1

BEARING, seasonal disconnect coupling shifter shaft [A]

1шт.

For tractors equipped with seasonal disconnect.

1шт.

138510

LOCK WASHER,Ext Tooth, 7/8"

WASHER, lock, external-tooth, 7/8" [A]

1шт.

31

359157R1

RING

seal, shifter bearing [A]

1шт.

For tractors equipped with seasonal disconnect.

1шт.

32

COVER, seasonal disconnect (See clutch housing and covers) [A]

1шт.

For tractors equipped with seasonal disconnect.

1шт.

33

359151R1

NUT, lock, seasonal disconnect shifter shaft bearing [A]

1шт.

For tractors equipped with seasonal disconnect.

1шт.

34

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Seasonal disconnect lever shaft [A]

1шт.

For tractors equipped with seasonal disconnect.

1шт.

35

359152R11

BAR

LEVER, seasonal disconnect coupling shifter, w/shaft [A]

1шт.

For tractors equipped with seasonal disconnect.

1шт.

271505

BODY

hex., 7/16-20NF [A]

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

[A] Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, [A] 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, [A] 7/16"

1шт.

36

359912R1

COUPLING

power take-off driven shaft (Not used on tractors equipped with seasonal disconnect) (For International 300 Utility Tractor) (S/N 22896 up) [A]

1шт.

36

359912R1

COUPLING

power take-off driven shaft (Not used on tractors equipped with seasonal disconnect) (For International 350 Series Tractor) (S/N 501 up) [A]

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, [A] 1/4" x 1 3/4", Slotted

1шт.
