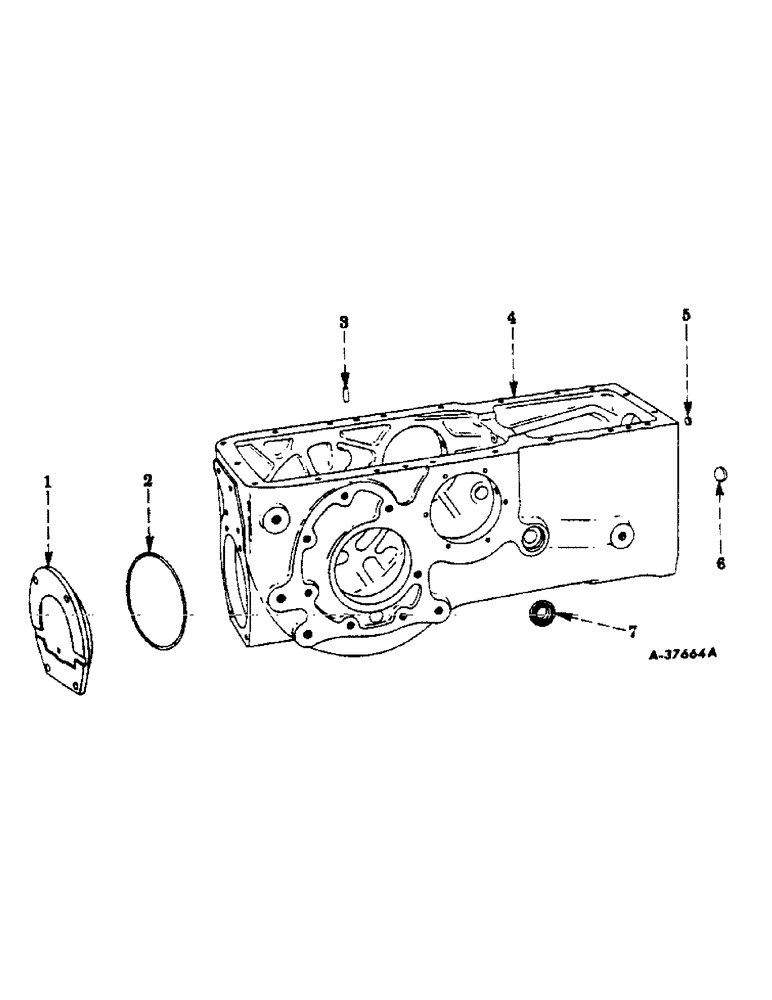

Запчасти Case IH 300 (225) - CHASSIS, REAR FRAME (12) - CHASSIS

1

358841R11

COVER, power take-off opening, w/ring, 358842R1 (Not used on tractors equipped with power take-off)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

358842R1

RING

seal, power take-off opening cover

1шт.

3

48651D

DOWEL, rear frame cover

2шт.

4

360552R95

FRAME, rear, assembly, Composed Of

1шт.

48651D

DOWEL

3шт.

360553R3

FRAME (NSS)

1шт.

581646R91

SEAL

OIL SEAL

2шт.

103879

PLUG

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

1шт.

103870

PLUG

1шт.

361314R1

PLUG

1шт.

45361D

PLUG

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8"

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

103870

PLUG, pipe, sq-hd., C.I., 1"

1шт.

5

45361D

PLUG

cup vent hole (Not used on tractors equipped with independent power take-off drive or torque amplifier)

1шт.

6

361314R1

PLUG, cup, reverse idler shaft (Not used on tractors equipped with independent power take-off drive or torque amplifier)

1шт.

7

581646R91

SEAL

OIL SEAL, brake operating shaft (Will work for 360076R92 and 364471R91)

2шт.
