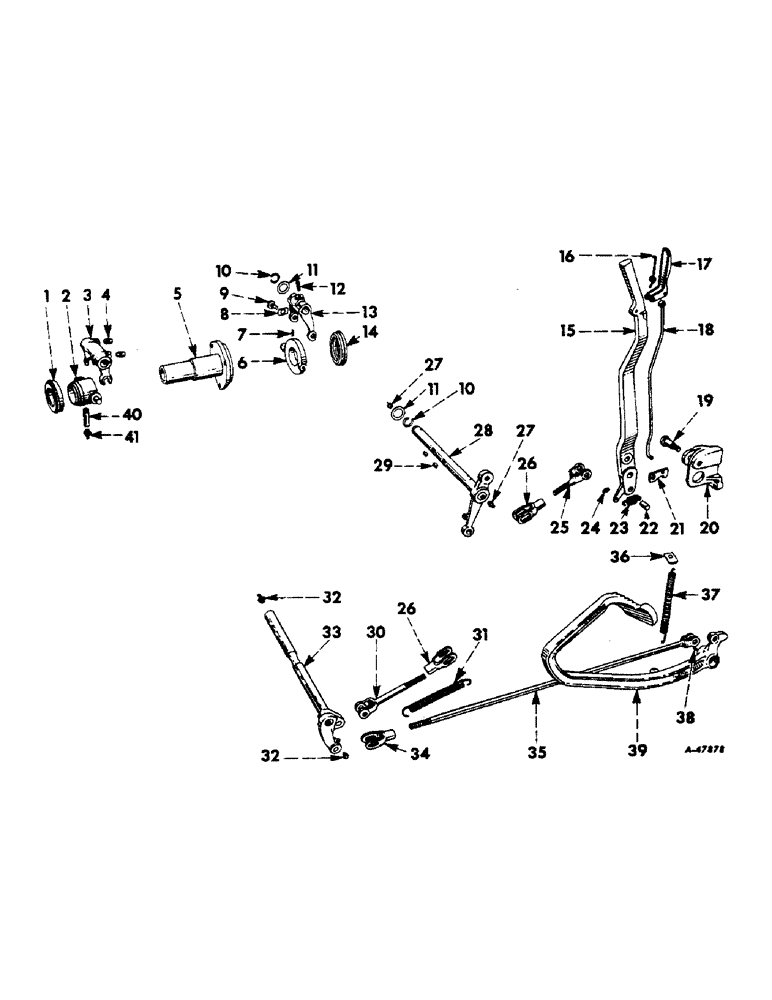

Запчасти Case IH 300 (221) - CHASSIS, CLUTCH CONTROLS & TORQUE AMPLIFIER CONTROLS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
59879D
BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W
ball (Engine clutch release) (Will work for 360502R91 or 363291R91)
1шт.
1
365865R91
BEARING ASSY,3.812" ID x 2.26" OD x 0.807"
ball (Engine clutch release) (Will work for 360502R91 or 363291R91)
1шт.
1
365866R91
THRUST BEARING
ball (Engine clutch release) (Will work for 360502R91 or 363291R91)
1шт.
2
360501R2
SLEEVE CYLINDER
SLEEVE, clutch release
1шт.
3
360503R1
FORK
clutch release
1шт.
NLS
NO LONGER SERVICED
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
4
41116D
KEY
clutch release fork
2шт.
5
360500R1
CARRIER, clutch release sleeve (For tractors without independent power take-off drive or torque amplifier)
1шт.
5
360657R22
CAGE, power take-off drive shaft bearing, w/oil seal, 362119R93 (Illustrated with "Power Take-Off Drive") (For tractors equipped with independent power take-off drive or torque amplifier - See Note S)
1шт.
NLS
NO LONGER SERVICED
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
6
359900R1
RING
SLEEVE, torque amplifier clutch release (See Note A)
1шт.
7
359901R1
SPRING
torque amplifier clutch release sleeve (See Note A)
2шт.
8
359903R1
LOCK, pivot, torque amplifier clutch release sleeve (See Note A)
2шт.
9
369904R1
PIVOT, torque amplifier clutch release sleeve (See Note A)
2шт.
10
359909R1
RING
RETAINER, torque amplifier clutch release shaft (See Note A)
2шт.
11
359908R1
THRUST WASHER
torque amplifier clutch release shaft (See Note A)
2шт.
12
359906R1
SCREW
lock, torque amplifier clutch release fork (See Note A)
1шт.
218438
NUT, jam, hex., 3/8-16NC (See Note A)
1шт.
13
360653R1
NO LONGER SERVICED
FORK, torque amplifier clutch release (See Note A)
1шт.
14
362028R91
BALL BEARING
BEARING, ball, thrust (Torque amplifier clutch release) (See Note A)
1шт.
15
362839R11
HANDLE, torque amplifier operating, w/fitting, 443566 (See Note A)
1шт.
16
359920R2
SPRING
torque amplifier control grip (See Note A)
1шт.
17
359921R1
GRIP, torque amplifier operating handle pawl (See Note A)
1шт.
359922R1
PIN
torque amplifier operating handle grip (See Note A)
2шт.
18
362842R11
ROD, torque amplifier operating handle pawl (See Note A)
1шт.
103361
PIN, SPLIT (COTTER)
PIN, cotter, 1/16 x 1/2" (See Note A)
1шт.
95-11028
WASHER,1/4"
plain, 9/32" ID x 5/8" OD x No. 16 ga. (See Note A)
1шт.
19
362841R1
BOLT
torque amplifier operating handle pivot (See Note A)
1шт.
131488
NUT, hex., low crown, 1/2-20NF (See Note A)
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, (See Note A) 1/2"
1шт.
20
362838R1
RATCHET, torque amplifier operating handle (See Note A)
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
cap, hex-hd., 3/8-16NC x 7/8" (See Note A)
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, (See Note A) 3/8"
2шт.
21
359925R3
PAWL
torque amplifier operating handle (See Note A)
1шт.
22
141281
PIN, dowel, 1/2 x 7/8" (Handle stop pin) (See Note A)
1шт.
23
362843R1
SPRING
torque amplifier operating handle return (See Note A)
1шт.
24
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, lubrication, straight, drive type, 3/16" (Optional with 273354) (See Note A)
1шт.
24
273354
SHEAVE
FITTING, lubrication, straight, drive type, 3/16" (Optional with 443566) (See Note A)
1шт.
25
364116R1
CRADLE
CLEVIS, torque amplifier clutch control rod end (See Note A)
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), (See Note A) 1/8" x 1"
1шт.
362840R1
AXLE PIN
PIN, torque amplifier control rod end clevis (See Note A)
1шт.
52974V
OIL SEAL
WASHER, plain, 33/64" ID x 7/8" OD x No. 16 ga. (See Note A)
1шт.
26
359928R1
YOKE, torque amplifier clutch operating (See Note A)
2шт.
114496
HOURMETER,Jam, 1/2"-20, G5
NUT, jam, hex., 1/2-20NF (See Note A)
2шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), (See Note A) 1/8" x 1"
2шт.
359929R1
PIN
torque amplifier clutch operating yoke (See Note A)
2шт.
11002VA
WASHER
plain, 17/32" ID x 7/8" OD x No. 16 ga. (See Note A)
4шт.
27
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, (Optional with 119512) (See Note A) 1/8"-27 x .66 lg
2шт.
27
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, lubrication, straight, 1/8" (Optional with 109461) (See Note A)
2шт.
28
365960R91
SHAFT
torque amplifier clutch release, w/lever (See Note A)
1шт.
29
NLS
NO LONGER SERVICED
KEY, Woodruff, 5/32 x 3/4" (See Note A)
2шт.
30
360674R11
ROD, engine clutch to torque amplifier clutch, w/clevis (See Note A)
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), (See Note A) 1/8" x 1"
1шт.
114787
AXLE PIN
PIN, rod end, dld., 1/2 x 1-27/64" (See Note A)
1шт.
31
363630R1
SPRING
torque amplifier clutch release lever (See Note A) (For International 300 Utility Tractor) (S/N 31927 up)
1шт.
31
363630R1
SPRING
torque amplifier clutch release lever (See Note A) (For International 350 Utility Tractor) (S/N, Serial Range: 501-1949)
1шт.
31
360677R1
SPRING
torque amplifier clutch release lever (See Note A) (For International 350 Utility Tractor) (S/N 1950 up)
1шт.
32
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, (Optional with 119512) 1/8"-27 x .66 lg
2шт.
32
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, lubrication, straight, 1/8" (Optional with 109461)
2шт.
33
360504R11
SHAFT, engine clutch release, w/lever
1шт.
34
213-318
CLEVIS
adjustable rod end, 1/2-20NF
1шт.
114496
HOURMETER,Jam, 1/2"-20, G5
NUT, jam, hex., 1/2-20NF
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
114787
AXLE PIN
PIN, rod end, dld., 1/2 x 1-27/64"
1шт.
35
365965R11
ROD, engine clutch operating w/clevis
1шт.
NLS
NO LONGER SERVICED
PIN, cotter, 1/8 x 3/4"
1шт.
114787
AXLE PIN
PIN, rod end, dld., 1/2 x 1-27/64"
1шт.
36
365964R1
ANCHOR, clutch pedal return spring (On rear frame cover attaching screw)
1шт.
37
365963R1
SPRING
clutch pedal return
1шт.
38
66584D
FITTING
lubrication, straight, drive type, 3/16"
1шт.
39
365962R1
PEDAL, clutch
1шт.
40
365720R1
PIPE
grease, clutch release bearing (Used only with sleeve, 360501R2 - has threaded hole) (For International 350 Series Utility Tractor) (S/N 1220 up)
1шт.
41
109368
FITTING, lubrication, straight, 5/16-32NF (Optional with Q3618) (Used with pipe - ref. No. 40) (For International 350 Series Utility Tractor) (S/N 1220 up)
1шт.
41
Q3618
LUBE NIPPLE,5/16"-32 x .66 lg
FITTING, lubrication, straight, 5/16-32NF (Optional with 109368) (Used with pipe - ref. No. 40) (For International 350 Series Utility Tractor) (S/N 1220 up)
1шт.
366442R92
1шт.
PACKAGE, field improvement, clutch pedal and linkage (Provides reduced clutch pedal pressure linkage parts for International 300 Utility Tractors with torque amplifier) (For International 300 Utility Tractor) (S/N 501 to 31926), Consists Of ref. Nos. 33-39 inclusive with attaching parts, also
1шт.
365971R1
BAR
BRACKET
1шт.
365974R1
BRACKET
1шт.
365966R91
MUFFLER
1шт.
365966R91GV
MUFFLER
Value, Muffler
1шт.
365970R1
TUBE
PIPE
1шт.
365972R1
PIPE
1шт.
157732
SCREW
3шт.
365967R11
SHIELD
1шт.
62036R1
SPACER
1шт.
365973R1
SUPPORT
1шт.
115547
LOCK WASHER,Int Tooth, 1/4"
WASHER, LOCK, Int Tooth, 1/4"
3шт.
366443R92
1шт.
PACKAGE, field improvement clutch pedal and linkage (Provides reduced clutch pedal pressure linkage parts for International 300 Utility Tractors equipped with torque amplifier) (For International 300 Utility Tractor) (S/N 501 to 31926), Consists Of ref. Nos. 27, 28, 33-39 inclusive with attaching parts, also
1шт.
365971R1
BAR
BRACKET
1шт.
365974R1
BRACKET
1шт.
364116R1
CRADLE
CLEVIS
1шт.
365966R91
MUFFLER
1шт.
114496
HOURMETER,Jam, 1/2"-20, G5
NUT
2шт.
114787
AXLE PIN
PIN
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
365972R1
PIPE
1шт.
365970R1
TUBE
PIPE
1шт.
360674R11
ROD
1шт.
157732
SCREW
3шт.
365967R11
SHIELD
1шт.
62036R1
SPACER
1шт.
360677R1
SPRING
1шт.
365973R1
SUPPORT
1шт.
115547
LOCK WASHER,Int Tooth, 1/4"
WASHER, LOCK, Int Tooth, 1/4"
3шт.
Выбрано товаров: 108
