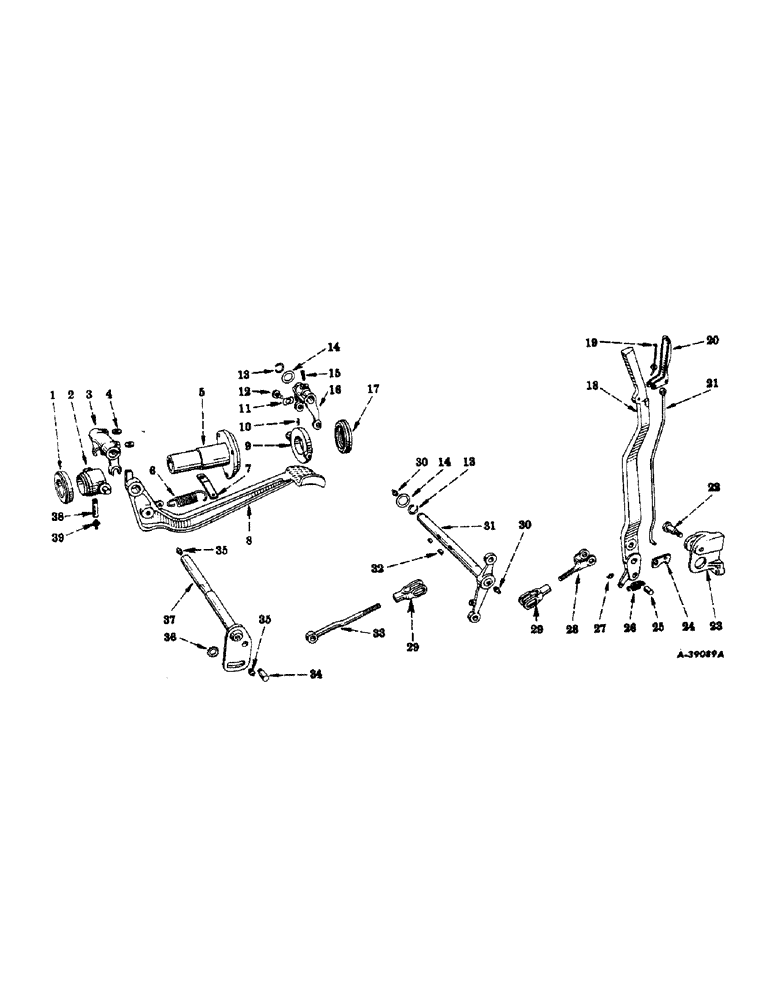

Запчасти Case IH 300 (218) - CHASSIS, CLUTCH CONTROLS AND TORQUE AMPLIFIER CONTROLS, FOR INTL 300 UTILITY TRACTORS 501 TO 31926 (12) - CHASSIS

1

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

ball, ID-2.260, OD-3.5, Thk-.725/.735 (Engine clutch release) (Will work for 360502R91 or 363291R91)

1шт.

1

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

ball, ID-2.375, OD-3.75, Thk-.740 (Engine clutch release) (Will work for 360502R91 or 363291R91)

1шт.

1

365866R91

THRUST BEARING

ball, ID-2.260, OD-3.5, Thk-.725/.735 (Engine clutch release) (Will work for 360502R91 or 363291R91)

1шт.

2

360501R1

SLEEVE

clutch release

1шт.

3

360503R1

FORK

clutch release

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

41116D

KEY

clutch release fork

2шт.

5

360500R1

CARRIER, clutch release sleeve (Not used on tractors, equipped with independent power take-off drive or toque amplifier)

1шт.

5

360657R22

CAGE, power take-off drive shaft bearing, w/oil seal, 362119R91 (Illustrated with "Power Take-Off Drive") (For tractors equipped with independent power take-orff drive or torque amplifier)

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

363630R1

SPRING

clutch pedal return

1шт.

7

363631R2

BRACKET, clutch pedal return spring (Not used on tractors equipped with torque amplifier)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

361680R2

PEDAL, clutch

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

121303

SCREW, set, sq-hd., 3/8-16NC x 1-5/8"

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8" (Clutch adjusting screw)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

138350R1

WASHER

clutch adjusting screw (Will work for 103343 and 364935R1)

1шт.

9

359900R1

RING

SLEEVE, torque amplifier clutch release (See Note A)

1шт.

10

359901R1

SPRING

torque amplifier clutch release sleeve (See Note A)

2шт.

11

359903R1

LOCK, pivot, torque amplifier clutch release sleeve (See Note A)

2шт.

12

359904R1

PIVOT

torque amplifier clutch release sleeve (See Note A)

2шт.

13

359909R1

RING

RETAINER, torque amplifier clutch release shaft (See Note A)

2шт.

14

359908R1

THRUST WASHER

torque amplifier clutch release shaft (See Note A)

2шт.

15

359906R1

SCREW

lock, torque amplifier clutch release fork (See Note A)

1шт.

218438

NUT, jam, hex., 3/8-16NC (See Note A)

1шт.

16

360653R1

NO LONGER SERVICED

FORK, torque amplifier clutch release (See Note A)

1шт.

17

362028R91

BALL BEARING

BEARING, ball, thrust (Torque amplifier clutch release) (See Note A)

1шт.

18

362839R11

HANDLE, torque amplifier operating, w/fitting, 443566 (See Note A)

1шт.

19

359920R2

SPRING

torque amplifier control grip (See Note A)

1шт.

20

359921R1

GRIP, torque amplifier operating handle pawl (See Note A)

1шт.

359922R1

PIN

torque amplifier operating handle pawl grip (See Note A)

2шт.

149505

SPRING, retainer, 3/16" cd-pltd., (See Note A)

2шт.

21

362842R11

ROD, torque amplifier operating handle pawl (See Note A)

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2" (See Note A)

1шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x No. 16 ga. (See Note A)

1шт.

22

362841R1

BOLT

torque amplifier operating handle pivot (See Note A)

1шт.

131488

NUT, hex., low crown, 1/2-20NF (See Note A)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (See Note A) 1/2"

1шт.

23

362838R1

RATCHET, torque amplifier operating handle (See Note A)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (See Note A)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

2шт.

24

359925R3

PAWL

torque amplifier operating handle (See Note A)

1шт.

25

141281

PIN, dowel, 1/2 x 7/8" (Handle stop pin) (See Note A)

1шт.

26

362843R1

SPRING

torque amplifier operating handle return (See Note A)

1шт.

27

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (Optional with 273354) (See Note A)

1шт.

27

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (Optional with 443566) (See Note A)

1шт.

28

364116R1

CRADLE

CLEVIS, torque amplifier clutch control rod end (See Note A)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (See Note A) 1/8" x 1"

1шт.

362840R1

AXLE PIN

PIN, torque amplifier control rod end clevis (See Note A)

1шт.

52974V

OIL SEAL

WASHER, plain, 33/64" I.D. x 7/8" O.D. x No. 16 ga. (See Note A)

1шт.

29

359928R1

YOKE, torque amplifier clutch operating (See Note A)

2шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF (See Note A)

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (See Note A) 1/8" x 1"

2шт.

359929R1

PIN

torque amplifier clutch operating yoke (See Note A)

2шт.

11002VA

WASHER

plain, 17/32" I.D. x 7/8" O.D. x No. 16 ga. (See Note A)

4шт.

30

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (See Note A) 1/8"-27 x .66 lg

2шт.

30

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461) (See Note A)

2шт.

31

362836R91

SHAFT, torque amplifier clutch release, w/lever (See Note A)

1шт.

32

NLS

NO LONGER SERVICED

KEY, Woodruff, 5/32 x 3/4" (See Note A)

2шт.

33

362844R11

ROD, clutch release lever to torque amplifier lever (See Note A)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (See Note A) 1/8" x 1"

1шт.

114787

AXLE PIN

PIN, rod end, dld., 1/2 x 1-27/64" (See Note A)

1шт.

557268R1

WASHER

plain, 17/32" I.D. x 3/4" O.D. x No. 16 ga. (See Note A)

1шт.

34

362927R1

PIN, clutch release lever to torque amplifier lever rod (See Note A)

1шт.

35

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) 1/8"-27 x .66 lg

2шт.

35

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461)

2шт.

36

362928R1

WASHER, clutch adjusting screw lock (Between clutch release lever and clutch pedal)

1шт.

37

362057R91

SHAFT, clutch release, w/lever

1шт.

38

365720R1

PIPE

grease, clutch release bearing (Used only with sleeve, 360501R92 - has threaded hole)

1шт.

39

109368

FITTING, lubrication, straight, 5/16-32NF (Optional with Q3618) (Used with pipe - ref. 38)

1шт.

39

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, lubrication, straight, 5/16-32NF (Optional with 109368) (Used with pipe - ref. 38)

1шт.
