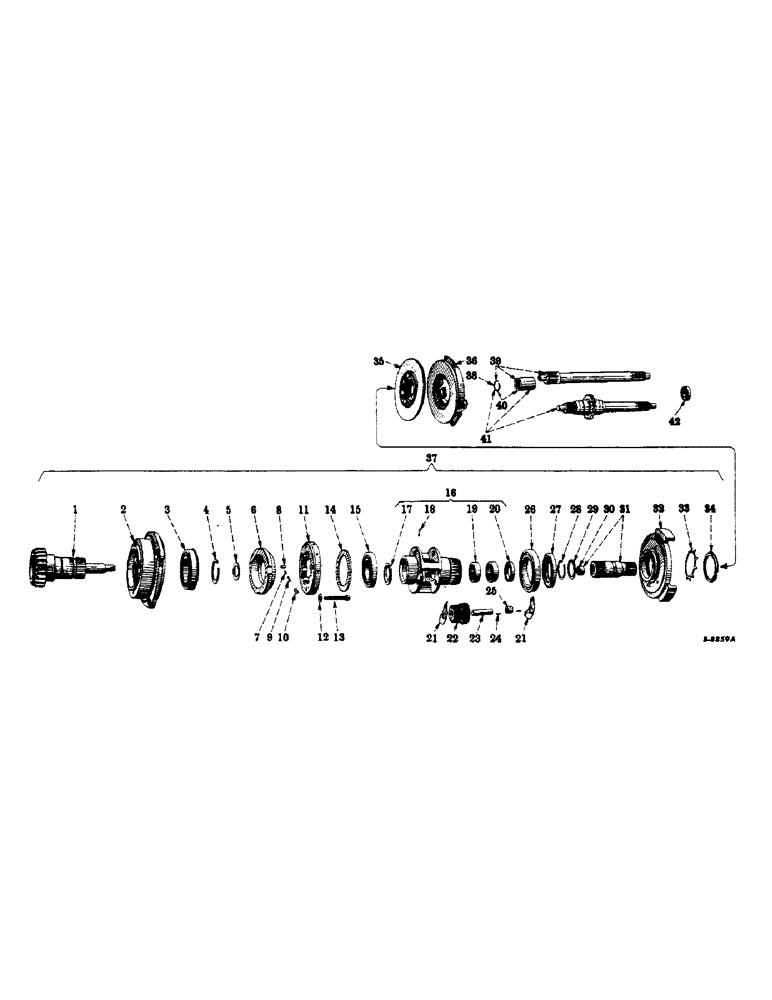

Запчасти Case IH 300 (214) - CHASSIS, TORQUE AMPLIFIER (12) - CHASSIS

1

362835R1

GEAR

SHAFT, transmission drive, w/integral sun gear (20 teeth) and transmission driving gear (28 teeth) (Not included in torque amplifier, assembly)

1шт.

1

361406R1

1шт.

SHAFT, transmission drive, w/integral sun gear (20 teeth) belt pulley driving gear (35 teeth) and transmission driving gear (28 teeth) (Not illustrated) NOTE - This part is included in the torque amplifier assembly that is also used on Farmall 300 Series Tractors.

1шт.

2

360643R1

BEARING ASSY,3.9366" ID x 3"

transmission drive shaft bearing

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

ST266

BALL BEARING

BEARING, ball (Transmission drive shaft)

1шт.

4

358059R1

SNAP RING

RING, snap, transmission drive shaft bearing

1шт.

5

359891R1

THRUST WASHER,29.21mm ID x 45.97mm OD x 2.39mm Thk

thrust, driving primary and driven secondary sun gear

1шт.

6

360651R2

SPACER

WASHER, thrust, overrunning clutch roller, rear

1шт.

7

361287R1

PIN,4.37mm OD x 25.4mm L

overrunning clutch

8шт.

8

359885R2

ROLLER

overrunning clutch (Non-cr-pltd.) (See Note A) (Not included in torque amplifier assembly) (S/N, Serial Range: 501-25258)

8шт.

8

365403R1

ROLL

ER, overrunning clutch (Cr-pltd.) (See Note A) (S/N 25259 up)

8шт.

9

361286R1

SPRING

overrunning clutch

8шт.

10

361285R1

PLUG

overrunning clutch

8шт.

11

365402R11

RAMP

bearing carrier and overrunning clutch, assembly (Cr-pltd. ramp) (Will work for non-cr-pltd. ramp, 361284R11), Composed Of

1шт.

361287R1

PIN,4.37mm OD x 25.4mm L

8шт.

361285R1

PLUG

8шт.

365402R1

RAMP

(NSS)

1шт.

365403R1

ROLL

ER

8шт.

361286R1

SPRING

8шт.

12

360232R1

RING

retaining, bearing carrier screw

4шт.

13

360652R1

SCREW, bearing carrier (Optional with 365615R1)

4шт.

13

365615R1

SCREW

bearing carrier (Optional with 360652R1)

4шт.

14

363666R1

THRUST WASHER

thrust, overrunning clutch roller, front

1шт.

15

ST589

BALL BEARING,73.12mm ID x 106.36mm OD x 13.16mm W

BEARING, ball (Planet carrier, rear)

1шт.

16

361281R12

CARRIER

planet, assembly, Composed Of

1шт.

359950R91

NEEDLE BEARING

BEARING

2шт.

361281R1

CARRIER (NSS)

1шт.

359951R92

SEAL

OIL SEAL

1шт.

359882R1

WASHER

SPACER

1шт.

17

359882R1

WASHER

SPACER, planet carrier

1шт.

18

17046R1

LOCK PIN,1/8" x 1 1/8", Slotted

Pin, (planet gear shaft lock) 1/8" x 1 1/8", Slotted

3шт.

19

359950R91

NEEDLE BEARING

BEARING, needle

2шт.

20

359951R92

SEAL

OIL SEAL, planet carrier

1шт.

21

359890R2

SUPPORT

PLATE, thrust, planet gear

6шт.

22

362005R92

WHEEL

SET, planet gear (23 and 28 teeth) (Consists of three gears)

1шт.

23

361282R2

SHAFT

planet gear

3шт.

24

364634R91

PIN

SET, planet gear bearing needle rollers (Consists of 138 rollers) (Will work for (138) 359954R1)

1шт.

25

359888R1

SPACER

planet gear bearing

3шт.

26

ST562

BALL BEARING,75mm ID x 115mm OD x 20mm W

BEARING, ball (Planet carrier, front)

1шт.

27

361248R92

OIL SEAL

OIL SEAL, planet carrier front bearing

1шт.

28

359894R1

RING, SNAP

primary sun gear washer

1шт.

29

359893R1

THRUST WASHER,43.66mm ID x 57.15mm OD x 2.39mm Thk

thrust, primary sun gear

1шт.

30

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

1шт.

31

361283R21

SUN GEAR

GEAR, primary sun (23 teeth), w/bearing, 359955R91

1шт.

32

359895R3

RETAINER

CARRIER, torque amplifier clutch (Not included in torque amplifier, assembly)

1шт.

33

359896R2

LOCK NUT

LOCK, torque amplifier clutch carrier nut

1шт.

34

359897R1

NUT

LOCK, torque amplifier clutch carrier

1шт.

35

367910R91

DISC

driven, clutch, assembly (For components see list of parts under details of "Clutch 7")

1шт.

36

360215R93

PLATE

clutch, pressure, assembly (For components see list of parts under details of "Clutch 7")

1шт.

359899R1

BOLT,1/4" - 20 x 9/16", Gr 2

SCREW, clutch back plate

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

37

363854R93

AMPLIFIER, torque, assembly (Composed of reference Nos. 1-34 inclusive with attaching parts, less reference No. 32)

1шт.

38

364411R1

SPRING

RING, snap, torque amplifier drive shaft coupling (Used only in couplings with internal groove for snap ring)

1шт.

39

360676R21

SHAFT

torque amplifier drive, w/coupling, 364432R91 (For tractors equipped with torque amplifier with independent power take-off drive)

1шт.

40

364432R91

SLEEVE CYLINDER

COUPLING, torque amplifier drive shaft, w/ring, 364411R1 (Will work for 362568R1)

1шт.

41

363475R12

SHAFT, torque amplifier drive, w/integral power take-off drive gear (19 teeth) and coupling, 364432R91 (For tractors equipped with torque amplifier with transmission driven power take-off drive)

1шт.

42

ST575

BEARING, BALL,20mm ID x 52mm OD x 15mm W

thrust (Torque amplifier drive shaft pilot)

1шт.
