(213) - CHASSIS, CLUTCH, 10 1/2 INCH, ROCKFORD

Запчасти Case IH 300 (213) - CHASSIS, CLUTCH, 10 1/2 INCH, ROCKFORD (12) - CHASSIS

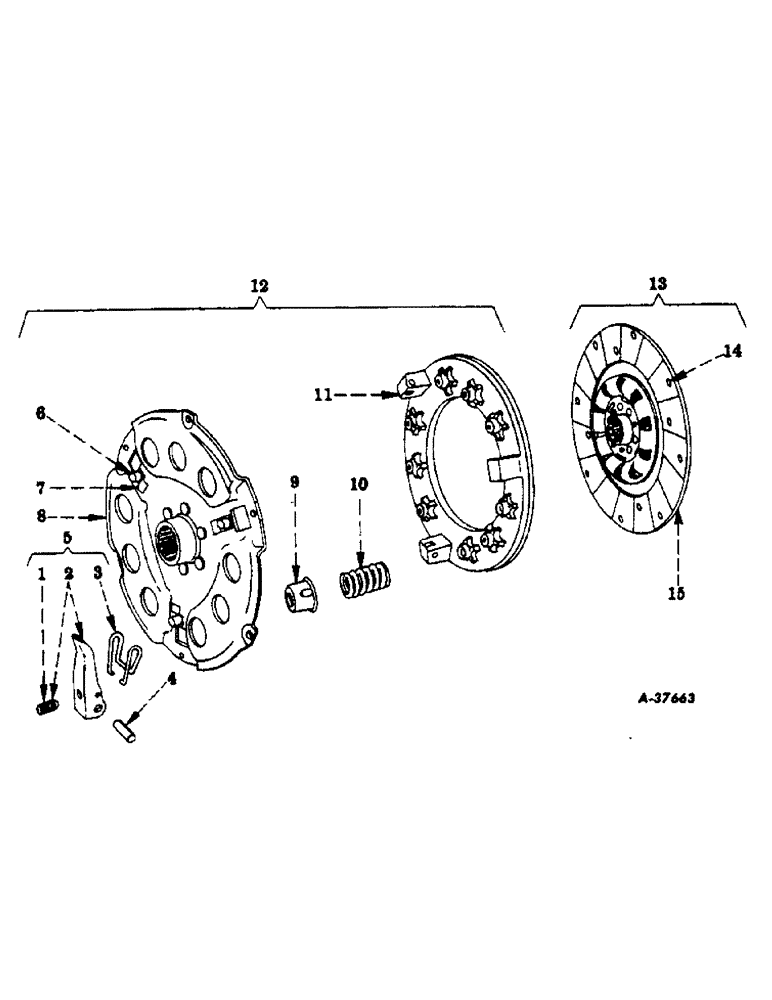

Схема запчастей Case IH 300 - (213) - CHASSIS, CLUTCH, 10 1/2 INCH, ROCKFORD (12) - CHASSIS
12
6
8
10
15
9
13
5
1
4
14
7
2
11
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

353319R1

SCREW, adjusting, lever

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

3шт.

2

360822R91

LEVER

release, clutch, w/nut, 272121 and screw, 353319R1 (See Note A)

3шт.

3

366465R1

SPRING

lever (Will work for 353318R1) (See Note A)

3шт.

4

52846D

PIN

lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

5

360821R91

PACKAGE

lever, assembly, Consists Of

1шт.

360822R91

LEVER

3шт.

52846D

PIN

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

366465R1

SPRING

3шт.

6

358561R1

SEAT, lever adjusting screw

3шт.

7

353313R1

CLIP

lever spring

3шт.

8

360820R92

PLATE

back, w/hub, and three clips, 353313R1, and three 358561R1

1шт.

9

353316R1

SPRING CUP

CUP, clutch pressure spring

9шт.

10

52907D

SPRING

clutch pressure (White color, 9-1/2" coils - order 358593R92) (Regular duty)

9шт.

10

364327R1

SPRING

clutch pressure (Natural color, 7-1/8" coils - used with 360745R92 and R93) (See Notes A and B) (Regular duty)

9шт.

10

358593R92

SPRING

PACKAGE, clutch pressure spring (Consists of nine springs 364327R1) (Will work for nine 52907D) (Regular duty)

1шт.

10

367255R91

PACKAGE, clutch pressure spring (Consists of nine springs) (Heavy duty)

1шт.

11

358558R1

PLATE, pressure

1шт.

12

360745R93

PLATE

clutch pressure, assembly (Optional with 360746R91), Composed Of

1шт.

353316R1

SPRING CUP

CUP

9шт.

358593R92

SPRING

PACKAGE

1шт.

360821R91

PACKAGE

1шт.

360820R92

PLATE

1шт.

358558R1

PLATE

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

360488R92

DISC

driven, clutch, w/facing set, 358592R11 (Regular duty)

1шт.

13

367902R91

CLUTCH

DISC, driven, clutch, w/facings (Heavy duty) (Not illustrated)

1шт.

14

6176V

RIVET, tubular, csk-hd., brs., 3/16 x 1/4"

14шт.

15

358592R11

FACING

SET, clutch (Consists of two facings, w/fourteen rivets, 6176V) (Regular duty)

1шт.
