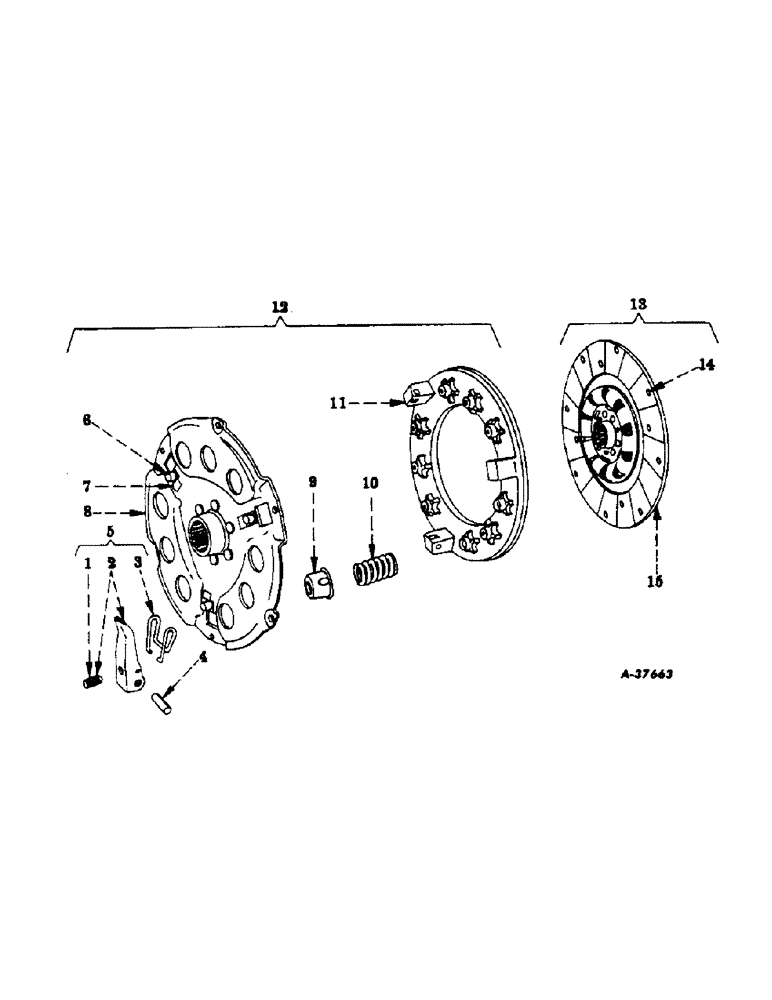

Запчасти Case IH 300 (212) - CHASSIS, CLUTCH, 10-1/2 INCH, IH (12) - CHASSIS

1

358307R1

SCREW, adjusting, lever

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

3шт.

2

360857R11

LEVER

release, clutch, w/nut, 272121, and screw, 358307R1 (See Note A)

3шт.

3

365724R1

SPRING

lever (Will work for 358297R2) (See Note A)

3шт.

4

358298R1

PIN

lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

5

360856R93

LEVER

PACKAGE, lever, assembly, Consists of

1шт.

360857R11

LEVER

3шт.

358298R1

PIN

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

365724R1

SPRING

3шт.

6

360854R1

SEAT, lever adjusting screw

3шт.

7

358295R1

CLIP, lever spring

3шт.

8

360851R91

BACKING PLATE

PLATE, back, w/hub, three clips, 358295R1 and three seats, 360854R1

1шт.

9

358292R1

CUP, clutch pressure spring

9шт.

10

360850R1

SPRING, clutch pressure (Has white identifing stripe) (See Note A) (Regular duty)

9шт.

10

360849R91

PACKAGE

clutch pressure spring (Consists of nine springs, 360850R1) (Regular duty)

1шт.

10

367255R91

PACKAGE, clutch pressure spring (Consists of nine springs) (Heavy duty)

1шт.

11

360848R1

CLUTCH PLATE

PLATE, pressure

1шт.

12

360746R92

CLUTCH PLATE

PLATE, pressure, clutch, assembly (Optional with 360745R93), Composed Of

1шт.

358292R1

CUP

9шт.

360849R91

PACKAGE

1шт.

360856R93

LEVER

PACKAGE

1шт.

360848R1

CLUTCH PLATE

PLATE

1шт.

360851R91

BACKING PLATE

PLATE

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

360488R92

DISC

driven, clutch, w/facing set, 358592R11 (Regular duty)

1шт.

13

367902R91

CLUTCH

DISC, driven, clutch, w/facings (Heavy duty) (Not illustrated)

1шт.

14

61176V

RIVET

tubular, csk-hd., brs., 3/16 x 1/4" (Regular duty)

14шт.

15

358592R11

FACING

SET, clutch (Consists of two facings, w/fourteen rivets, 61176V) (Regular duty)

1шт.
