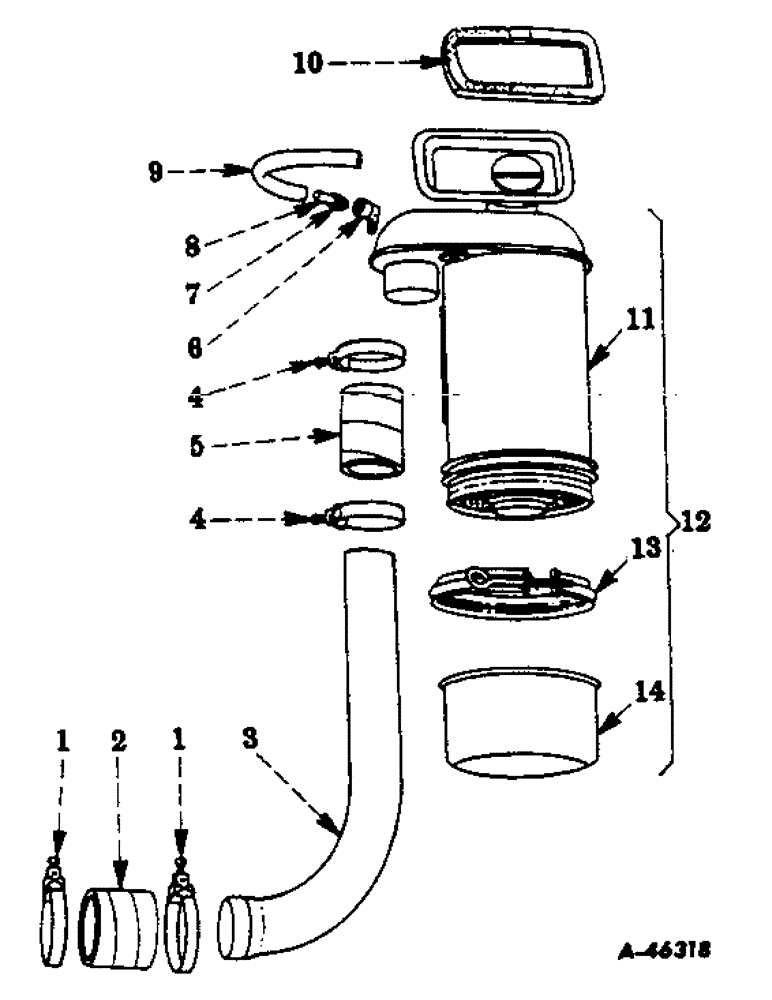

Запчасти Case IH 300 (207) - CHASSIS, AIR CLEANER AND CONNECTIONS, FOR TRACTORS EQUIPPED W/L.P. GAS BURNING ENGINES (12) - CHASSIS

1

45813D

CLAMP

air cleaner pipe hose (Carburetor end)

2шт.

2

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe (Carburetor end) 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

3

364047R1

PIPE, air cleaner

1шт.

4

45715D

CLAMP

air cleaner pipe hose (Air cleaner end)

2шт.

5

362760R1

HOSE, air cleaner pipe (Air cleaner end) (2" I.D. x 3" long x 3 ply)

1шт.

6

365781R1

ELBOW, breather pipe

1шт.

6

365781R11

ELBOW, 365781R1 w/nut, 37165D

1шт.

7

222-504

TUBE NUT,9/16"-20

NUT, hi-duty tube fitting, brs., 3/8" O.D. tubing

1шт.

8

364252R11

PIPE, breather w/nut, 37165D

1шт.

9

364441R1

HOSE, air cleaner to valve cover

1шт.

10

366020R1

GASKET, air cleaner intake

1шт.

11

366452R91

BODY, air cleaner, w/bracket, cover, element and screens

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

365786R91

CLEANER, air, assembly, Composed Of

1шт.

366452R91

BODY

1шт.

52865DA

CLAMP

1шт.

366453R91

CUP

1шт.

13

366453R91

CUP, oil

1шт.

14

52865DA

CLAMP

oil cup retaining w/nut, screw and washer

1шт.
