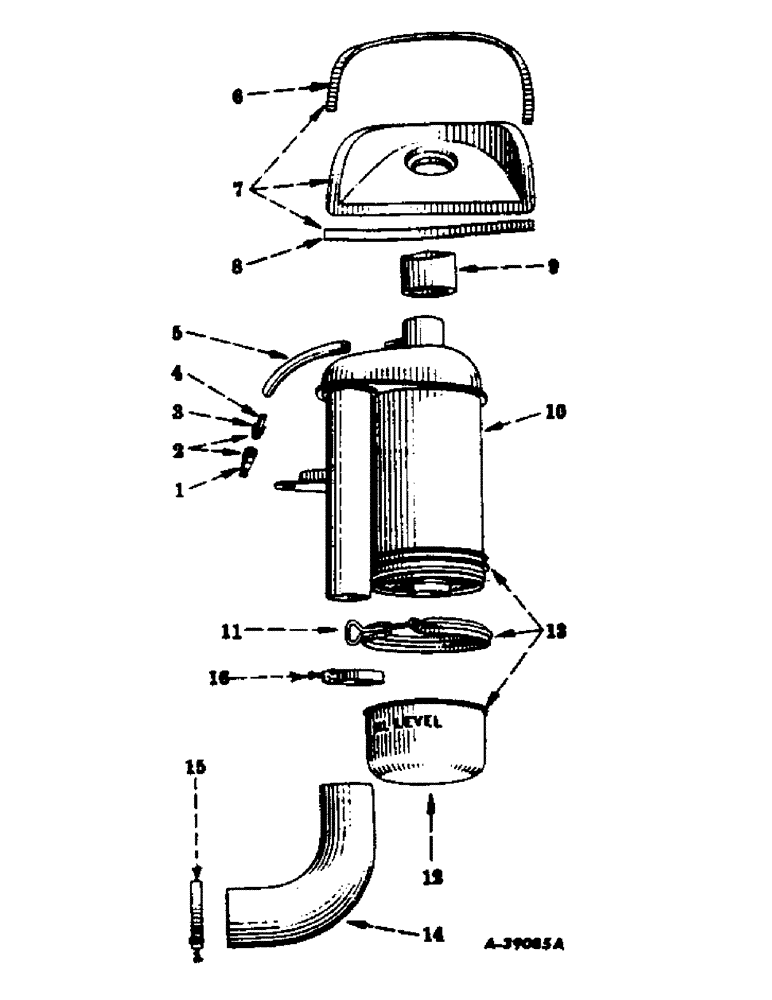

Запчасти Case IH 300 (206) - CHASSIS, AIR CLEANER AND CONNECTIONS, FOR TRACTORS EQUIPPED W/DISTILLATE OR GAS BURNING ENGINES (12) - CHASSIS

1

361815R1

ELBOW, valve cover breather

1шт.

2

361815R11

ELBOW, 361815R1, w/nut, 37165D

1шт.

3

222-504

TUBE NUT,9/16"-20

NUT, hi-duty tube fitting, brs., 3/8" O.D. tubing

1шт.

4

364252R11

PIPE, breather w/nut, 37165D

1шт.

5

362518R1

HOSE, air cleaner to valve cover

1шт.

6

363941R1

GASKET, long, air cleaner intake chamber

1шт.

7

362273R11

CHAMBER, air cleaner intake, w/gasket, 363940R1 and gasket, 363941R1

1шт.

8

363940R1

GASKET, short, air cleaner intake chamber

1шт.

9

363942R1

COLLAR, holding, air intake chamber

1шт.

10

364492R91

BODY, air cleaner, w/cover, element, and screens

1шт.

1763Y

NUT

air cleaner

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x No. 16 ga) 3/8"

1шт.

11

52865DA

CLAMP

oil cup retaining, w/nut, screw, and washer

1шт.

12

362974R91

CUP, oil

1шт.

13

362480R91

CLEANER, air, assembly, Composed Of

1шт.

364492R91

BODY

1шт.

52865DA

CLAMP

1шт.

362974R91

CUP

1шт.

14

361978R1

HOSE,2.25" ID x 5.88", SAE 20R4

- Elbow, Carburetor to air cleaner 2.25" ID x 5.88", SAE 20R4

1шт.

15

45813D

CLAMP

carburetor to air cleaner hose (Carburetor end)

1шт.

16

45715D

CLAMP

carburetor to air cleaner hose (Air cleaner end)

1шт.
