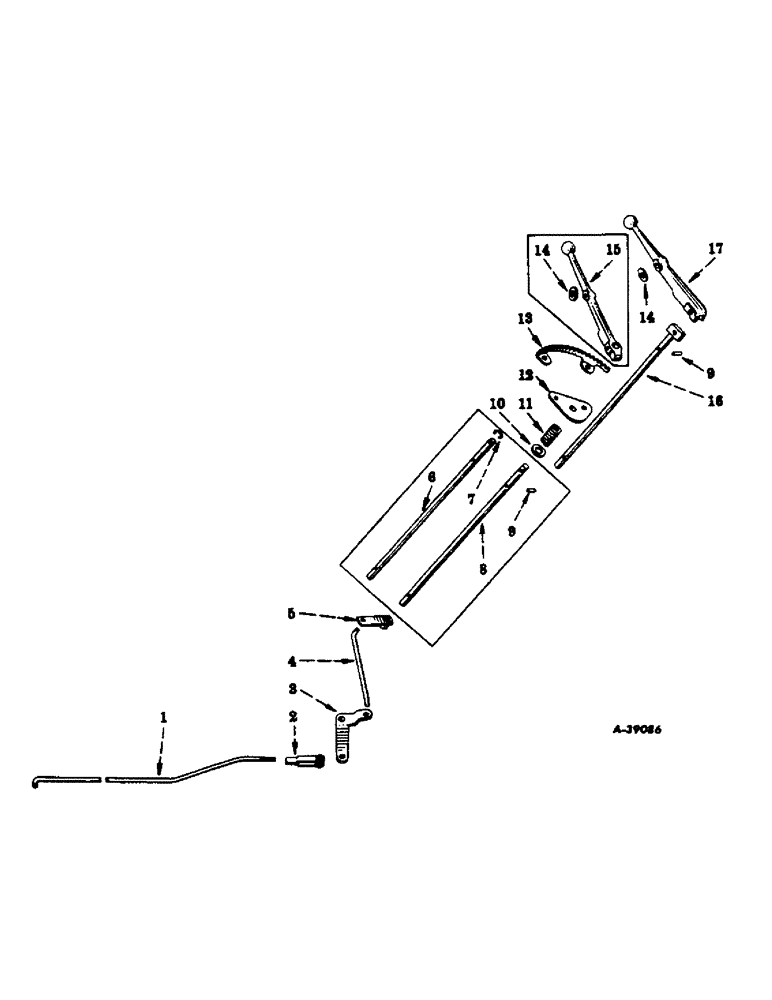

Запчасти Case IH 300 (202) - CHASSIS, ENGINE SPEED CONTROLS, FOR TRACTORS EQUIPPED WITH CARBURETED ENGINES (12) - CHASSIS

1

362424R1

ROD, governor control front (For tractors equipped with distillate or gasoline buring engines)

1шт.

1

365787R1

ROD, front, governor control (Not illustrated) (For tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x No. 16 ga.

1шт.

2

104037

CLEVIS

adjustable rod end, light, 5/16-24NF (For tractors equipped with distillate or gasoline burning engines)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), (Not used on tractors equipped w/foot pedal accelerator) 3/32" x 5/8"

1шт.

327-5094

CLEVIS PIN,5/16" x .940"

PIN, rod end, dld., 5/16 x 13/16" (Not used on tractors equipped w/foot pedal accelerator)

1шт.

2

213-315

CLEVIS

adjustable rod end, short, 5/16-24NF (For tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

327-5094

CLEVIS PIN,5/16" x .940"

PIN, rod end, dld., 5/16"

1шт.

3

367950R11

BELLCRANK, governor control, w/hub (Used on tractors equipped w/foot pedal accelerator)

1шт.

3

362423R11

BELLCRANK, governor control, w/hub (Not used on tractors equipped w/foot pedal accelerator)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

496-21047

WASHER

plain, 15/32" I.D. x 59/64" O.D. x No. 16 ga.

1шт.

4

362422R1

ROD, governor control, center

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x No. 16 ga.

2шт.

5

362421R11

ARM, governor control rear rod, w/hub (Used only with 362418R1 - reference No. 6 or 362418R2 - reference No. 8 - order 364438R91)

1шт.

17157R1

LOCK PIN,5/32" x 3/4", Slotted

Pin, , used only with 362421R11 5/32" x 3/4", Slotted

1шт.

5

364435R91

ARM, governor control rear rod, w/hub (Used only with 364434R1 - reference No. 16)

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

governor control rear rod arm (used only with arm, 364435R91) (not used on tractors equipped w/foot pedal accelerator) 3/16" x 7/8", Coiled

1шт.

5

367947R1

ARM, governor control rear rod (For tractors equipped, w/foot pedal accelerator)

1шт.

6

362418R1

ROD, governor control rear (Rod will groove for snap ring - order 364438R91) (For International 300 Utility Tractor) (S/N, Serial Range: 501-1534)

1шт.

7

362068R1

RING, snap, governor control handle spring (Used only with 362418R1 - reference No. 6)

1шт.

8

362418R2

ROD, governor control, rear (Rod with retaining hole - order 364438R91) (For International 300 Utility Tractor) (S/N, Serial Range: 1535-8014)

1шт.

9

19310R1

PIN,3/32" x 5/8", Coiled

used with 362418R2 - reference No. 8 and 364434R1 and 367949R1 - reference No. 16 3/32" x 5/8", Coiled

1шт.

10

363665R1

WASHER, governor control handle spring retaining (Will work for 615060R1)

1шт.

11

362419R91

SPRING, governor control handle

1шт.

12

362419R91

BEARING, governor control rear rod

1шт.

190252

SCREW, machine, slotted-fil-hd., 1/4-28NF x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

362415R1

SECTOR, governor control

1шт.

103088

NUT,#10-32

hex., No. 10-32NF

2шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

machine, slotted-rd-hd., No. 10-32NF x 1/2"

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

362066R2

KEY, governor control handle

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 3/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

362416R1

HANDLE, governor control (Used only with rod, 362418R1 - reference No. 6 and 362418R2 - reference No. 8 - order 364438R91)

1шт.

17047R1

LOCK PIN,5/32" x 7/8", Slotted

Pin, , used only with 362416R1 5/32" x 7/8", Slotted

1шт.

16

364434R1

ROD, governor control rear (Not used on tractors equipped, w/foot pedal accelerator) (For International 300 Utility Tractor) (S/N 8015 up)

1шт.

16

364434R1

ROD, governor control rear (Not used on tractors equipped, w/foot pedal accelerator) (For International 350 Utility Tractor) (S/N 501 up)

1шт.

16

367949R1

ROD, governor control rear (Used on tractors equipped w/foot pedal accelerator)

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

17

364433R1

HANDLE, governor control (Used only with 364434R1)

1шт.

364436R1

PIN,3/16" x 1", Coiled

used only with 364433R11 3/16" x 1", Coiled

1шт.

364438R91

PACKAGE, governor control, complete (Will work for arm, 362421R11, handle, 362416R1, package, 364355R91, and rod, 362418R1 or 362418R2) (For International 300 Utility Tractor) (S/N 501 to 8014), Consists Of

1шт.

364435R91

ARM

1шт.

364433R1

HANDLE

1шт.

17283R1

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

364434R1

ROD

1шт.

363665R1

WASHER

1шт.
