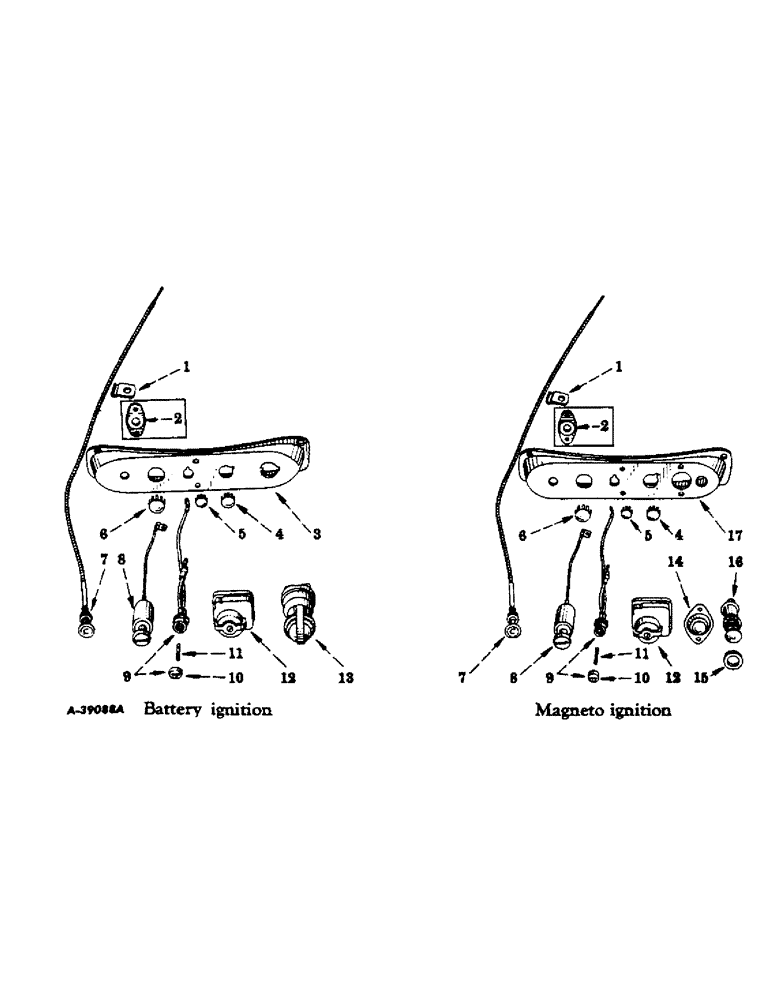

Запчасти Case IH 300 (198) - CHASSIS, ENGINE CONTROLS, FOR INTERNATIONAL 300 UTILITY TRACTORS (12) - CHASSIS

1

362426R1

CLAMP, choke control (On battery to solenoid switch cable clamp screw) (For tractors equipped with distillate or gasoline burning engines)

1шт.

1

355574R1

CLIP

choke control (On steering gear housing trunnion cover attaching screw) (For tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

2

362566R11

BRACKET, choke control mounting, w/two nuts (For International 300 Utility Tractor) (S/N, Serial Range: 501-19823)

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

machine, slotted-rd-hd., No. 10-32NF x 1/2"

2шт.

115545

LOCK WASHER,Int Tooth, #10

WASHER, lock, internal-tooth, No. 10-32NF

2шт.

3

362498R2

PANEL, switch (For tractors equipped with battery ignition)

1шт.

132911

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 5/8"

1шт.

132938

DISC

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 2"

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 3/8"

2шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

4

432600

PLUG, button, chr-pltd., 23/32" (Used to plug hole for lighting switch on tractors not equipped with lighting system)

1шт.

5

432466

BEVEL PINION

PLUG, button, chr-pltd., 17/32" (Used to plug hole for fuse housing on tractors not equipped with lighting system)

1шт.

6

432281

HOLE PLUG BUTTON,29/32"

PLUG, button., chr-pltd., (Used to plug hole for cigarette lighter on tractor not equipped with cigarette lighter) 29/32"

1шт.

7

362425R93

CABLE

CONTROL, choke, w/nut, plunger, tubing and washer (For tractors equipped with distillate or gasoline burning engines)

1шт.

7

365801R92

CABLE

CONTROL, choke, w/nut, plunger, tubing and washer (For tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

8

LIGHTER, cigarette, assembly (Special) (Refer to "Cigarette Lighter" unit)

1шт.

9

362669R91

HOUSING

fuse, w/two cables, knob, 356445R91, nut and washer (See Note A)

1шт.

10

356445R91

KNOB

fuse holder (See Note A)

1шт.

11

106653

FUSE

type AGC, 20 amp. (See Note A) (For tractors equipped with distillate or gasoline burning engines)

1шт.

11

10815V

FUSE

cartridge type (See Note A) (For tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

12

363130R91

SWITCH

lighting, assembly (6 bolt) (For components see list of parts under details of "Lighting Switch") (See Note A) (For tractors equipped with distillate or gasoline burning engines)

1шт.

12

363131R91

SWITCH

lighting (12 volt) assembly (For components see list of parts under details of "Lighting Switch") (See Note A) (For tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

13

361998R93

SWITCH

starting, and ignition lock, assembly (For tractors equipped with battery ignition) (For components see list of parts under details of "Starting And Ignition Lock Switch") (Order switch 300557R91)

1шт.

13

300557R91

SWITCH

starting and ignition lock, assembly (Not illustrated) (Will work for 361998R93)

1шт.

14

255357R91

SWITCH

push button starting, assembly (For components see list of parts under details of "Push Button Starting Switch") (See Note B)

1шт.

15

59109D

SPACER, magneto ignition switch (Used between mounting nut and switch panel) (See Note B)

1шт.

16

54207DB

SWITCH

magneto ignition, assembly (For components see list of parts under details of "Magneto Ignition Switch") (See Note B)

1шт.

17

363861R2

PANEL, switch (See Note B)

1шт.

132911

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 5/8"

1шт.

132938

DISC

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 2"

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 3/8"

2шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.
