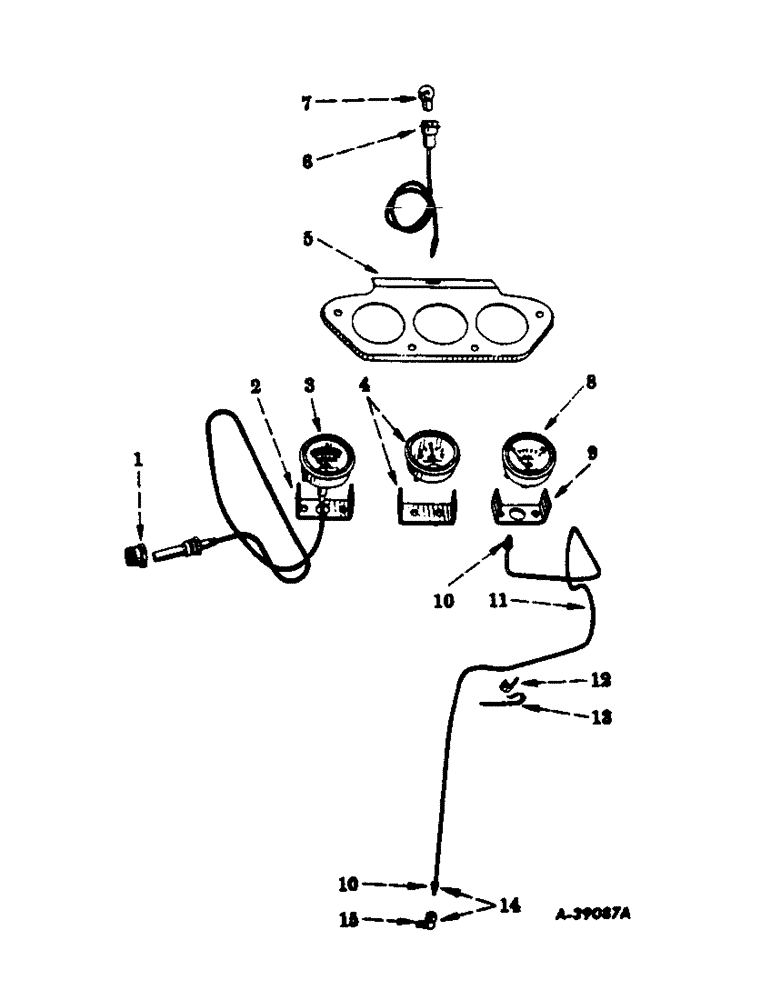

Запчасти Case IH 300 (197) - CHASSIS, INSTRUMENTS AND CONNECTIONS (12) - CHASSIS

1

51510D

BUSHING

reducing, heat indicator element nut

1шт.

2

50417D

CLAMP, heat indicator

1шт.

103089

hex., No. 12-24NC

2шт.

125750

WASHER, lock, external-tooth, No. 12

2шт.

3

362428R91

INDICATOR

temperature, assembly (For carbureted and diesel engine tractors), Composed Of

1шт.

51510D

BUSHING

1шт.

50417D

CLAMP

1шт.

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

372632A1

SPRING

2шт.

125750

WASHER

2шт.

4

360053R91

INDICATOR

charge, w/clamp, six nuts and six washers

1шт.

5

362497R1

PANEL, instrument

1шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

machine, slotted-rd-hd., cd-pltd., No. 10-24NC x 3/8" (For tractors equipped with coarse thread attaching parts)

4шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 3/8" (For tractors equipped with fine thread attaching parts)

4шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

6

363838R91

CABLE

SOCKET, instrument light, w/cable (See Note)

1шт.

7

125588

BULB,#55, Type C-2R, 6V

LAMP, No. 55, 6 volt (See Note) (For tractors equipped with distillate, kerosene or gasoline burning engines)

1шт.

7

A14553

BULB

LAMP, no. 57, 12 volt (See Note) (For tractors equipped with Liquefied Petroleum Gas or diesel burning engines)

1шт.

8

362039R93

GAUGE

oil pressure, w/clamp, 60805D, two nuts, 103089 and two washers, 125750

1шт.

8

362177R93

INDICATOR

GAUGE, oil pressure, w/clamp, 60805D, two nuts, 103089 and two washers, 125750 (For diesel engine tractors)

1шт.

9

60805D

CLAMP, oil pressure indicator

1шт.

103089

hex., No. 12-24NC

2шт.

125750

WASHER, lock, external-tooth, No. 12

2шт.

10

222-500

TUBE NUT,5/16" - 24 NPT

NUT, hi-duty tube fitting, brs., 1/8" O.D. tubing

2шт.

11

362430R11

TUBE

PIPE, oil pressure indicator, w/two nuts, 36092D (For distillate or gasoline burning engine tractors)

1шт.

11

366336R11

PIPE, oil pressure indicator, w/two nuts, 36092D (Not illustrated) (For Liquefied Petroleum Gas burning engine tractors)

1шт.

12

363485R1

CUSHION

oil pressure indicator pipe (For carbureted engine tractors)

1шт.

13

362431R1

CLAMP

oil pressure indicator pipe and heat indicator (On fuel tank front RH mounting screw for distillate or gasoline burning engines)

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(For Diesel or Liquefied Petroleum Gas burning engine tractors) Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (For Diesel or Liquefied Petroleum Gas burning engine tractors) 3/8"

1шт.

13

355097R1

CLIP, heat indicator cable and oil pressure indicator pipe (For diesel engine tractors)

1шт.

102635

NUT,3/8"-16, G5

(For Diesel engine tractors) 3/8"-16, G5

1шт.

14

36637DX

CONNECTOR, ELEC

ELBOW, 36637D, w/nut, 36092D (For carbureted engine tractors)

1шт.

15

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

male pipe, hi-duty tube fitting, brs., 90 degrees, 1/8" O.D. tubing (For carbureted engine tractors)

1шт.
