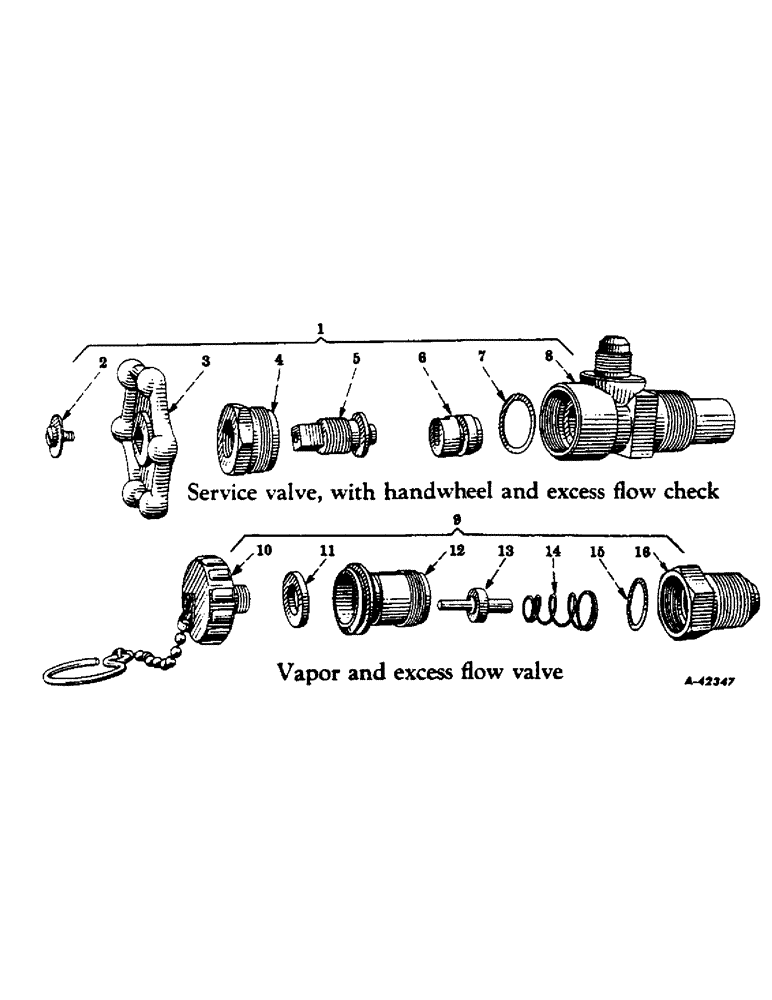

Запчасти Case IH 300 (195) - CHASSIS, VALVES, SERVICE VALVE WITH HANDWHEEL AND EXCESS FLOW CHECK (12) - CHASSIS

1

357069R91

VALVE, service, assembly (Selwyn-Pacific Co.) (Order 109850R91)

1шт.

1

109850R91

VALVE, service, assembly (Bastian Blessing Co.)

1шт.

2

359831R91

FASTENER, "Sems" (Selwyn-Pacific Co.)

1шт.

2

369044R1

FASTENER, "Sems" (Bastian Blessing Co.)

1шт.

3

359832R1

HANDWHEEL (Selwyn-Pacific Co.)

1шт.

3

369043R1

HANDWHEEL (Bastian Blessing Co.)

1шт.

4

359833R1

BONNET (Selwyn-Pacific Co.)

1шт.

4

BONNET (Bastian Blessing Co.) (Not serviced separately order valve assembly)

1шт.

5

359834R1

STEM (Selwyn-Pacific Co.)

1шт.

5

STEM (Bastian Blessing Co.) (Not serviced separately order valve assembly)

1шт.

6

359835R91

SEAT DISC AND RING (Selwyn-Pacific Co.)

1шт.

6

SEAT DISC AND RING (Bastian Blessing Co.) (Not serviced separately order valve assembly)

1шт.

7

359821R1

GASKET (Selwyn-Pacific Co.)

1шт.

7

GASKET (Bastian Blessing Co.) (Not serviced separately order valve assembly)

1шт.

8

BODY, lower (Not serviced separately order valve assembly)

1шт.

9

357064R92

VALVE, vapor and excess flow, assembly (Selwyn-Pacific Co.) (Optional with 109567R91)

1шт.

9

109567R91

VALVE, vapor and excess flow, assembly (Bastian Blessing Co.) (Optional with 357064R92)

1шт.

10

359814R91

CAP, valve w/chain and ring (Selwyn-Pacific Co.), vapor and excess flow valve

1шт.

10

369051R91

CAP, valve w/chain and ring (Bastian Blessing Co.), vapor and excess flow valve

1шт.

11

369815R1

WASHER, vapor and excess flow valve

1шт.

12

359820R1

BODY, upper (Selwyn-Pacific Co.), vapor and excess flow valve

1шт.

12

BODY, upper (Bastian Blessing Co.) (Not serviced separately order valve assembly), vapor and excess flow valve

1шт.

13

359822R91

POPPET (Selwyn-Pacific Co.), vapor and excess flow valve

1шт.

13

369053R91

DISC AND RETAINER (Bastian Blessing Co.), vapor and excess flow valve

1шт.

14

369823R1

SPRING (Selwyn-Pacific Co.), vapor and excess flow valve

1шт.

14

SPRING (Bastian Blessing Co.) (Not serviced separately order valve assembly), vapor and excess flow valve

1шт.

15

359821R1

GASKET (Selwyn-Pacific Co.), vapor and excess flow valve

1шт.

15

GASKET (Bastian Blessing Co.) (Not serviced separately order vale assembly), vapor and excess flow valve

1шт.

16

BODY, lower (Not serviced separately order valve assembly), vapor and excess flow valve

1шт.
